TT Electronics/Power Partners Inc. PAA25-14
- Part No.:
- PAA25-14
- Manufacturer:
- TT Electronics/Power Partners Inc.
- Category:
- AC DC Converters
- Package:
- 4-DIP Module
- Datasheet:
-
PAA25-14.pdf
- Description:
- AC/DC CONVERTER 24V 25W
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
PAA25-14 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TT Electronics/Power Partners Inc.
- Series:
- PAA25 (25W)
- Package/Case:
- 4-DIP Module
- Packaging:
- Box
- Product Status:
- Active
- Type:
- Enclosed
- Number of Outputs:
- 1
- Voltage - Input:
- 90 ~ 305 VAC, 127 ~ 430 VDC
- Voltage - Output 1:
- 24V
- Voltage - Output 2:
- -
- Voltage - Output 3:
- -
- Voltage - Output 4:
- -
- Current - Output (Max):
- 1.042A
- Power (Watts):
- 25 W
- Applications:
- Household Appliances, ITE (Commercial)
- Features:
- Universal Input
- Operating Temperature:
- -40°C ~ 70°C (With Derating)
- Efficiency:
- 87%
- Mounting Type:
- Through Hole
- Size / Dimension:
- 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.5mm x 23.5mm)
- Approval Agency:
- CB, CE, cURus
- Standard Number:
- 60335-1; 60950-1; 62368-1

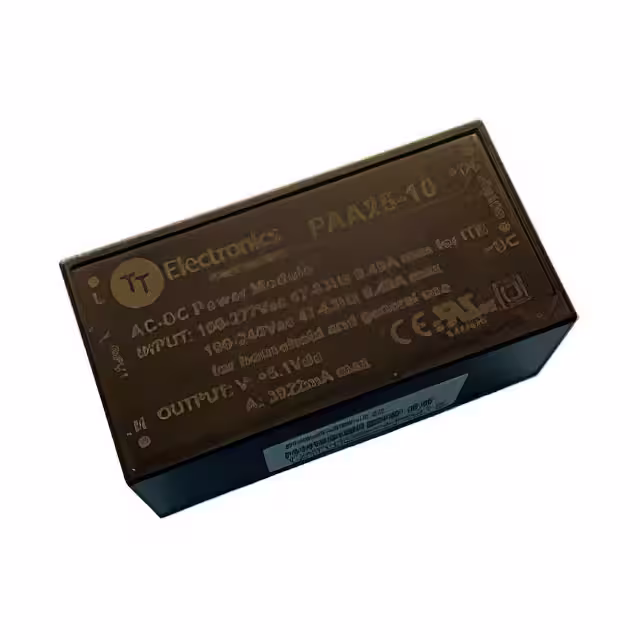

| Image |  |
|
|
 |
| Part Number | PAA25-12 | PAA25-14 | PAA25-10 | PAA25-13 |
| Manufacturer | TT Electronics/Power Partners Inc. | TT Electronics/Power Partners Inc. | TT Electronics/Power Partners Inc. | TT Electronics/Power Partners Inc. |
| Series | PAA25 (25W) | PAA25 (25W) | PAA25 (20W) | PAA25 (25W) |
| Package/Case | 4-DIP Module | 4-DIP Module | 4-DIP Module | 4-DIP Module |
| Packaging | Box | Box | Box | Box |
| Product Status | Active | Active | Active | Active |
| Type | Enclosed | Enclosed | Enclosed | Enclosed |
| Number of Outputs | 1 | 1 | 1 | 1 |
| Voltage - Input | 90 ~ 305 VAC, 127 ~ 430 VDC | 90 ~ 305 VAC, 127 ~ 430 VDC | 90 ~ 305 VAC, 127 ~ 430 VDC | 90 ~ 305 VAC, 127 ~ 430 VDC |
| Voltage - Output 1 | 12V | 24V | 5.1V | 15V |
| Voltage - Output 2 | - | - | - | - |
| Voltage - Output 3 | - | - | - | - |
| Voltage - Output 4 | - | - | - | - |
| Current - Output (Max) | 2.083A | 1.042A | 3.922A | 1.666A |
| Power (Watts) | 25 W | 25 W | 20 W | 25 W |
| Applications | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) | Household Appliances, ITE (Commercial) |
| Features | Universal Input | Universal Input | Universal Input | Universal Input |
| Operating Temperature | -40°C ~ 70°C (With Derating) | -40°C ~ 70°C (With Derating) | -40°C ~ 70°C (With Derating) | -40°C ~ 70°C (With Derating) |
| Efficiency | 88% | 87% | 84% | 88% |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Size / Dimension | 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.5mm x 23.5mm) | 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.5mm x 23.5mm) | 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.5mm x 23.5mm) | 2.07" L x 1.08" W x 0.93" H (52.5mm x 27.5mm x 23.5mm) |
| Approval Agency | CB, CE, cURus | CB, CE, cURus | CB, CE, cURus | CB, CE, cURus |
| Standard Number | 60335-1; 60950-1; 62368-1 | 60335-1; 60950-1; 62368-1 | 60335-1; 60950-1; 62368-1 | - |
