TT Electronics/BI P260P-D2BS20CA500K
- Part No.:
- P260P-D2BS20CA500K
- Manufacturer:
- TT Electronics/BI
- Category:
- Rotary Potentiometers, Rheostats
- Package:
- Datasheet:
-
P260P-D2BS20CA500K.pdf
- Description:
- POT 500K OHM 1/4W PLASTIC LOG
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
P260P-D2BS20CA500K Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TT Electronics/BI
- Series:
- P260
- Packaging:
- Tray
- Product Status:
- Active
- Resistance (Ohms):
- 500k
- Tolerance:
- ±10%
- Power (Watts):
- 0.25W, 1/4W
- Built in Switch:
- None
- Number of Turns:
- 1.0
- Features:
- -
- Taper:
- Logarithmic
- Number of Gangs:
- 2
- Adjustment Type:
- Side Adjustment
- Temperature Coefficient:
- -
- Rotation:
- 295°
- Resistive Material:
- Conductive Plastic
- Termination Style:
- PC Pins
- Actuator Type:
- Slotted
- Actuator Length:
- 0.630" (16.00mm)
- Actuator Diameter:
- 0.250" (6.35mm)
- Bushing Thread:
- 3/8-32
- Mounting Type:
- Panel Mount
| Image |  |
 |
 |
|
|

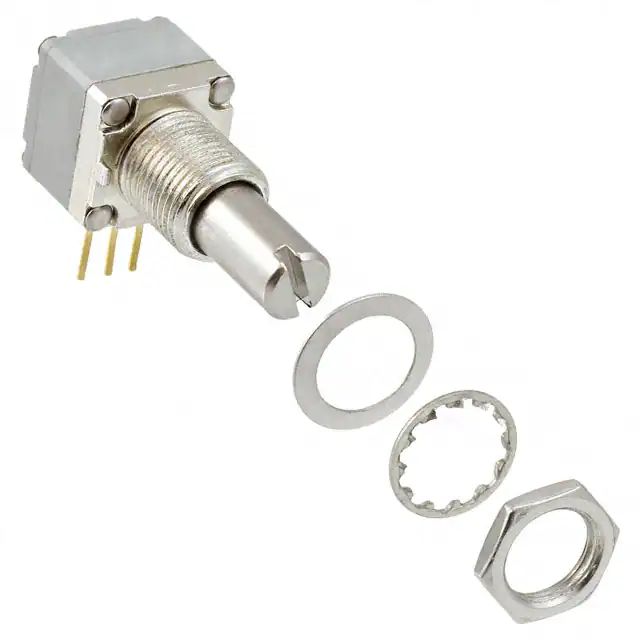

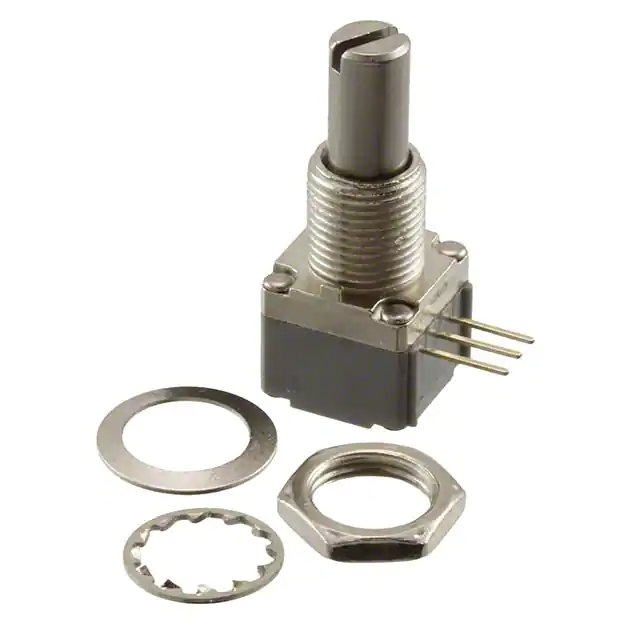

| Part Number | P260P-D1BS3CB100K | P260P-D1BS3CA100K | P260P-D1BF2AB10K | P260P-D1BF2CB10K | P260P-D1BF2CB50K |
| Manufacturer | TT Electronics/BI | TT Electronics/BI | TT Electronics/BI | TT Electronics/BI | TT Electronics/BI |
| Series | P260 | P260 | P260 | P260 | P260 |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Resistance (Ohms) | 100k | 100k | 10k | 10k | 50k |
| Tolerance | ±10% | ±10% | ±10% | ±10% | ±10% |
| Power (Watts) | 0.5W, 1/2W | 0.25W, 1/4W | 0.5W, 1/2W | 0.5W, 1/2W | 0.5W, 1/2W |
| Built in Switch | None | None | None | None | None |
| Number of Turns | 1.0 | 1.0 | 1.0 | 1.0 | 1.0 |
| Features | Sealed | Sealed | Sealed | Sealed | Sealed |
| Taper | Linear | Logarithmic | Linear | Linear | Linear |
| Number of Gangs | 1 | 1 | 1 | 1 | 1 |
| Adjustment Type | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment | Side Adjustment |
| Temperature Coefficient | - | - | - | - | - |
| Rotation | 295° | 295° | 295° | 295° | 295° |
| Resistive Material | Conductive Plastic | Conductive Plastic | Conductive Plastic | Conductive Plastic | Conductive Plastic |
| Termination Style | PC Pins | PC Pins | PC Pins | PC Pins | PC Pins |
| Actuator Type | Slotted | Slotted | Flatted | Flatted | Flatted |
| Actuator Length | 0.787" (20.00mm) | 0.787" (20.00mm) | 0.630" (16.00mm) | 0.630" (16.00mm) | 0.630" (16.00mm) |
| Actuator Diameter | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) | 0.250" (6.35mm) |
| Bushing Thread | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 | 3/8-32 |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
