TT Electronics/BI P170S-FC15BR100K

Name: P170S-FC15BR100K
Brand: TT Electronics/BI
SKU: P170S-FC15BR100K
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: P170S-FC15BR100K

Manufacturer:: TT Electronics/BI

Category:: Rotary Potentiometers, Rheostats

Package:

Datasheet:: P170S-FC15BR100K.pdf

Description:: POT 100K OHM 1/10W PLASTIC LIN

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

P170S-FC15BR100K Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TT Electronics/BI

Series:: P170

Packaging:: Tray

Product Status:: Active

Resistance (Ohms):: 100k

Tolerance:: ±20%

Power (Watts):: 0.1W, 1/10W

Built in Switch:: Rotary, SPST

Number of Turns:: 1.0

Features:: -

Taper:: Linear

Number of Gangs:: 1

Adjustment Type:: User Defined

Temperature Coefficient:: -

Rotation:: 260°

Resistive Material:: Conductive Plastic

Termination Style:: Solder Lug

Actuator Type:: Flatted

Actuator Length:: 0.591" (15.00mm)

Actuator Diameter:: 0.236" (6.00mm)

Bushing Thread:: M7 x 0.75

Mounting Type:: Panel Mount

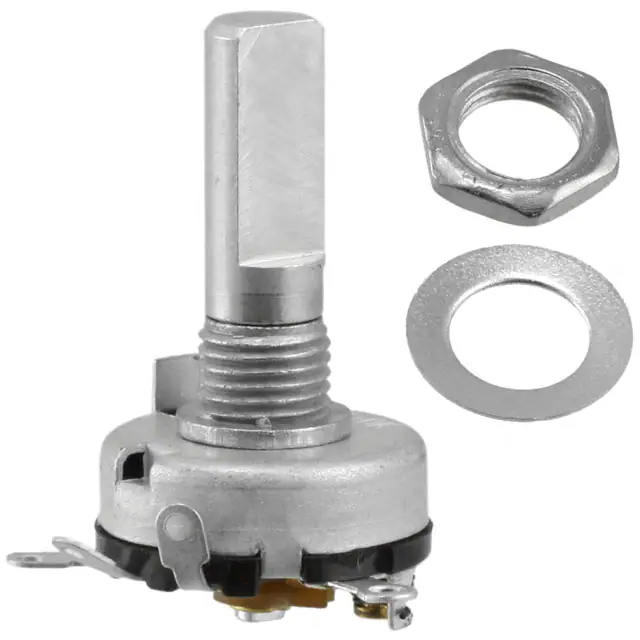

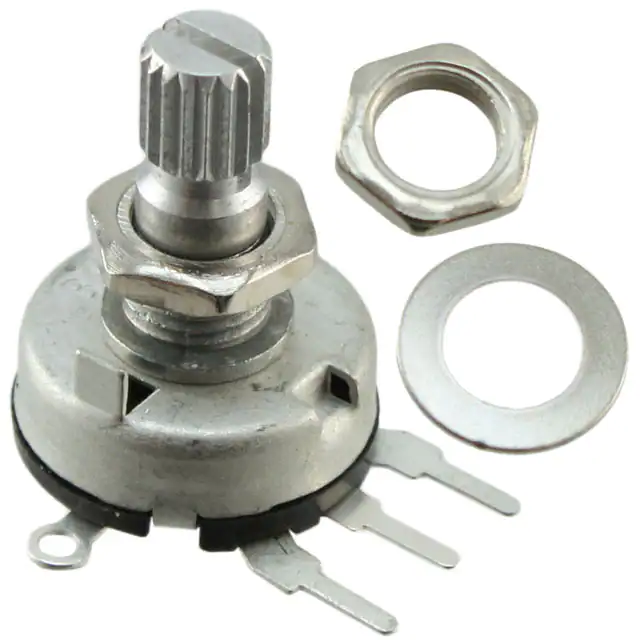

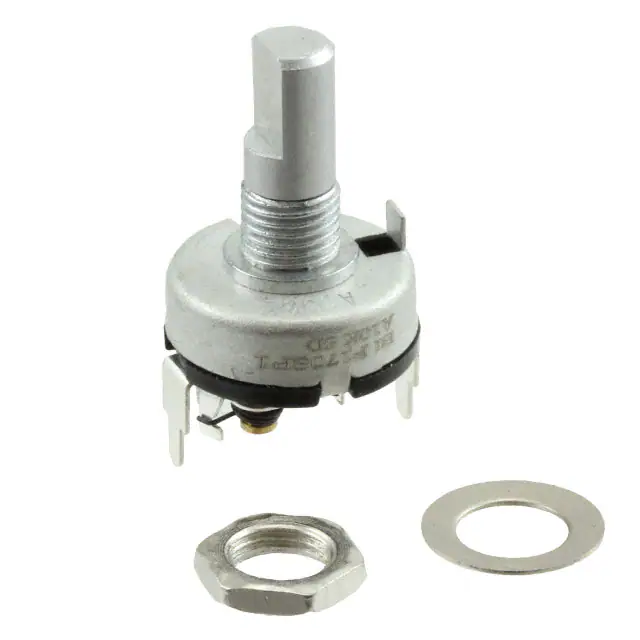

Part Number	P170S-FC15BR100K	P170S2-QC15BR1K	P170S-FC20BR10K	P170SP1-FC15AR10K	P170SPD-C15BR10K
Manufacturer	TT Electronics/BI	TT Electronics/BI	TT Electronics/BI	TT Electronics/BI	TT Electronics/BI
Series	P170	P170	P170	P170	P170
Packaging	Tray	Tray	Tray	Tray	Tray
Product Status	Active	Active	Active	Active	Active
Resistance (Ohms)	100k	1k	10k	10k	10k
Tolerance	±20%	±20%	±20%	±20%	±20%
Power (Watts)	0.1W, 1/10W	0.1W, 1/10W	0.1W, 1/10W	0.05W, 1/20W	0.1W, 1/10W
Built in Switch	Rotary, SPST	Rotary, SPST	Rotary, SPST	Rotary, SPST	Rotary, SPST
Number of Turns	1.0	1.0	1.0	1.0	1.0
Features	-	-	-	-	-
Taper	Linear	Linear	Linear	Logarithmic	Linear
Number of Gangs	1	1	1	1	1
Adjustment Type	User Defined	Side Adjustment	User Defined	Top Adjustment	Rear Adjustment
Temperature Coefficient	-	-	-	-	-
Rotation	260°	260°	260°	260°	260°
Resistive Material	Conductive Plastic	Conductive Plastic	Conductive Plastic	Conductive Plastic	Conductive Plastic
Termination Style	Solder Lug	PC Pins	Solder Lug	PC Pins	PC Pins
Actuator Type	Flatted	Knurled and Slotted	Flatted	Flatted	Knurled and Slotted
Actuator Length	0.591" (15.00mm)	0.591" (15.00mm)	0.787" (20.00mm)	0.591" (15.00mm)	0.591" (15.00mm)
Actuator Diameter	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)	0.236" (6.00mm)
Bushing Thread	M7 x 0.75	M7 x 0.75	M7 x 0.75	M7 x 0.75	M7 x 0.75
Mounting Type	Panel Mount	Panel Mount	Panel Mount	Panel Mount	Panel Mount
