TE Connectivity Potter & Brumfield Relays ORWH-SH-124D1F,000

Name: ORWH-SH-124D1F,000
Brand: TE Connectivity Potter & Brumfield Relays
SKU: ORWH-SH-124D1F,000
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: ORWH-SH-124D1F,000

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Category:: Power Relays, Over 2 Amps

Package:

Datasheet:: ORWH-SH-124D1F,000.pdf

Description:: RELAY GEN PURPOSE SPDT 10A 24V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

ORWH-SH-124D1F,000 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Series:: ORWH, OEG

Packaging:: Tray

Product Status:: Active

Mounting Type:: Through Hole

Coil Voltage:: 24VDC

Contact Form:: SPDT (1 Form C)

Contact Rating (Current):: 10 A

Switching Voltage:: 277VAC, 28VDC - Max

Load - Max Switching:: 2770VA, 280W

Coil Current:: 15 mA

Coil Type:: Non Latching

Features:: -

Termination Style:: PC Pin

Seal Rating:: Sealed - Fully

Coil Insulation:: Class F

Must Operate Voltage:: 16.8 VDC

Must Release Voltage:: 2.4 VDC

Operate Time:: 10 ms

Release Time:: 5 ms

Operating Temperature:: -30°C ~ 70°C

Contact Material:: Silver Zinc Oxide (AgZnO)

Relay Type:: General Purpose

Grade:: -

Qualification:: -

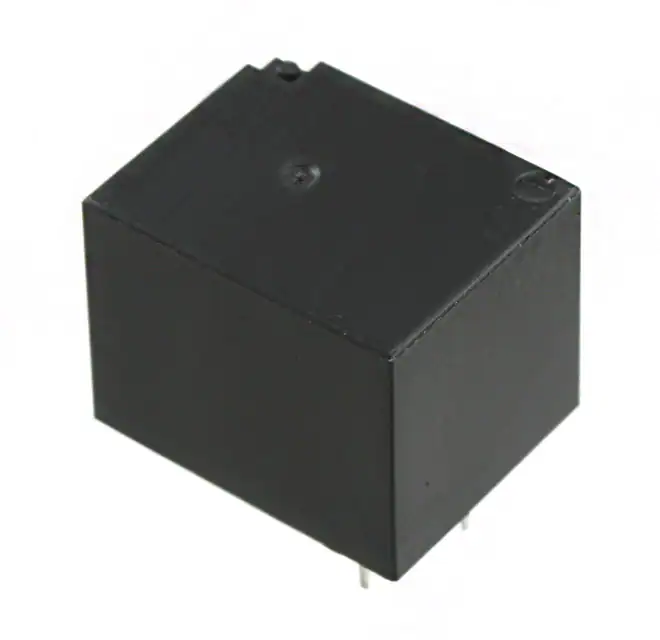

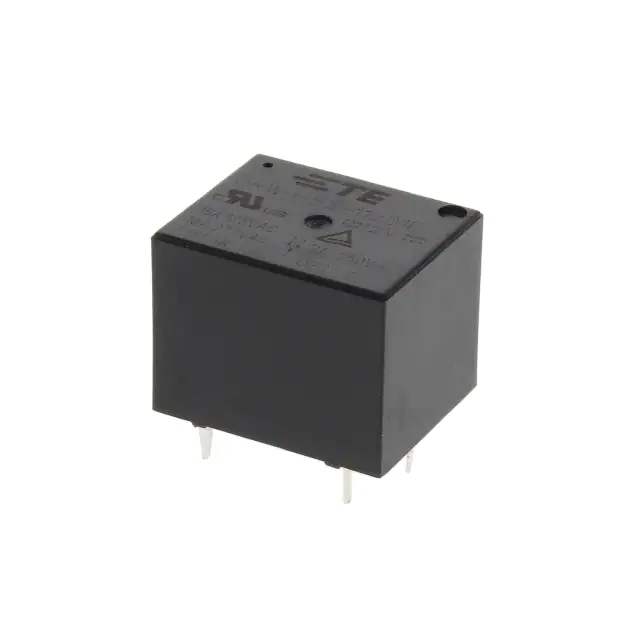

Part Number	ORWH-SH-112D1F,000	ORWH-SH-105D1F,000	ORWH-SH-124D1F,000	ORWH-SS-112D1F,000	ORWH-SS-124D,N000
Manufacturer	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays
Series	ORWH, OEG	ORWH, OEG	ORWH, OEG	ORWH, OEG	ORWH, OEG
Packaging	Tray	Tray	Tray	Bulk	Tube
Product Status	Active	Active	Active	Active	Obsolete
Mounting Type	Through Hole	Through Hole	Through Hole	Through Hole	Through Hole
Coil Voltage	12VDC	5VDC	24VDC	12VDC	24VDC
Contact Form	SPDT (1 Form C)	SPDT (1 Form C)	SPDT (1 Form C)	SPDT (1 Form C)	SPDT (1 Form C)
Contact Rating (Current)	10 A	10 A	10 A	10 A	10 A
Switching Voltage	277VAC, 28VDC - Max	277VAC, 28VDC - Max	277VAC, 28VDC - Max	277VAC, 28VDC - Max	277VAC, 28VDC - Max
Load - Max Switching	2770VA, 280W	2770VA, 280W	2770VA, 280W	2770VA, 280W	2770VA, 280W
Coil Current	30 mA	71.4 mA	15 mA	30 mA	15 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	-	-	-	-	-
Termination Style	PC Pin	PC Pin	PC Pin	PC Pin	PC Pin
Seal Rating	Sealed - Fully	Sealed - Fully	Sealed - Fully	Sealed - Flux Protection	Sealed - Flux Protection
Coil Insulation	Class F	Class F	Class F	Class F	Class A
Must Operate Voltage	8.4 VDC	3.5 VDC	16.8 VDC	8.4 VDC	16.8 VDC
Must Release Voltage	1.2 VDC	0.5 VDC	2.4 VDC	1.2 VDC	2.4 VDC
Operate Time	10 ms	10 ms	10 ms	10 ms	10 ms
Release Time	5 ms	5 ms	5 ms	5 ms	5 ms
Operating Temperature	-30°C ~ 70°C	-30°C ~ 70°C	-30°C ~ 70°C	-30°C ~ 70°C	-30°C ~ 70°C
Contact Material	Silver Zinc Oxide (AgZnO)	Silver Zinc Oxide (AgZnO)	Silver Zinc Oxide (AgZnO)	Silver Zinc Oxide (AgZnO)	Silver Cadmium Oxide (AgCdO)
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
