Newhaven Display Intl NHD-0108BZ-RN-YBW-33V

Name: NHD-0108BZ-RN-YBW-33V
Brand: Newhaven Display Intl
SKU: NHD-0108BZ-RN-YBW-33V
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: NHD-0108BZ-RN-YBW-33V

Manufacturer:: Newhaven Display Intl

Category:: LCD, OLED Character and Numeric

Package:

Datasheet:: NHD-0108BZ-RN-YBW-33V.pdf

Description:: LCD MOD 8 DIG 8 X 1 REFLECTIVE

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

NHD-0108BZ-RN-YBW-33V Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Newhaven Display Intl

Series:: -

Packaging:: Bulk

Product Status:: Active

Number of Characters:: 8.0

Display Format:: 8 x 1

Character Format:: 5 x 8 Dots

Display Type:: STN - Super-Twisted Nematic

Display Mode:: Reflective

Character Size:: 7.10mm H x 3.40mm W

Outline L x W x H:: 53.00mm x 24.20mm x 11.00mm

Viewing Area:: 35.00mm L x 12.60mm W

Backlight:: Without Backlight

Voltage - Supply:: 3.3V

Dot Size:: 0.60mm W x 0.80mm H

Interface:: Parallel

Controller Type:: SPLC780D OR ST7066U

Operating Temperature:: -20°C ~ 70°C

Text Color:: Blue

Background Color:: Green

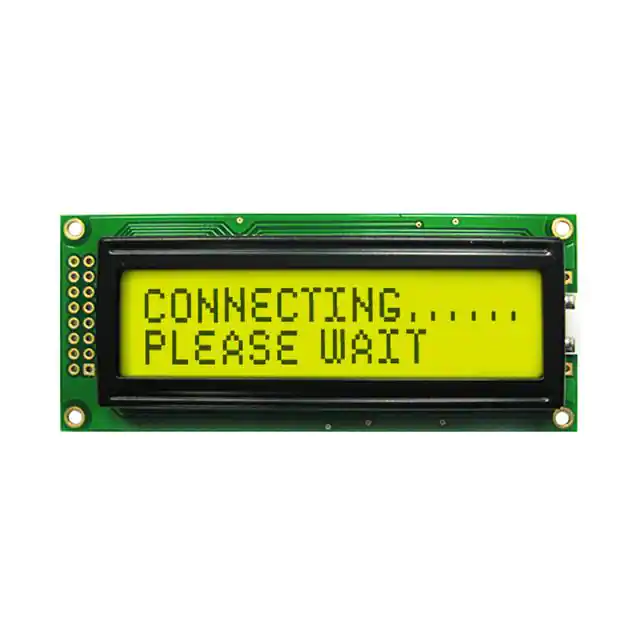

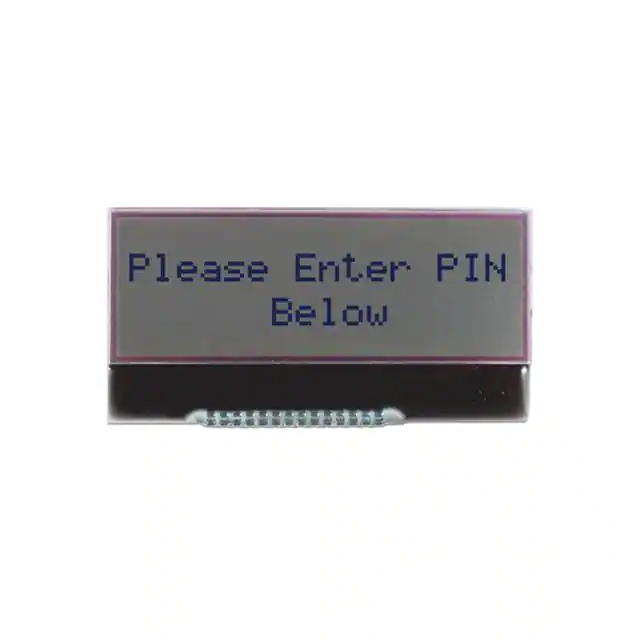

Part Number	NHD-0108BZ-RN-YBW-33V	NHD-02161Z-FSY-YBW-C	NHD-C0220BIZ-FSW-FBW-3V3M	NHD-C0216AZ-FN-GBW	NHD-0216BZ-FL-YBW
Manufacturer	Newhaven Display Intl	Newhaven Display Intl	Newhaven Display Intl	Newhaven Display Intl	Newhaven Display Intl
Series	-	-	-	-	-
Packaging	Bulk	Box	Box	Box	Box
Product Status	Active	Active	Active	Active	Active
Number of Characters	8.0	32.0	40.0	32.0	32.0
Display Format	8 x 1	16 x 2	20 x 2	16 x 2	16 x 2
Character Format	5 x 8 Dots	5 x 8 Dots	5 x 8 Dots	5 x 8 Dots	5 x 8 Dots
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	FSTN - Film Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic
Display Mode	Reflective	Transflective	Transflective	Transflective	Transflective
Character Size	7.10mm H x 3.40mm W	3.23mm H x 1.85mm W	5.55mm H x 2.45mm W	4.68mm H x 2.21mm W	5.23mm H x 3.00mm W
Outline L x W x H	53.00mm x 24.20mm x 11.00mm	53.00mm x 20.00mm x 8.50mm	75.70mm x 27.10mm x 6.80mm	49.70mm x 25.30mm x 2.10mm	84.00mm x 44.00mm x 13.50mm
Viewing Area	35.00mm L x 12.60mm W	36.00mm L x 10.00mm W	61.00mm L x 15.10mm W	45.70mm L x 14.30mm W	64.50mm L x 16.40mm W
Backlight	Without Backlight	LED - Yellow/Green	LED - White	Without Backlight	LED - Yellow/Green
Voltage - Supply	3.3V	4.7V ~ 5.5V	2.7V ~ 3.5V	4.7V ~ 5.5V	4.7V ~ 5.5V
Dot Size	0.60mm W x 0.80mm H	0.33mm W x 0.36mm H	0.45mm W x 0.65mm H	0.41mm W x 0.55mm H	0.56mm W x 0.61mm H
Interface	Parallel	Parallel	I2C	Parallel	Parallel
Controller Type	SPLC780D OR ST7066U	SPLC780D OR ST7066U	ST7036	NT-7605	SPLC780D OR ST7066U
Operating Temperature	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C
Text Color	Blue	Blue	Black	Blue	Blue
Background Color	Green	Green	White	Gray	Green
