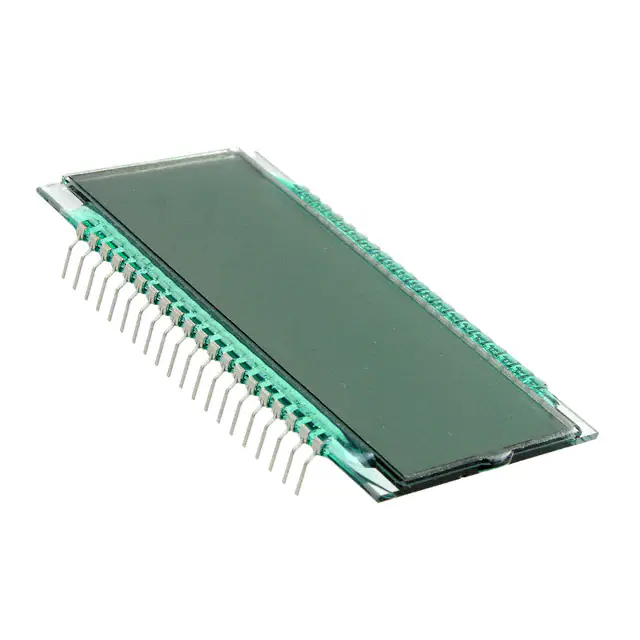

Lumex Opto/Components Inc. LCD-S401C71TR
- Part No.:
- LCD-S401C71TR
- Manufacturer:
- Lumex Opto/Components Inc.
- Category:
- LCD, OLED Character and Numeric
- Package:
- Datasheet:
-
LCD-S401C71TR.pdf
- Description:
- LCD MOD 4 DIG 4 X 1 REFLECTIVE
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LCD-S401C71TR Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Lumex Opto/Components Inc.
- Series:
- -
- Packaging:
- Tray
- Product Status:
- Active
- Number of Characters:
- 4.0
- Display Format:
- 4 x 1
- Character Format:
- 7-Segment
- Display Type:
- TN - Twisted Nematic
- Display Mode:
- Reflective
- Character Size:
- 18.00mm H x 9.00mm W
- Outline L x W x H:
- 69.85mm x 38.10mm x 2.80mm
- Viewing Area:
- 62.23mm L x 22.86mm W
- Backlight:
- Without Backlight
- Voltage - Supply:
- 5V
- Dot Size:
- -
- Interface:
- -
- Controller Type:
- -
- Operating Temperature:
- 0°C ~ 50°C
- Text Color:
- -
- Background Color:
- Gray
| Image |  |
 |
 |
 |
 |

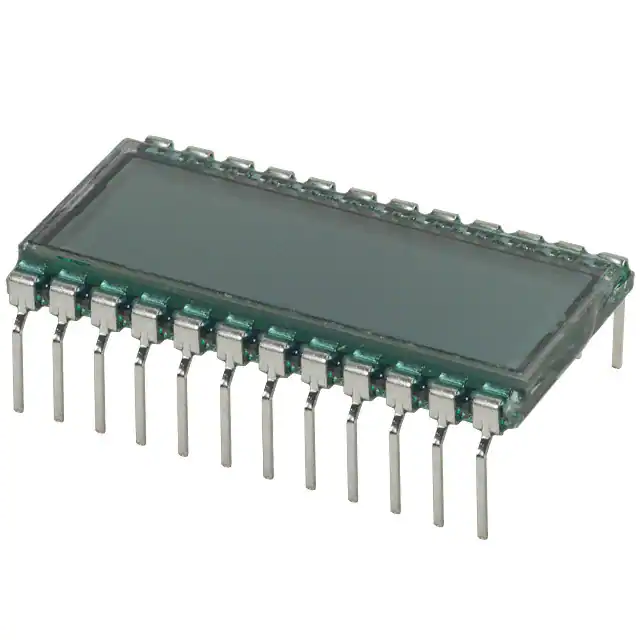

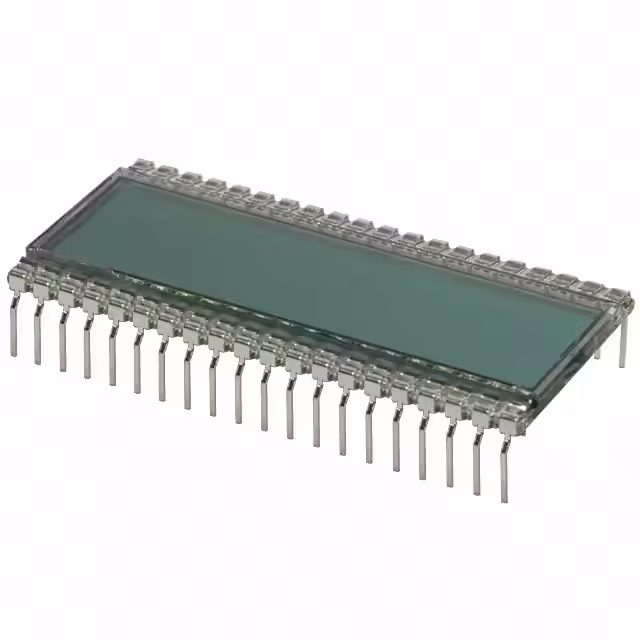

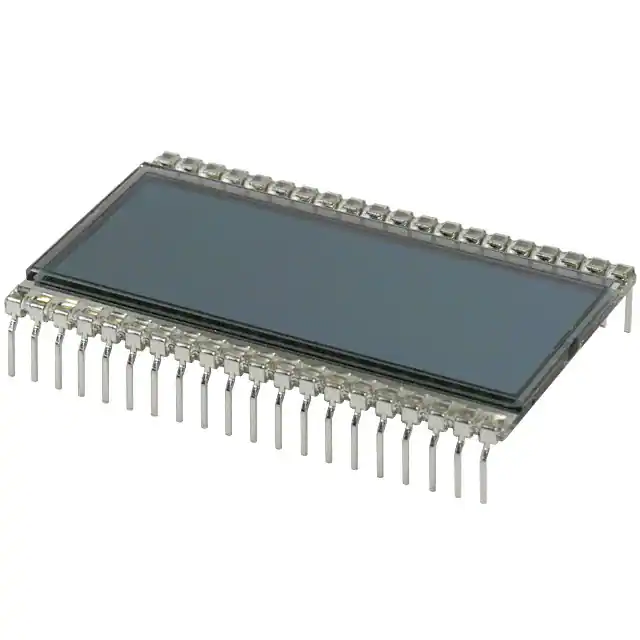

| Part Number | LCD-S301C31TR | LCD-S401C39TR | LCD-S401C52TR | LCD-S401C71TR | LCD-S401M16KR |
| Manufacturer | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. | Lumex Opto/Components Inc. |
| Series | - | - | - | - | - |
| Packaging | Tray | Bulk | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Number of Characters | 3.0 | 4.0 | 4.0 | 4.0 | 4.0 |
| Display Format | 3 x 1 | 4 x 1 | 4 x 1 | 4 x 1 | 4 x 1 |
| Character Format | 7-Segment | 7-Segment | 7-Segment | 7-Segment | 7-Segment |
| Display Type | TN - Twisted Nematic | TN - Twisted Nematic | TN - Twisted Nematic | TN - Twisted Nematic | TN - Twisted Nematic |
| Display Mode | Reflective | Reflective | Reflective | Reflective | Reflective |
| Character Size | 7.87mm H x 5.08mm W | 9.92mm H x 6.35mm W | 13.20mm H x 7.62mm W | 18.00mm H x 9.00mm W | 4.42mm H x 2.31mm W |
| Outline L x W x H | 30.70mm x 16.20mm x 2.80mm | 50.80mm x 22.73mm x 2.20mm | 50.80mm x 30.48mm x 2.80mm | 69.85mm x 38.10mm x 2.80mm | 20.32mm x 10.16mm x 2.80mm |
| Viewing Area | 27.90mm L x 10.00mm W | 43.18mm L x 12.70mm W | 45.72mm L x 17.78mm W | 62.23mm L x 22.86mm W | 17.92mm L x 5.28mm W |
| Backlight | Without Backlight | Without Backlight | Without Backlight | Without Backlight | Without Backlight |
| Voltage - Supply | 5V | 5V | 3V ~ 5V | 5V | 3V |
| Dot Size | - | - | - | - | - |
| Interface | - | - | - | - | - |
| Controller Type | - | - | - | - | - |
| Operating Temperature | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C | 0°C ~ 50°C |
| Text Color | - | - | - | - | - |
| Background Color | Gray | Gray | Gray | Gray | Gray |
