onsemi NCH-RSL10-101S51-ACG
- Part No.:
- NCH-RSL10-101S51-ACG
- Manufacturer:
- onsemi
- Category:
- RF Transceiver ICs
- Package:
- 51-SMD Module
- Datasheet:
-
NCH-RSL10-101S51-ACG.pdf
- Description:
- IC RF TXRX+MCU BLE 51SIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
NCH-RSL10-101S51-ACG Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- -
- Package/Case:
- 51-SMD Module
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- TxRx + MCU
- RF Family/Standard:
- Bluetooth
- Protocol:
- Bluetooth v5.0
- Modulation:
- 4FSK, FSK, GFSK, MSK, OQPSK
- Frequency:
- 2.36GHz ~ 2.5GHz
- Data Rate (Max):
- 4Mbps
- Power - Output:
- 6dBm
- Sensitivity:
- -96dBm
- Memory Size:
- 384kB Flash, 76kB SRAM, 88kB SRAM
- Serial Interfaces:
- PCM, SPI, UART
- GPIO:
- -
- Voltage - Supply:
- 1.18V ~ 3.3V
- Current - Receiving:
- 3mA ~ 6.2mA
- Current - Transmitting:
- 4.6mA ~ 8.9mA
- Operating Temperature:
- -40°C ~ 85°C
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 51-SIP (8x6)
| Image |  |
 |
 |
 |
|

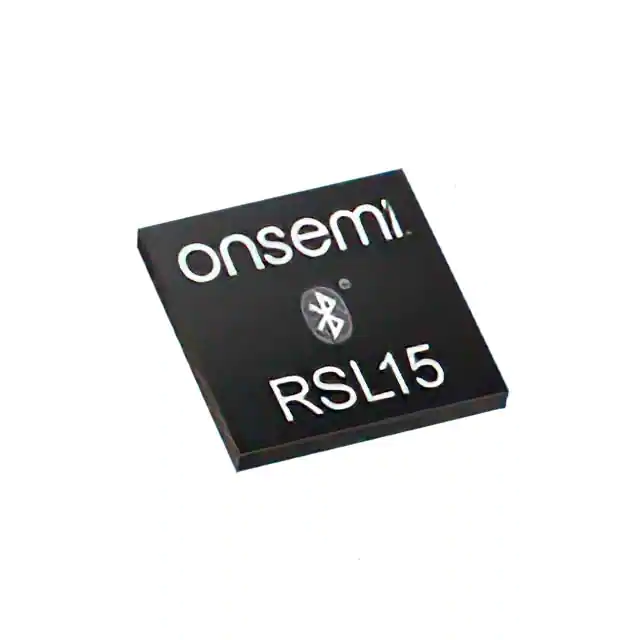

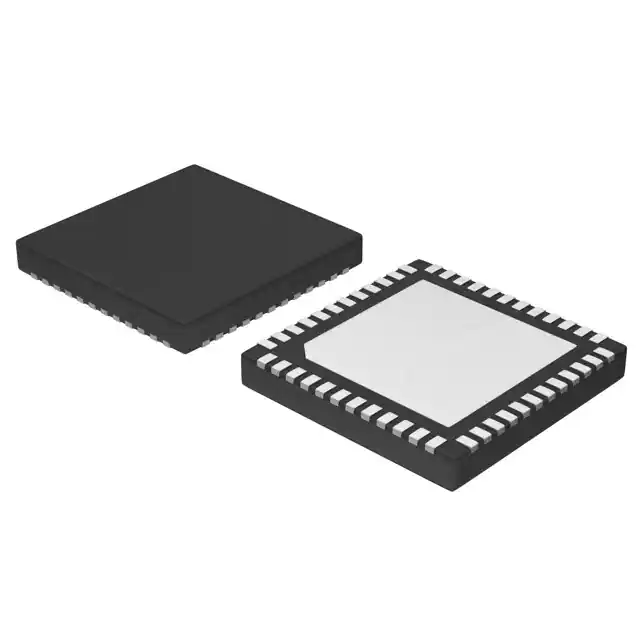

| Part Number | NCH-RSL10-101S51-ACG | NCH-RSL10-101WC51-ABG | NCH-RSL15-512-101Q40-ACG | NCH-RSL10-101Q48-ABG | NCH-RSL15-284-101Q40-ACG |
| Manufacturer | onsemi | onsemi | onsemi | onsemi | onsemi |
| Series | - | - | RSL15 | - | RSL15 |
| Package/Case | 51-SMD Module | 51-XFBGA, WLCSP | 40-VFQFN Exposed Pad | 48-VFQFN Exposed Pad | 40-VFQFN Exposed Pad |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Type | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU | TxRx + MCU |
| RF Family/Standard | Bluetooth | Bluetooth | Bluetooth | Bluetooth | Bluetooth |
| Protocol | Bluetooth v5.0 | Bluetooth v5.0 | Bluetooth v5.2 | Bluetooth v5.0 | Bluetooth v5.2 |
| Modulation | 4FSK, FSK, GFSK, MSK, OQPSK | FSK, GFSK | 4-FSK, GFSK, MSK, O-QPSK | FSK, GFSK | 4-FSK, GFSK, MSK, O-QPSK |
| Frequency | 2.36GHz ~ 2.5GHz | 2.4GHz | 2.4GHz | 2.4GHz | 2.4GHz |
| Data Rate (Max) | 4Mbps | 2Mbps | 2Mbps | 2Mbps | 2Mbps |
| Power - Output | 6dBm | 6dBm | 6dBm | 6dBm | 6dBm |
| Sensitivity | -96dBm | -94dBm | -102dBm | -94dBm | -102dBm |
| Memory Size | 384kB Flash, 76kB SRAM, 88kB SRAM | - | 512kB Flash, 80kB RAM | - | 284kB Flash, 80kB RAM |
| Serial Interfaces | PCM, SPI, UART | I2C, SPI, UART | I2C, PCM, PWM, SPI, UART | I2C, SPI, UART | I2C, PCM, PWM, SPI, UART |
| GPIO | - | - | 15 | - | 15 |
| Voltage - Supply | 1.18V ~ 3.3V | 3.3V | 1.2V ~ 3.6V | 3.3V | 1.2V ~ 3.6V |
| Current - Receiving | 3mA ~ 6.2mA | 3mA ~ 6.2mA | 2.7mA ~ 6.7mA | 3mA ~ 6.2mA | 2.7mA ~ 6.7mA |
| Current - Transmitting | 4.6mA ~ 8.9mA | 12mA ~ 25mA | 4.3mA ~ 24.1mA | 12mA ~ 25mA | 4.3mA ~ 24.1mA |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 51-SIP (8x6) | 51-WLCSP (2.33x2.36) | 40-QFN (5x5) | 48-QFN (6x6) | 40-QFN (5x5) |
