Omron Automation and Safety MYQ4ZN-D2 DC48

Name: MYQ4ZN-D2 DC48
Brand: Omron Automation and Safety
SKU: MYQ4ZN-D2 DC48
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: MYQ4ZN-D2 DC48

Manufacturer:: Omron Automation and Safety

Category:: Signal Relays, Up to 2 Amps

Package:

Datasheet:: MYQ4ZN-D2 DC48.pdf

Description:: RELAY GEN PURPOSE 4PDT 1A 48V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

MYQ4ZN-D2 DC48 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Automation and Safety

Series:: MY

Packaging:: Bulk

Product Status:: Obsolete

Mounting Type:: Socketable

Coil Voltage:: 48VDC

Contact Form:: 4PDT (4 Form C)

Contact Rating (Current):: 1 A

Switching Voltage:: 250VAC, 125VDC - Max

Load - Max Switching:: 250VA, 125W

Coil Current:: 18.5 mA

Coil Type:: Non Latching

Features:: Lighted Indicator

Termination Style:: Plug In

Seal Rating:: Sealed - Fully

Coil Insulation:: -

Must Operate Voltage:: 38.4 VDC

Must Release Voltage:: 4.8 VDC

Operate Time:: 20 ms

Release Time:: 20 ms

Operating Temperature:: -55°C ~ 60°C

Contact Material:: Silver (Ag), Gold (Au)

Relay Type:: General Purpose

Grade:: -

Qualification:: -

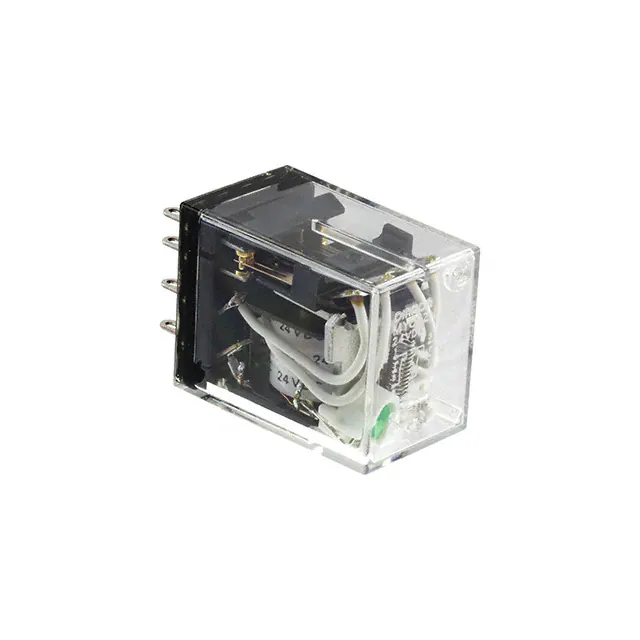

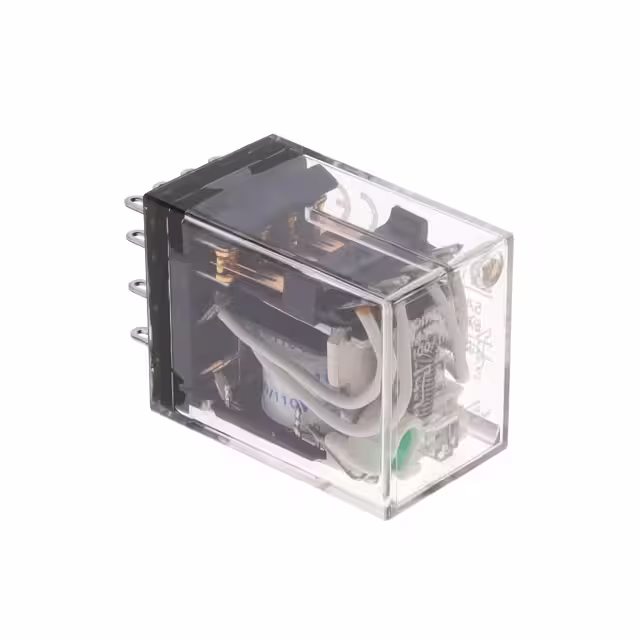

Part Number	MYQ4ZN DC24	MYQ4ZN DC100/110	MYQ4ZN AC110/120	MYQ4ZN AC24	MYQ4ZN-D2 DC24
Manufacturer	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety
Series	MY	MY	MY	MY	MY
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Obsolete	Active
Mounting Type	Socketable	Socketable	Socketable	Socketable	Socketable
Coil Voltage	24VDC	110VDC	120VAC	24VDC	24VDC
Contact Form	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)
Contact Rating (Current)	1 A	1 A	1 A	1 A	1 A
Switching Voltage	250VAC, 125VDC - Max	250VAC, 125VDC - Max	250VAC, 125VDC - Max	250VAC, 125VDC - Max	250VAC, 125VDC - Max
Load - Max Switching	250VA, 125W	250VA, 125W	250VA, 125W	250VA, 125W	250VA, 125W
Coil Current	36.9 mA	9.1 mA	9.2 mA	36.9 mA	36.9 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	Lighted Indicator	Lighted Indicator	Lighted Indicator	Lighted Indicator	Lighted Indicator
Termination Style	Plug In	Plug In	Plug In	Plug In	Plug In
Seal Rating	Sealed - Fully	Sealed - Fully	Sealed - Fully	Sealed - Fully	Sealed - Fully
Coil Insulation	-	-	-	-	-
Must Operate Voltage	19.2 VDC	88 VDC	96 VAC	19.2 VDC	19.2 VDC
Must Release Voltage	2.4 VDC	11 VDC	36 VAC	2.4 VDC	2.4 VDC
Operate Time	20 ms	20 ms	20 ms	20 ms	20 ms
Release Time	20 ms	20 ms	20 ms	20 ms	20 ms
Operating Temperature	-55°C ~ 60°C	-55°C ~ 60°C	-55°C ~ 60°C	-55°C ~ 60°C	-55°C ~ 60°C
Contact Material	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
