Omron Automation and Safety MY4ZN-D2 DC24 (S)

Name: MY4ZN-D2 DC24 (S)
Brand: Omron Automation and Safety
SKU: MY4ZN-D2 DC24 (S)
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: MY4ZN-D2 DC24 (S)

Manufacturer:: Omron Automation and Safety

Category:: Power Relays, Over 2 Amps

Package:

Datasheet:: MY4ZN-D2 DC24 (S).pdf

Description:: RELAY GEN PURPOSE 4PDT 3A 24V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

MY4ZN-D2 DC24 (S) Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Omron Automation and Safety

Series:: MY

Packaging:: Bulk

Product Status:: Active

Mounting Type:: Socketable

Coil Voltage:: 24VDC

Contact Form:: 4PDT (4 Form C)

Contact Rating (Current):: 3 A

Switching Voltage:: 250VAC, 125VDC - Max

Load - Max Switching:: 750VA, 375W

Coil Current:: 36.3 mA

Coil Type:: Non Latching

Features:: Diode, Lighted Indicator

Termination Style:: Plug In

Seal Rating:: -

Coil Insulation:: -

Must Operate Voltage:: 19.2 VDC

Must Release Voltage:: 2.4 VDC

Operate Time:: 20 ms

Release Time:: 20 ms

Operating Temperature:: -55°C ~ 70°C

Contact Material:: Silver (Ag), Gold (Au)

Relay Type:: General Purpose

Grade:: -

Qualification:: -

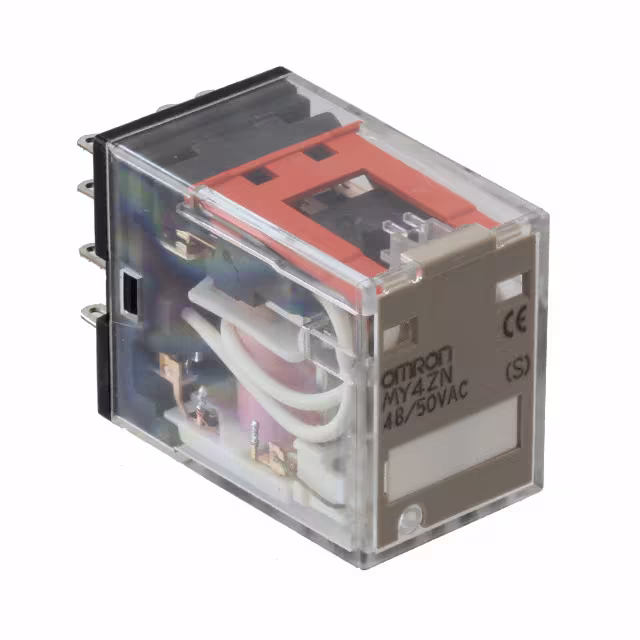

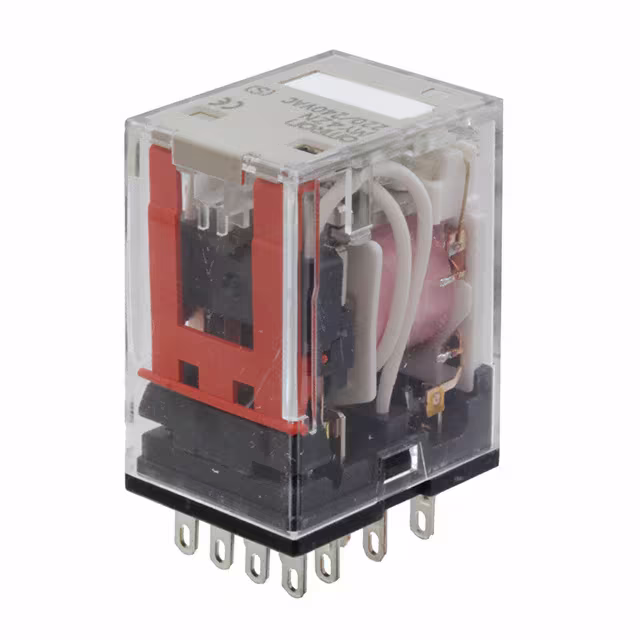

Part Number	MY4ZN-D2 DC24 (S)	MY4ZN DC12 (S)	MY4ZN DC24 (S)	MY4ZN AC48/50 (S)	MY4ZN AC220/240 (S)
Manufacturer	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety	Omron Automation and Safety
Series	MY	MY	MY	MY	MY
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Mounting Type	Socketable	Socketable	Socketable	Socketable	Socketable
Coil Voltage	24VDC	12VDC	24VDC	50VAC	240VAC
Contact Form	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)	4PDT (4 Form C)
Contact Rating (Current)	3 A	3 A	3 A	5 A	3 A
Switching Voltage	250VAC, 125VDC - Max	250VAC, 125VDC - Max	250VAC, 125VDC - Max	250VAC, 125VDC - Max	250VAC, 125VDC - Max
Load - Max Switching	750VA, 375W	750VA, 375W	750VA, 375W	1250VA, 625W	750VA, 375W
Coil Current	36.3 mA	72.7 mA	36.3 mA	63.5 mA	12.8 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	Diode, Lighted Indicator	Lighted Indicator	Lighted Indicator	-	Lighted Indicator
Termination Style	Plug In	Plug In	Plug In	Plug In	Plug In
Seal Rating	-	-	-	-	-
Coil Insulation	-	-	-	-	-
Must Operate Voltage	19.2 VDC	9.6 VDC	19.2 VDC	-	192 VAC
Must Release Voltage	2.4 VDC	1.2 VDC	2.4 VDC	-	72 VAC
Operate Time	20 ms	20 ms	20 ms	20 ms	20 ms
Release Time	20 ms	20 ms	20 ms	20 ms	20 ms
Operating Temperature	-55°C ~ 70°C	-55°C ~ 70°C	-55°C ~ 70°C	-55°C ~ 70°C	-55°C ~ 70°C
Contact Material	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)	Silver (Ag), Gold (Au)
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
