Analog Devices Inc./Maxim Integrated MX7528JP
- Part No.:
- MX7528JP
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Digital to Analog Converters (DAC)
- Package:
- 20-LCC (J-Lead)
- Datasheet:
-
MX7528JP.pdf
- Description:
- IC DAC 8BIT A-OUT 20PLCC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MX7528JP Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Series:
- -
- Package/Case:
- 20-LCC (J-Lead)
- Packaging:
- Bulk
- Product Status:
- Active
- Programmable:
- Not Verified
- Number of Bits:
- 8
- Number of D/A Converters:
- 2
- Settling Time:
- 350ns
- Output Type:
- Current - Unbuffered
- Differential Output:
- No
- Data Interface:
- Parallel
- Reference Type:
- External
- Voltage - Supply, Analog:
- 4.75V ~ 5.25V, 14.25V ~ 15.75V
- Voltage - Supply, Digital:
- 4.75V ~ 5.25V, 14.25V ~ 15.75V
- INL/DNL (LSB):
- ±1 (Max), ±1 (Max)
- Architecture:
- Multiplying DAC, R-2R
- Operating Temperature:
- 0°C ~ 70°C
- Supplier Device Package:
- 20-PLCC (8.97x8.97)
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -
| Image |  |
 |

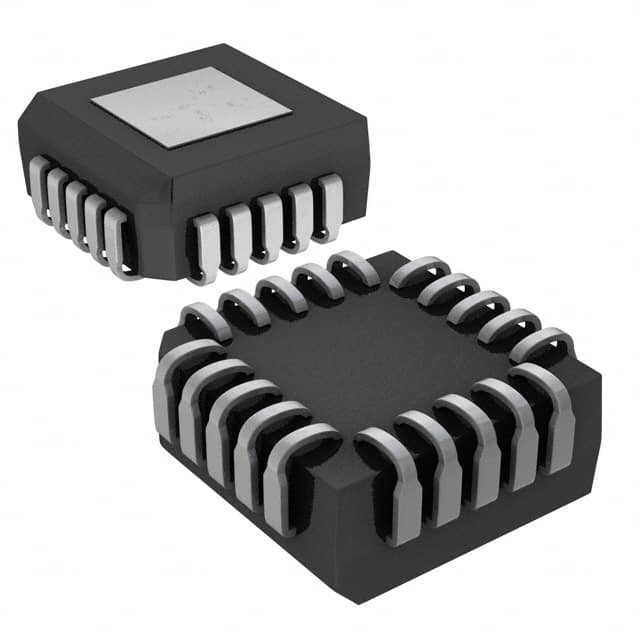

| Part Number | MX7528JP+ | MX7528JP |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Series | - | - |
| Package/Case | 20-LCC (J-Lead) | 20-LCC (J-Lead) |
| Packaging | Tube | Bulk |
| Product Status | Active | Active |
| Programmable | Not Verified | Not Verified |
| Number of Bits | 8 | 8 |
| Number of D/A Converters | 2 | 2 |
| Settling Time | 400ns | 350ns |
| Output Type | Current - Unbuffered | Current - Unbuffered |
| Differential Output | No | No |
| Data Interface | Parallel | Parallel |
| Reference Type | External | External |
| Voltage - Supply, Analog | 5V ~ 15V | 4.75V ~ 5.25V, 14.25V ~ 15.75V |
| Voltage - Supply, Digital | 5V ~ 15V | 4.75V ~ 5.25V, 14.25V ~ 15.75V |
| INL/DNL (LSB) | ±1 (Max), ±1 (Max) | ±1 (Max), ±1 (Max) |
| Architecture | R-2R | Multiplying DAC, R-2R |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C |
| Supplier Device Package | 20-PLCC (9x9) | 20-PLCC (8.97x8.97) |
| Mounting Type | Surface Mount | Surface Mount |
| Grade | - | - |
| Qualification | - | - |
