Microchip Technology MCP47A1T-A0E/LT
- Part No.:
- MCP47A1T-A0E/LT
- Manufacturer:
- Microchip Technology
- Category:
- Digital to Analog Converters (DAC)
- Package:
- 6-TSSOP, SC-88, SOT-363
- Datasheet:
-
MCP47A1T-A0E/LT.pdf
- Description:
- IC DAC 6BIT V-OUT SC70-6
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MCP47A1T-A0E/LT Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- -
- Package/Case:
- 6-TSSOP, SC-88, SOT-363
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Last Time Buy
- Programmable:
- Not Verified
- Number of Bits:
- 6
- Number of D/A Converters:
- 1
- Settling Time:
- 15µs (Typ)
- Output Type:
- Voltage - Buffered
- Differential Output:
- No
- Data Interface:
- I2C
- Reference Type:
- External
- Voltage - Supply, Analog:
- 2.7V ~ 5.5V
- Voltage - Supply, Digital:
- 1.8V ~ 5.5V
- INL/DNL (LSB):
- ±0.25, ±0.25
- Architecture:
- R-2R
- Operating Temperature:
- -40°C ~ 125°C
- Supplier Device Package:
- SC-70-6
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -

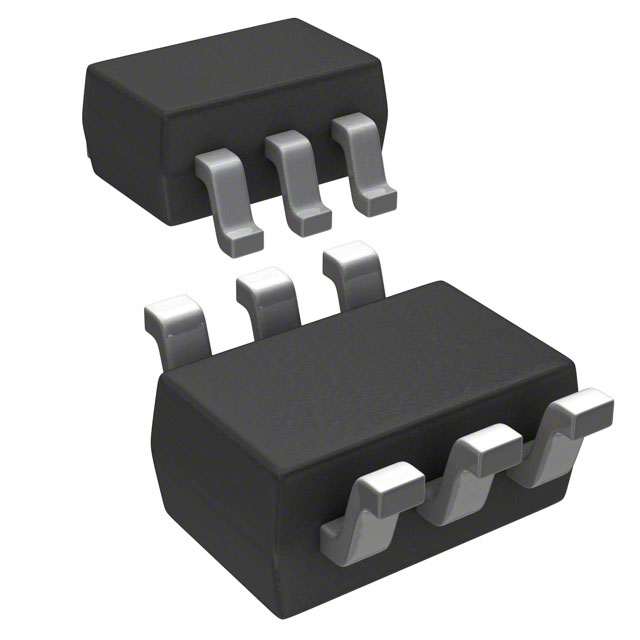

| Image |  |
|
 |
|
| Part Number | MCP47A1T-A0E/LT | MCP47A1T-A1E/LT | MCP47A1T-A0E/LTY | MCP47A1T-A1E/LTY |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | - | - | - | - |
| Package/Case | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 | 6-TSSOP, SC-88, SOT-363 |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Last Time Buy | Last Time Buy | Active | Active |
| Programmable | Not Verified | Not Verified | - | - |
| Number of Bits | 6 | 6 | 6 | 6 |
| Number of D/A Converters | 1 | 1 | 1 | 1 |
| Settling Time | 15µs (Typ) | 15µs (Typ) | 15µs (Typ) | 15µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No | No | No |
| Data Interface | I2C | I2C | I2C | I2C |
| Reference Type | External | External | External | External |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| INL/DNL (LSB) | ±0.25, ±0.25 | ±0.25, ±0.25 | ±0.25, ±0.25 | ±0.25, ±0.25 |
| Architecture | R-2R | R-2R | R-2R | R-2R |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Supplier Device Package | SC-70-6 | SC-70-6 | SC-70-6 | SC-70-6 |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
