onsemi MDB10S
- Part No.:
- MDB10S
- Manufacturer:
- onsemi
- Category:
- Bridge Rectifiers
- Package:
- 4-SMD, Gull Wing
- Description:
- BRIDGE RECT 1P 1KV 1A 4MICRODIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MDB10S Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- onsemi
- Series:
- -
- Package/Case:
- 4-SMD, Gull Wing
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Diode Type:
- Single Phase
- Technology:
- Standard
- Voltage - Peak Reverse (Max):
- 1 kV
- Current - Average Rectified (Io):
- 1 A
- Voltage - Forward (Vf) (Max) @ If:
- 1.1 V @ 1 A
- Current - Reverse Leakage @ Vr:
- 10 µA @ 1000 V
- Operating Temperature:
- -55°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 4-MicroDIP/SMD

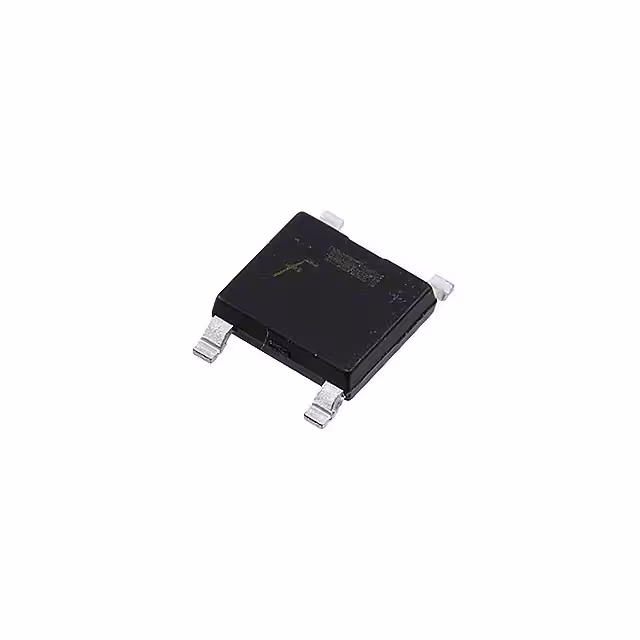

| Image |  |
 |
|
 |
| Part Number | MDB10S | MDB10SS | MDB10SS | MDB10SV |
| Manufacturer | onsemi | onsemi | onsemi | onsemi |
| Series | - | - | - | MLVC |
| Package/Case | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing | 4-SMD, Gull Wing |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Bulk | Tape & Reel (TR) |
| Product Status | Active | Obsolete | Active | Obsolete |
| Diode Type | Single Phase | Single Phase | Single Phase | Single Phase |
| Technology | Standard | Standard | Standard | Standard |
| Voltage - Peak Reverse (Max) | 1 kV | 1 kV | 1 kV | 1 kV |
| Current - Average Rectified (Io) | 1 A | 1 A | 1 A | 1.2 A |
| Voltage - Forward (Vf) (Max) @ If | 1.1 V @ 1 A | 1 V @ 1 A | 1 V @ 1 A | 1.015 V @ 1.2 A |
| Current - Reverse Leakage @ Vr | 10 µA @ 1000 V | 10 µA @ 1000 V | 10 µA @ 1000 V | 10 µA @ 1000 V |
| Operating Temperature | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) | -55°C ~ 150°C (TJ) |
| Grade | - | - | - | - |
| Qualification | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 4-MicroDIP/SMD | 4-MicroDIP/SMD | 4-MicroDIP/SMD | 4-MicroDIP/SMD |
