Microchip Technology MCP1407-E/SN
- Part No.:
- MCP1407-E/SN
- Manufacturer:
- Microchip Technology
- Category:
- Gate Drivers
- Package:
- 8-SOIC (0.154", 3.90mm Width)
- Datasheet:
-
MCP1407-E/SN.pdf
- Description:
- IC GATE DRVR LOW-SIDE 8SOIC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MCP1407-E/SN Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- -
- Package/Case:
- 8-SOIC (0.154", 3.90mm Width)
- Packaging:
- Tube
- Product Status:
- Active
- Programmable:
- Not Verified
- Driven Configuration:
- Low-Side
- Channel Type:
- Single
- Number of Drivers:
- 1
- Gate Type:
- IGBT, N-Channel, P-Channel MOSFET
- Voltage - Supply:
- 4.5V ~ 18V
- Logic Voltage - VIL, VIH:
- 0.8V, 2.4V
- Current - Peak Output (Source, Sink):
- 6A, 6A
- Input Type:
- Non-Inverting
- High Side Voltage - Max (Bootstrap):
- -
- Rise / Fall Time (Typ):
- 20ns, 20ns
- Operating Temperature:
- -40°C ~ 150°C (TJ)
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 8-SOIC
| Image |  |
|
 |
 |
 |
| Part Number | MCP1407T-E/SN | MCP1407-E/SN | MCP1407-E/P | MCP1407-E/AT | MCP1407-E/MF |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | - | - | - | - | - |

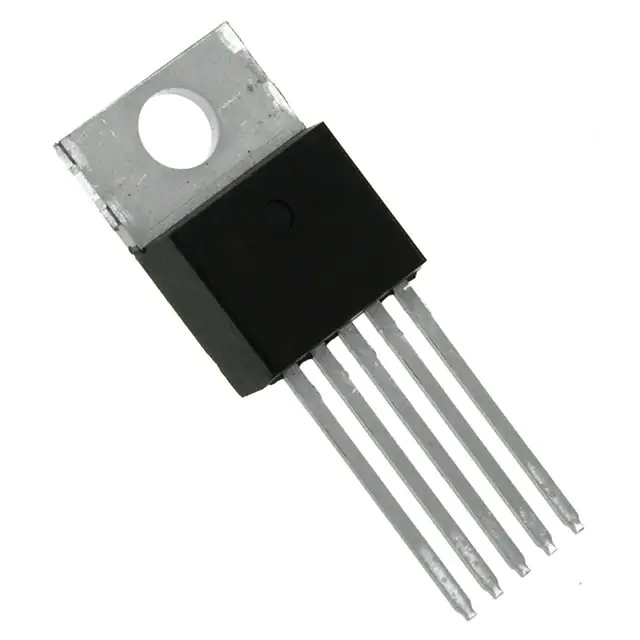

| Package/Case | 8-SOIC (0.154", 3.90mm Width) | 8-SOIC (0.154", 3.90mm Width) | 8-DIP (0.300", 7.62mm) | TO-220-5 | 8-VDFN Exposed Pad |
| Packaging | Tape & Reel (TR) | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Active | Active | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Driven Configuration | Low-Side | Low-Side | Low-Side | Low-Side | Low-Side |
| Channel Type | Single | Single | Single | Single | Single |
| Number of Drivers | 1 | 1 | 1 | 1 | 1 |
| Gate Type | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET | IGBT, N-Channel, P-Channel MOSFET |
| Voltage - Supply | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V | 4.5V ~ 18V |
| Logic Voltage - VIL, VIH | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V | 0.8V, 2.4V |
| Current - Peak Output (Source, Sink) | 6A, 6A | 6A, 6A | 6A, 6A | 6A, 6A | 6A, 6A |
| Input Type | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting | Non-Inverting |
| High Side Voltage - Max (Bootstrap) | - | - | - | - | - |
| Rise / Fall Time (Typ) | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns | 20ns, 20ns |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) | -40°C ~ 150°C (TJ) |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Through Hole | Through Hole | Surface Mount |
| Supplier Device Package | 8-SOIC | 8-SOIC | 8-PDIP | TO-220-5 | 8-DFN-S (6x5) |
