Midas Displays MC21605FA6WE-BNMLW
- Part No.:
- MC21605FA6WE-BNMLW
- Manufacturer:
- Midas Displays
- Category:
- LCD, OLED Character and Numeric
- Package:
- Datasheet:
-
MC21605FA6WE-BNMLW.pdf
- Description:
- 2X16 CHARACTER CHIP-ON-BOARD LCD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MC21605FA6WE-BNMLW Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Midas Displays
- Series:
- MC21605FA
- Packaging:
- Tray
- Product Status:
- Active
- Number of Characters:
- 32.0
- Display Format:
- 16 x 2
- Character Format:
- 5 x 8 Dots
- Display Type:
- STN - Super-Twisted Nematic
- Display Mode:
- Transmissive
- Character Size:
- 4.67mm H x 2.45mm W
- Outline L x W x H:
- 59.00mm x 29.00mm x 5.50mm
- Viewing Area:
- 52.00mm L x 15.00mm W
- Backlight:
- LED - White
- Voltage - Supply:
- 5V
- Dot Size:
- 0.54mm W x 0.45mm H
- Interface:
- Parallel
- Controller Type:
- ST7065
- Operating Temperature:
- -20°C ~ 70°C
- Text Color:
- White
- Background Color:
- Blue
| Image |  |
 |
 |

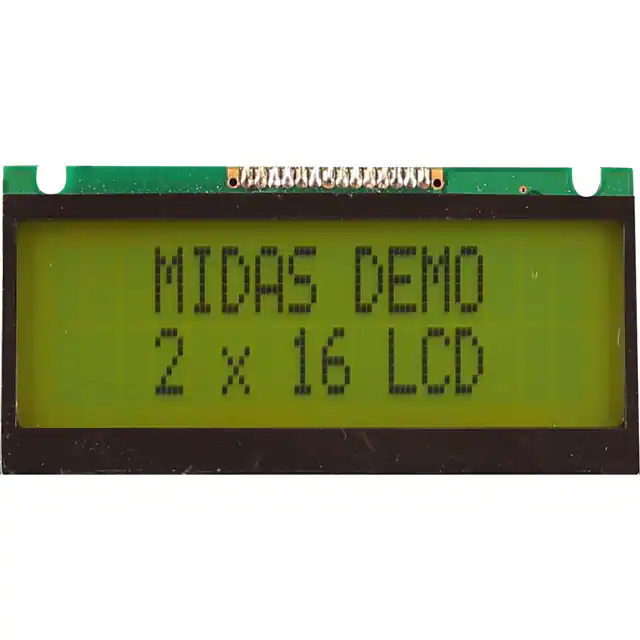

| Part Number | MC21605FA6WE-GPTLW | MC21605FA6WE-BNMLW | MC21605FA6WE-SPTLY |
| Manufacturer | Midas Displays | Midas Displays | Midas Displays |
| Series | MC21605F | MC21605FA | MC21605FA |
| Packaging | Tray | Tray | Tray |
| Product Status | Active | Active | Active |
| Number of Characters | 32.0 | 32.0 | 32.0 |
| Display Format | 16 x 2 | 16 x 2 | 16 x 2 |
| Character Format | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots |
| Display Type | FSTN - Film Super-Twisted Nematic | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic |
| Display Mode | Transflective | Transmissive | Transflective |
| Character Size | 4.67mm H x 2.45mm W | 4.67mm H x 2.45mm W | 4.67mm H x 2.45mm W |
| Outline L x W x H | 59.00mm x 29.00mm x 5.50mm | 59.00mm x 29.00mm x 5.50mm | 59.00mm x 29.00mm x 5.50mm |
| Viewing Area | 52.00mm L x 15.00mm W | 52.00mm L x 15.00mm W | 52.00mm L x 15.00mm W |
| Backlight | LED - White | LED - White | LED - Yellow/Green |
| Voltage - Supply | 5V | 5V | 5V |
| Dot Size | 0.54mm W x 0.45mm H | 0.54mm W x 0.45mm H | 0.54mm W x 0.45mm H |
| Interface | Parallel | Parallel | Parallel |
| Controller Type | ST7065 | ST7065 | ST7065 |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Text Color | Black | White | Black |
| Background Color | Gray | Blue | Yellow/Green |
