Midas Displays MC21605A6W-FPTLW
- Part No.:
- MC21605A6W-FPTLW
- Manufacturer:
- Midas Displays
- Category:
- LCD, OLED Character and Numeric
- Package:
- Datasheet:
-
MC21605A6W-FPTLW.pdf
- Description:
- 2X16 CHARACTER CHIP-ON-BOARD LCD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MC21605A6W-FPTLW Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Midas Displays
- Series:
- MC21605A
- Packaging:
- Tray
- Product Status:
- Active
- Number of Characters:
- 32.0
- Display Format:
- 16 x 2
- Character Format:
- 5 x 8 Dots
- Display Type:
- FSTN - Film Super-Twisted Nematic
- Display Mode:
- Transflective
- Character Size:
- 5.23mm H x 3.00mm W
- Outline L x W x H:
- 84.00mm x 44.00mm x 13.50mm
- Viewing Area:
- 64.50mm L x 16.40mm W
- Backlight:
- LED - White
- Voltage - Supply:
- 5V
- Dot Size:
- 0.56mm W x 0.61mm H
- Interface:
- Parallel
- Controller Type:
- SPLC780D
- Operating Temperature:
- -20°C ~ 70°C
- Text Color:
- Black
- Background Color:
- White
| Image |  |
 |
 |

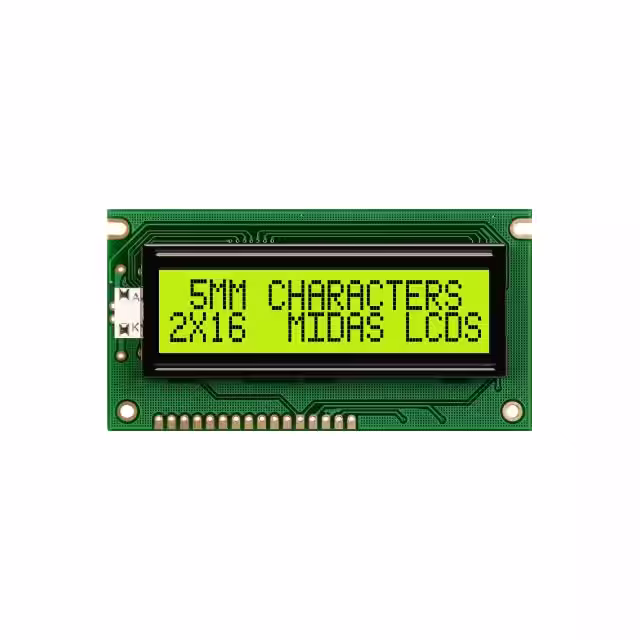

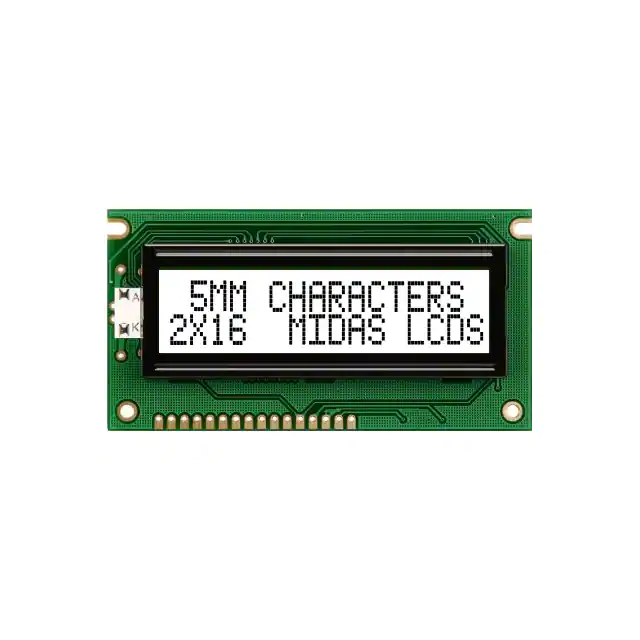

| Part Number | MC21605A6W-FPTLW-V2 | MC21605A6W-SPR-V2 | MC21605A6W-FPTLW |
| Manufacturer | Midas Displays | Midas Displays | Midas Displays |
| Series | MC21605A | MC21605A | MC21605A |
| Packaging | Tray | Tray | Tray |
| Product Status | Active | Active | Active |
| Number of Characters | 1.0 | 1.0 | 32.0 |
| Display Format | 2 x 16 | 2 x 16 | 16 x 2 |
| Character Format | 5 x 8 Dots | 5 x 8 Dots | 5 x 8 Dots |
| Display Type | STN - Super-Twisted Nematic | STN - Super-Twisted Nematic | FSTN - Film Super-Twisted Nematic |
| Display Mode | Transflective | Reflective | Transflective |
| Character Size | 5.23mm H x 3.00mm W | 5.23mm H x 3.00mm W | 5.23mm H x 3.00mm W |
| Outline L x W x H | 84.00mm x 44.00mm x 13.50mm | 84.00mm x 44.00mm x 9.50mm | 84.00mm x 44.00mm x 13.50mm |
| Viewing Area | 64.50mm L x 16.40mm W | 64.50mm L x 16.40mm W | 64.50mm L x 16.40mm W |
| Backlight | LED - White | Without Backlight | LED - White |
| Voltage - Supply | 5V | 5V | 5V |
| Dot Size | 0.56mm W x 0.61mm H | 0.56mm W x 0.61mm H | 0.56mm W x 0.61mm H |
| Interface | Parallel | Parallel | Parallel |
| Controller Type | ST7066U | ST7066U | SPLC780D |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Text Color | Black | Black | Black |
| Background Color | White | Yellow/Green | White |
