Midas Displays MC21603A6W-SPR-V2

Name: MC21603A6W-SPR-V2
Brand: Midas Displays
SKU: MC21603A6W-SPR-V2
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: MC21603A6W-SPR-V2

Manufacturer:: Midas Displays

Category:: LCD, OLED Character and Numeric

Package:

Datasheet:: MC21603A6W-SPR-V2.pdf

Description:: 2X16 CHARACTER CHIP-ON-BOARD LCD

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

MC21603A6W-SPR-V2 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Midas Displays

Series:: MC21603A

Packaging:: Tray

Product Status:: Active

Number of Characters:: 32.0

Display Format:: 16 x 2

Character Format:: 5 x 8 Dots

Display Type:: STN - Super-Twisted Nematic

Display Mode:: Reflective

Character Size:: 3.15mm H x 1.85mm W

Outline L x W x H:: 53.00mm x 20.00mm x 8.00mm

Viewing Area:: 36.00mm L x 10.00mm W

Backlight:: Without Backlight

Voltage - Supply:: 5V

Dot Size:: 0.33mm W x 0.35mm H

Interface:: Parallel

Controller Type:: ST7066U

Operating Temperature:: -20°C ~ 70°C

Text Color:: Black

Background Color:: Yellow/Green

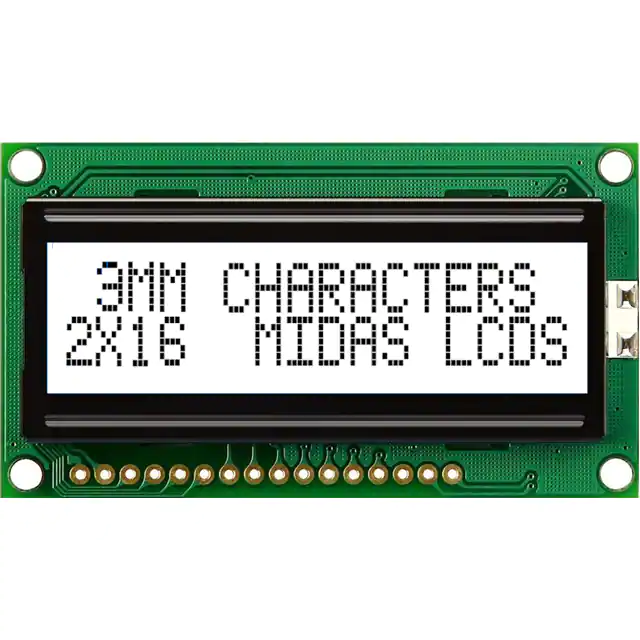

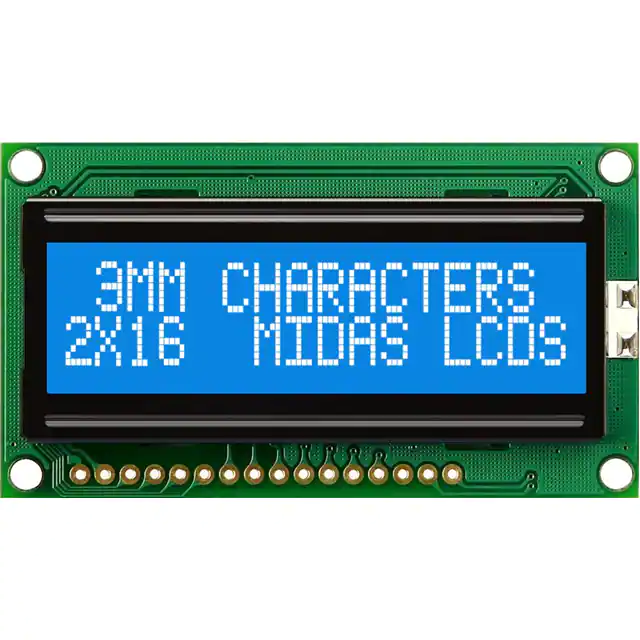

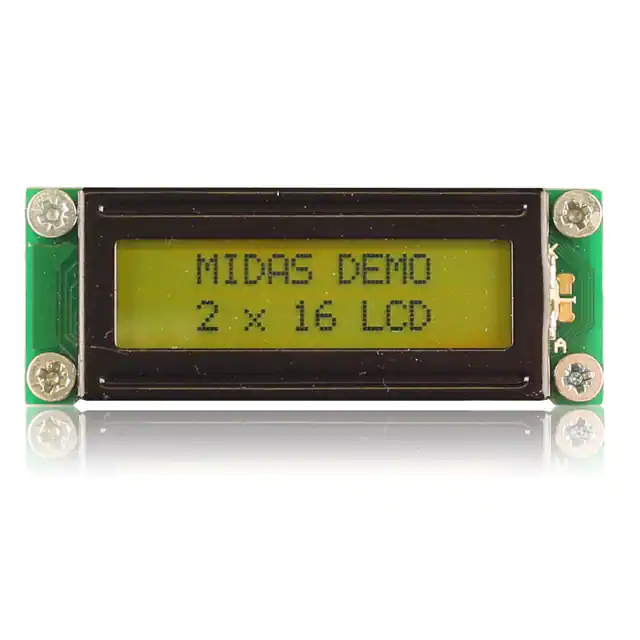

Part Number	MC21603A6W-SPR-V2	MC21603A6W-SPTLY-V2	MC21603A6W-BNMLW-V2	MC21603A6W-FPTLW-V2
Manufacturer	Midas Displays	Midas Displays	Midas Displays	Midas Displays
Series	MC21603A	MC21603A	MC21603A	MC21603A
Packaging	Tray	Tray	Tray	Tray
Product Status	Active	Active	Active	Active
Number of Characters	32.0	32.0	32.0	32.0
Display Format	16 x 2	16 x 2	16 x 2	16 x 2
Character Format	5 x 8 Dots	5 x 8 Dots	5 x 8 Dots	5 x 8 Dots
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	FSTN - Film Super-Twisted Nematic
Display Mode	Reflective	Transflective	Transmissive	Transflective
Character Size	3.15mm H x 1.85mm W	3.15mm H x 1.85mm W	3.15mm H x 1.85mm W	3.15mm H x 1.85mm W
Outline L x W x H	53.00mm x 20.00mm x 8.00mm	53.00mm x 20.00mm x 8.00mm	53.00mm x 20.00mm x 8.00mm	53.00mm x 20.00mm x 8.00mm
Viewing Area	36.00mm L x 10.00mm W	36.00mm L x 10.00mm W	36.00mm L x 10.00mm W	36.00mm L x 10.00mm W
Backlight	Without Backlight	LED - Yellow/Green	LED - White	LED - White
Voltage - Supply	5V	5V	5V	5V
Dot Size	0.33mm W x 0.35mm H	0.33mm W x 0.35mm H	0.33mm W x 0.35mm H	0.33mm W x 0.35mm H
Interface	Parallel	Parallel	Parallel	Parallel
Controller Type	ST7066U	ST7066U	ST7066U	ST7066U
Operating Temperature	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C	-20°C ~ 70°C
Text Color	Black	Black	White	Black
Background Color	Yellow/Green	Yellow/Green	Blue	White
