Analog Devices Inc./Maxim Integrated MAX6817EUT+T
- Part No.:
- MAX6817EUT+T
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Specialized ICs
- Package:
- SOT-23-6
- Description:
- IC SWITCH DEBOUNCER SOT6
- Quantity:
Unit Price:$7.60
Ext Price:$7.60
- Payment:
- Shipping:
Product Details
MAX6817EUT+T - Dual CMOS Switch Debouncer
MAX6817EUT+T from Analog Devices / Maxim Integrated is a dual-channel protected mechanical-switch debouncer for microcontroller inputs in a six-pin SOT-23 package supplied on tape and reel.
Specifications were checked against the manufacturer data sheet and current distributor listing.
Overview
MAX6817 samples two mechanical-switch inputs and updates each CMOS output after the input remains stable for the qualification interval. It combines input fault and ESD protection with an internal oscillator and timing circuit.
Key Advantages
Removes contact bounce on two independent switch inputs without timing components.
Protects each switch input against high-voltage faults and ESD in a compact package.
Available in an established surface-mount or through-hole ordering format.
Electrical and environmental limits are defined by the official data sheet.
Feature Summary
Two-channel CMOS mechanical-switch debouncer
Two switch inputs with two corresponding CMOS logic outputs
2.7 V to 5.5 V supply; -40 C to +125 C E-grade operating temperature
SOT-23-6
Package & Footprint

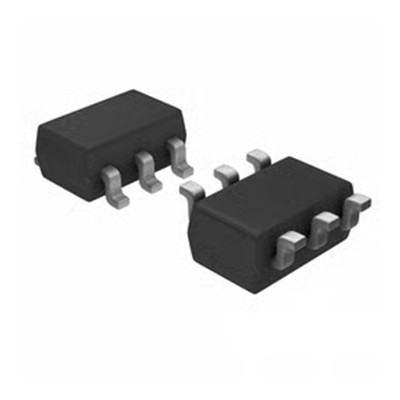

This ordering code uses the SOT-23-6 package.
Pin Functions
Confirm exact numbering and the latest land pattern before PCB release.
Key Specifications
| Function | Dual switch debouncer |
|---|---|
| Number of channels | 2 |
| Supply voltage | 2.7 V to 5.5 V |
| E-grade temperature | -40 C to +125 C |
| Debounce duration | 20 to 80 ms; 50 ms typical for MAX6817EUT |
| Supply current | 6 microamperes typical at VCC = 5 V, outputs unloaded and inputs high |
| Switch input voltage | +/-25 V operating input range |
| Input HBM ESD | +/-15 kV |
| Input IEC contact ESD | +/-8 kV |
| Input pull-up | 32 to 100 kilohms; 63 kilohms typical |
| Outputs | Two CMOS debounced outputs |
| Package | Six-pin SOT-23 |
| Ordering medium | Tape and reel |
Replacement Considerations
MAX6817MUT+T is a related product in the library. Confirm electrical behavior, package, pinout, ordering media and configuration before substitution.
Similarity of family name or package does not establish drop-in compatibility.
Manufacturer Information
Analog Devices maintains the former Maxim Integrated MAX6816/17/18 family. The linked M-grade model has a wider -55 C to +125 C temperature range and a separately specified 17 to 90 ms debounce duration; verify timing, marking and qualification before substitution.
Applications
Supplies stable logic levels from two mechanical contacts.
Filters contact bounce and protects panel-switch inputs.
Quality & Authenticity
Match the complete ordering code, package marking and reel or lot label to authorized-channel records. Inspect moisture handling and solderability requirements before assembly.
FAQ
What is the main function?
Two-channel CMOS mechanical-switch debouncer
What package is used?
SOT-23-6
Can the related part be substituted directly?
No. Validate all electrical, mechanical and configuration differences first.
Is the package image ready?
No. The registered package JPG is currently missing.
Engineering Notice
Use the latest manufacturer documentation for schematic, PCB, thermal and production approval. Distributor attributes are useful for sourcing but do not replace the official data sheet.
MAX6817EUT+T Information
- Specifications
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Series:
- -
- Package/Case:
- SOT-23-6
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Switch Debouncer
- Applications:
- µP Switch Interfacing
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOT-6
- Grade:
- -
- Qualification:
- -
