Analog Devices Inc./Maxim Integrated MAX5805BATB+
- Part No.:
- MAX5805BATB+
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Digital to Analog Converters (DAC)
- Package:
- 10-WFDFN Exposed Pad
- Datasheet:
-
MAX5805BATB+.pdf
- Description:
- IC DAC 12BIT DUAL 10TDFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MAX5805BATB+ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Series:
- -
- Package/Case:
- 10-WFDFN Exposed Pad
- Packaging:
- Strip
- Product Status:
- Active
- Programmable:
- Not Verified
- Number of Bits:
- 12
- Number of D/A Converters:
- 1
- Settling Time:
- 6.3µs (Typ)
- Output Type:
- Voltage - Buffered
- Differential Output:
- No
- Data Interface:
- I2C
- Reference Type:
- External, Internal
- Voltage - Supply, Analog:
- 2.7V ~ 5.5V
- Voltage - Supply, Digital:
- 2.7V ~ 5.5V
- INL/DNL (LSB):
- ±0.5, ±0.2
- Architecture:
- R-2R
- Operating Temperature:
- -40°C ~ 125°C
- Supplier Device Package:
- 10-TDFN (3x2)
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -

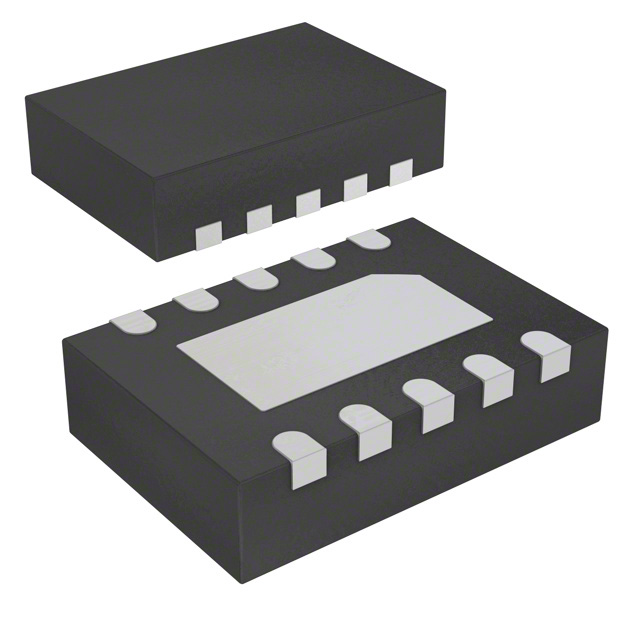

| Image |  |
.jpg) |
| Part Number | MAX5805BATB+T | MAX5805BATB+ |
| Manufacturer | Analog Devices Inc./Maxim Integrated | Analog Devices Inc./Maxim Integrated |
| Series | - | - |
| Package/Case | 10-WFDFN Exposed Pad | 10-WFDFN Exposed Pad |
| Packaging | Tape & Reel (TR) | Strip |
| Product Status | Active | Active |
| Programmable | Not Verified | Not Verified |
| Number of Bits | 12 | 12 |
| Number of D/A Converters | 1 | 1 |
| Settling Time | 6.3µs (Typ) | 6.3µs (Typ) |
| Output Type | Voltage - Buffered | Voltage - Buffered |
| Differential Output | No | No |
| Data Interface | I2C | I2C |
| Reference Type | External, Internal | External, Internal |
| Voltage - Supply, Analog | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Digital | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| INL/DNL (LSB) | ±0.5, ±0.2 | ±0.5, ±0.2 |
| Architecture | R-2R | R-2R |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C |
| Supplier Device Package | 10-TDFN (3x2) | 10-TDFN (3x2) |
| Mounting Type | Surface Mount | Surface Mount |
| Grade | - | - |
| Qualification | - | - |
