Analog Devices Inc./Maxim Integrated MAX22505GTG+T
- Part No.:
- MAX22505GTG+T
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Specialized ICs
- Package:
- 24-WFQFN Exposed Pad
- Description:
- IC USB PORT PROTECTOR 24TQFN
- Quantity:
Unit Price:$4.58
Ext Price:$4.58
- Payment:
- Shipping:
Product Details
MAX22505GTG+T - High-Speed USB Port Protector, 24-Pin TQFN
MAX22505GTG+T from Analog Devices is a USB 2.0 port protector rated for high-speed signaling with fault protection for USB data and power paths in a 24-pin TQFN exposed-pad package.
Specifications were checked against the manufacturer data sheet and current distributor listing.
Overview
MAX22505 protects USB ports in industrial equipment from miswired supplies. It supports low-, full- and high-speed USB traffic and allows optional external MOSFETs to reduce power-path resistance. The GTG+T order code is the tape-and-reel TQFN version.
Key Advantages
Integrated fault sensing protects the host USB port against industrial wiring mistakes.
Optional external MOSFET drive supports lower-resistance VBUS and ground paths.
Available in an established surface-mount or through-hole ordering format.
Electrical and environmental limits are defined by the official data sheet.
Feature Summary
High-speed USB port protector
USB 2.0 low, full and high speed
3.0 to 5.5 V supply; -40 to +105 C
24-WFQFN Exposed Pad
Package & Footprint

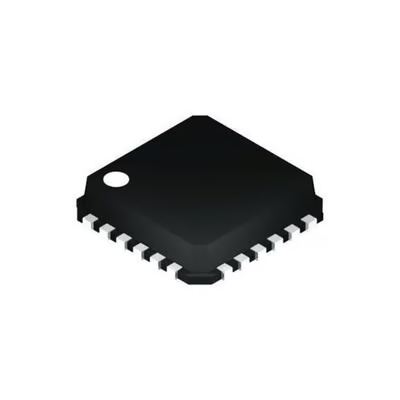

This ordering code uses the 24-WFQFN Exposed Pad package.
Pin Functions
Confirm exact numbering and the latest land pattern before PCB release.
Key Specifications
| Function | USB 2.0 port protector |
|---|---|
| Data rates | Low 1.5, full 12 and high 480 Mb/s |
| Supply voltage | 3.0 to 5.5 V |
| VBUS / GND dc protection | Up to +/-50 V |
| D+ / D- dc protection | Up to +/-40.7 V |
| Path resistance | 4 ohm typical VBUS/data; 1 ohm maximum GND |
| Fault interface | Open-drain FLTB |
| Temperature | -40 to +105 C |
| Package | 24-pin TQFN, 4 x 4 mm, exposed pad |
| Ordering format | Tape and reel |
Replacement Considerations
MAX22505GTG+ is a related product in the library. Confirm electrical behavior, package, pinout, ordering media and configuration before substitution.
Similarity of family name or package does not establish drop-in compatibility.
Manufacturer Information
Analog Devices MAX22505 Rev. 2 data sheet lists the exact GTG+T ordering code, 24-pin map, operating conditions and application circuit.
Applications
Protects a service port in industrial control equipment.
Adds fault tolerance to a USB interface exposed to field wiring.
Quality & Authenticity
Match the complete ordering code, package marking and reel or lot label to authorized-channel records. Inspect moisture handling and solderability requirements before assembly.
FAQ
What is the main function?
High-speed USB port protector
What package is used?
24-WFQFN Exposed Pad
Can the related part be substituted directly?
No. Validate all electrical, mechanical and configuration differences first.
Is the package image ready?
No. The registered package JPG is currently missing.
Engineering Notice
Use the latest manufacturer documentation for schematic, PCB, thermal and production approval. Distributor attributes are useful for sourcing but do not replace the official data sheet.
