Analog Devices Inc./Maxim Integrated MAX22196ATJ+
- Part No.:
- MAX22196ATJ+
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Specialized ICs
- Package:
- 32-WFQFN Exposed Pad
- Description:
- IC DIGITAL INPUT 32TQFN
- Quantity:
Unit Price:$7.72
Ext Price:$7.72
- Payment:
- Shipping:
Product Details
MAX22196ATJ+ - Octal Industrial Sink/Source Digital Input
MAX22196ATJ+ from Analog Devices / Maxim Integrated is an eight-channel industrial sink/source digital input IC in a 32-pin 5 mm by 5 mm TQFN with exposed pad, supplied in tubes.
Specifications were checked against the manufacturer data sheet and current distributor listing.
Overview
Each of eight field inputs can be configured independently for sink or source operation and IEC 61131-2 Type 1/3, Type 2, TTL or high-impedance modes. SPI reports input states and diagnostics.
Key Advantages
Provides eight configurable 24 V field-input channels with programmable input filtering.
Combines SPI, CRC, diagnostics, LED outputs and a 5 V regulator for industrial modules.
Available in an established surface-mount or through-hole ordering format.
Electrical and environmental limits are defined by the official data sheet.
Feature Summary
Eight-channel industrial digital input
Field inputs and addressable or daisy-chain SPI
8 V to 36 V field supply; 2.5 V to 5.5 V logic; -40 C to +125 C
32-WFQFN Exposed Pad
Package & Footprint

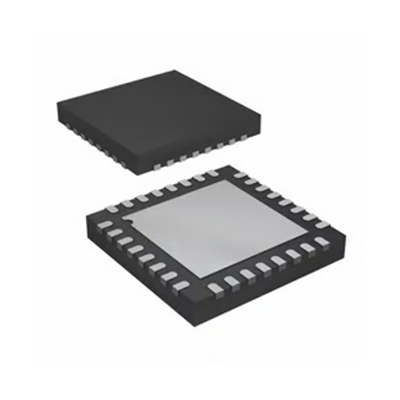

This ordering code uses the 32-WFQFN Exposed Pad package.
Pin Functions
Confirm exact numbering and the latest land pattern before PCB release.
Key Specifications
| Channels | 8 independently configured sink/source inputs |
|---|---|
| Input modes | IEC 61131-2 Type 1/3, Type 2, TTL and high impedance |
| Field supply | 8 V to 36 V |
| Logic supply | 2.5 V to 5.5 V |
| Operating temperature | -40 C to +125 C |
| Input current setting | 0.5 mA to 6.75 mA, resistor set |
| SPI clock | 12 MHz maximum per data sheet |
| Input filters | Programmable glitch/debounce filtering |
| Input counter | Optional 16-bit down counter per channel |
| Regulator | Integrated 5 V, 20 mA linear regulator |
| Field supply current | 2 mA maximum under stated conditions |
| Package | 32-pin 5 mm by 5 mm TQFN with exposed pad |
| Ordering medium | Tube |
Replacement Considerations
MAX22196ATJ+T is a related product in the library. Confirm electrical behavior, package, pinout, ordering media and configuration before substitution.
Similarity of family name or package does not establish drop-in compatibility.
Manufacturer Information
Analog Devices MAX22196 Rev. 0 data sheet lists the exact ATJ+ tube and ATJ+T tape-and-reel variants. Verify assembly media and procurement before substitution.
Applications
Conditions eight industrial field signals for an SPI-connected controller.
Provides selectable sink/source inputs with fault monitoring.
Quality & Authenticity
Match the complete ordering code, package marking and reel or lot label to authorized-channel records. Inspect moisture handling and solderability requirements before assembly.
FAQ
What is the main function?
Eight-channel industrial digital input
What package is used?
32-WFQFN Exposed Pad
Can the related part be substituted directly?
No. Validate all electrical, mechanical and configuration differences first.
Is the package image ready?
No. The registered package JPG is currently missing.
Engineering Notice
Use the latest manufacturer documentation for schematic, PCB, thermal and production approval. Distributor attributes are useful for sourcing but do not replace the official data sheet.
