Analog Devices Inc./Maxim Integrated MAX1329BETL+
- Part No.:
- MAX1329BETL+
- Manufacturer:
- Analog Devices Inc./Maxim Integrated
- Category:
- Specialized ICs
- Package:
- 40-WFQFN Exposed Pad
- Description:
- IC DATA ACQU SYST 40TQFN
- Quantity:
Unit Price:$15.59
Ext Price:$15.59
- Payment:
- Shipping:
Product Details
MAX1329BETL+ - Integrated 12-/16-Bit Data-Acquisition System
MAX1329BETL+ from Analog Devices Inc./Maxim Integrated is a mixed-signal data-acquisition system integrating a SAR ADC, dual force-sense DACs, programmable I/O, reference, monitors and temperature sensing.
Specifications were checked against the manufacturer data sheet and current distributor listing.
Overview
MAX1329 combines a 12-bit 312 ksps SAR ADC with a 16-bit 1 ksps DSP mode, dual 12-bit force-sense DACs, PGA, FIFO, references, analog functions and serial control.
Key Advantages
High mixed-signal integration reduces external ADC, DAC, reference and monitoring components.
Programmable analog and digital I/O plus alarms and FIFOs support flexible portable instruments.
Available in an established surface-mount or through-hole ordering format.
Electrical and environmental limits are defined by the official data sheet.
Feature Summary
Integrated mixed-signal data-acquisition system
Four-wire SPI, QSPI or MICROWIRE-compatible serial interface
1.8 V to 3.6 V digital supply; 2.7 V to 5.5 V analog charge-pump domain; -40 C to +85 C
40-WFQFN Exposed Pad
Package & Footprint

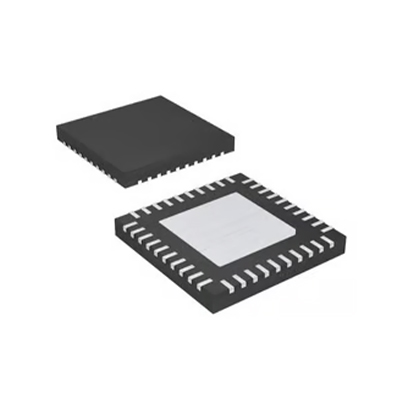

This ordering code uses the 40-WFQFN Exposed Pad package.
Pin Functions
Confirm exact numbering and the latest land pattern before PCB release.
Key Specifications
| ADC | 12 bit at 312 ksps |
|---|---|
| DSP mode | 16 bit at 1 ksps |
| Inputs | 16-input differential multiplexer |
| PGA | Gains 1, 2, 4 and 8 |
| DACs | Two 12-bit force-sense |
| Reference | Internal 2.5 V |
| Programmable I/O | 4 analog and 4 digital |
| Package | 40-TQFN 6 mm x 6 mm |
Replacement Considerations
No database-listed substitute was linked without exact functional, package and pinout verification.
Manufacturer Information
The exact industrial-temperature MAX1329BETL+ tube order code is listed as production.
Applications
Combines measurement and stimulus functions in one IC.
Interfaces precision sensors with local analog control.
Quality & Authenticity
Match the complete ordering code, package marking and reel or lot label to authorized-channel records. Inspect moisture handling and solderability requirements before assembly.
FAQ
What is the main function?
Integrated mixed-signal data-acquisition system
What package is used?
40-WFQFN Exposed Pad
Is a verified internal replacement available?
No exact internal replacement was verified. Review any candidate against the manufacturer documentation.
Is the package image ready?
No. The registered package JPG is currently missing.
Engineering Notice
Use the latest manufacturer documentation for schematic, PCB, thermal and production approval. Distributor attributes are useful for sourcing but do not replace the official data sheet.
