MACOM Technology Solutions MAFL-010465-CD0B20
- Part No.:
- MAFL-010465-CD0B20
- Manufacturer:
- MACOM Technology Solutions
- Category:
- RF Multiplexers
- Package:
- Module
- Description:
- BALUN TRANSFORMER
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
MAFL-010465-CD0B20 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- MACOM Technology Solutions
- Series:
- -
- Package/Case:
- Module
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Type:
- Diplexer
- Frequency Bands (Low / High):
- 5MHz ~ 42MHz / 88MHz ~ 1.002GHz
- Low Band Attenuation (min / max dB):
- -
- High Band Attenuation (min / max dB):
- -
- Return Loss (Low Band / High Band):
- 15.0dB / 12.0dB
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
| Image |  |
 |
 |
 |
|

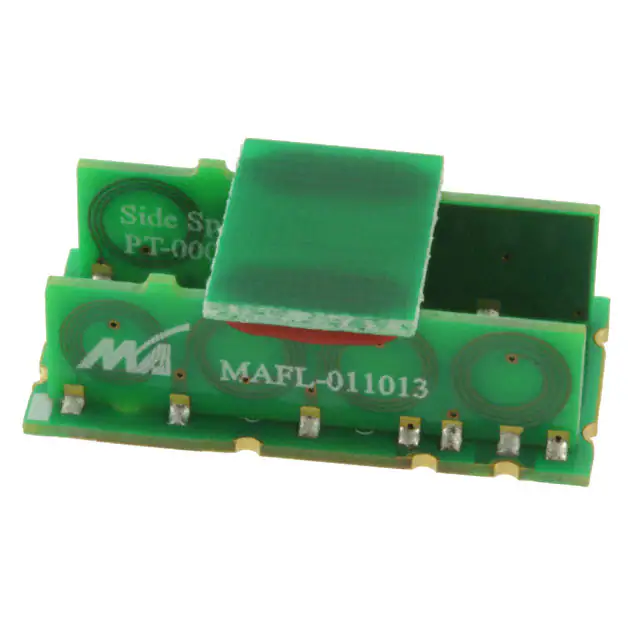

| Part Number | MAFL-011024 | MAFL-011077 | MAFL-011078 | MAFL-011013 | MAFL-011057 |
| Manufacturer | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions | MACOM Technology Solutions |
| Series | - | - | - | - | - |
| Package/Case | 11-SMD Module | 20-SMD, No Lead | 20-SMD, No Lead | 11-SMD Module | Module |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Diplexer | Diplexer | Diplexer | Diplexer | Diplexer |
| Frequency Bands (Low / High) | 5MHz ~ 85MHz / 108MHz ~ 1.002GHz | 5MHz ~ 85MHz / 102MHz ~ 1.218GHz | 5MHz ~ 42MHz / 54MHz ~ 1.218GHz | 5MHz ~ 42MHz / 54MHz ~ 1GHz | - |
| Low Band Attenuation (min / max dB) | - | - | - | - | - |
| High Band Attenuation (min / max dB) | - | - | - | - | - |
| Return Loss (Low Band / High Band) | 16.0dB / 16.0dB | 24.0dB / 24.0dB | 24.0dB / 24.0dB | 16.0dB / 16.0dB | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
