STMicroelectronics M48T12-70PC1
- Part No.:
- M48T12-70PC1
- Manufacturer:
- STMicroelectronics
- Category:
- Real Time Clocks
- Package:
- 24-DIP Module (0.600", 15.24mm)
- Datasheet:
-
M48T12-70PC1.pdf
- Description:
- IC RTC CLK/CALENDAR PAR 24DIP
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
M48T12-70PC1 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- STMicroelectronics
- Series:
- Timekeeper®
- Package/Case:
- 24-DIP Module (0.600", 15.24mm)
- Packaging:
- Tube
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Clock/Calendar
- Features:
- Leap Year
- Memory Size:
- -
- Time Format:
- HH:MM:SS (24 hr)
- Date Format:
- YY-MM-DD-dd
- Interface:
- Parallel
- Voltage - Supply:
- 4.5V ~ 5.5V
- Voltage - Supply, Battery:
- -
- Current - Timekeeping (Max):
- 3mA @ 4.5V ~ 5.5V
- Operating Temperature:
- 0°C ~ 70°C
- Mounting Type:
- Through Hole
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 24-PCDIP, CAPHAT®
| Image |  |
|
|
 |
 |

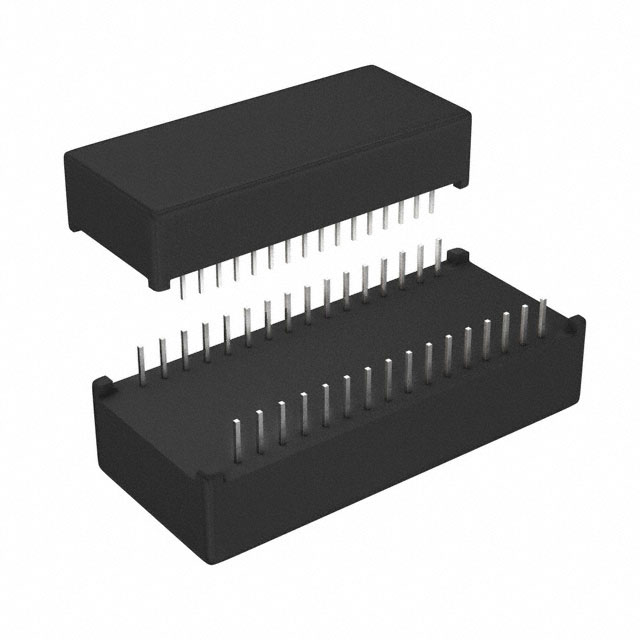

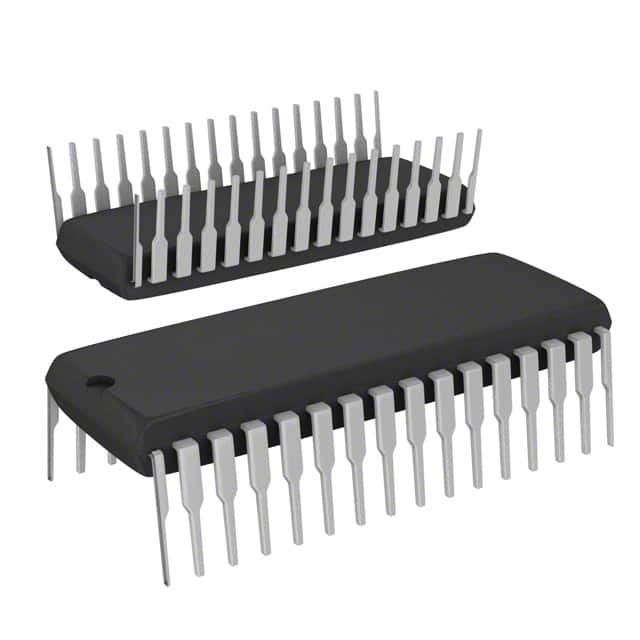

| Part Number | M48T12-70PC1 | M48T12-150PC1 | M48T12-200PC1 | M48T128Y-70PM1 | M48T129V-85PM1 |
| Manufacturer | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics | STMicroelectronics |
| Series | Timekeeper® | Timekeeper® | Timekeeper® | Timekeeper® | Timekeeper® |
| Package/Case | 24-DIP Module (0.600", 15.24mm) | 24-DIP Module (0.600", 15.24mm) | 24-DIP Module (0.600", 15.24mm) | 32-DIP Module (0.600", 15.24mm) | 32-DIP Module (0.600", 15.24mm) |
| Packaging | Tube | Tube | Tube | Tube | Tube |
| Product Status | Active | Active | Obsolete | Obsolete | Obsolete |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Type | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar |
| Features | Leap Year | Leap Year | Leap Year | Leap Year | Alarm, Leap Year, Watchdog Timer |
| Memory Size | - | - | - | - | - |
| Time Format | HH:MM:SS (24 hr) | HH:MM:SS (24 hr) | HH:MM:SS (24 hr) | HH:MM:SS (24 hr) | HH:MM:SS (24 hr) |
| Date Format | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd |
| Interface | Parallel | Parallel | Parallel | Parallel | Parallel |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 3V ~ 3.6V |
| Voltage - Supply, Battery | - | - | - | - | - |
| Current - Timekeeping (Max) | 3mA @ 4.5V ~ 5.5V | 3mA @ 4.5V ~ 5.5V | 3mA @ 4.5V ~ 5.5V | 4mA @ 4.5V ~ 5.5V | 3mA @ 3V ~ 3.6V |
| Operating Temperature | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C | 0°C ~ 70°C |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 24-PCDIP, CAPHAT® | 24-PCDIP, CAPHAT® | 24-PCDIP, CAPHAT® | 32-PMDIP | 32-PMDIP Module |
