Omron Automation and Safety LY2-DC12
- Part No.:
- LY2-DC12
- Manufacturer:
- Omron Automation and Safety
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
LY2-DC12.pdf
- Description:
- RELAY GEN PURPOSE DPDT 10A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LY2-DC12 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Automation and Safety
- Series:
- LY
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Socketable
- Coil Voltage:
- 12VDC
- Contact Form:
- DPDT (2 Form C)
- Contact Rating (Current):
- 10 A
- Switching Voltage:
- 250VAC, 125VDC - Max
- Load - Max Switching:
- 2500VA, 1250W
- Coil Current:
- 75 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Plug In
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- 9.6 VDC
- Must Release Voltage:
- 1.2 VDC
- Operate Time:
- 25 ms
- Release Time:
- 25 ms
- Operating Temperature:
- -25°C ~ 55°C
- Contact Material:
- Silver Alloy
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
|

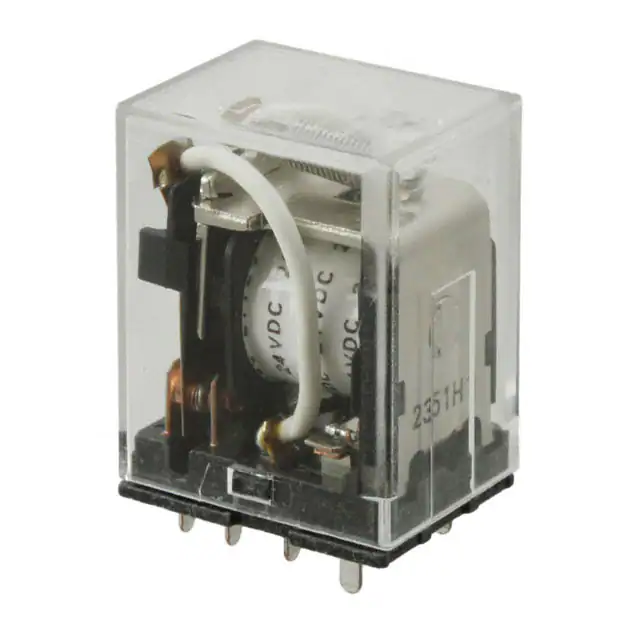

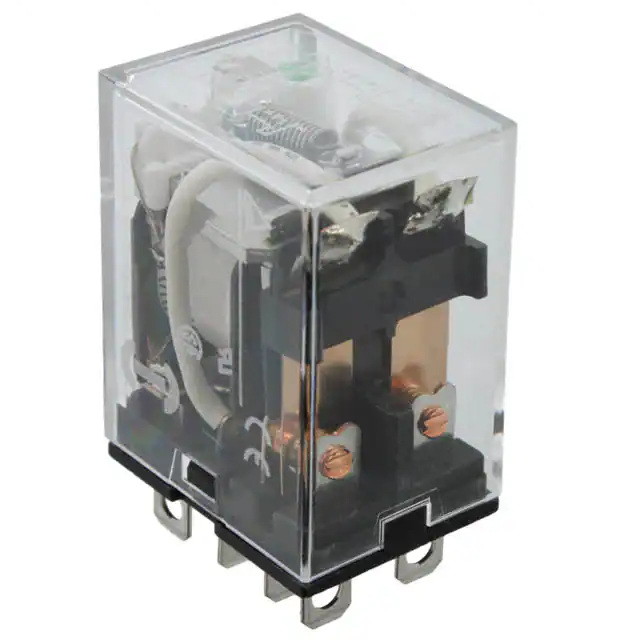

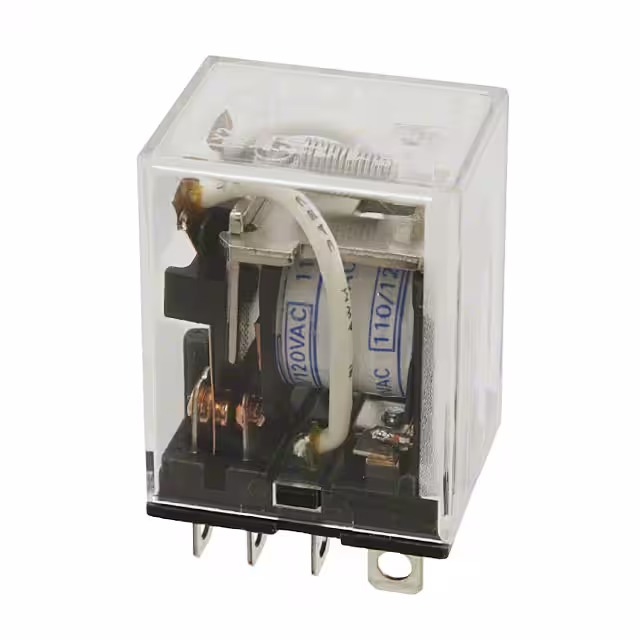

| Part Number | LY2-DC12 | LY2-0-DC24 | LY2N-DC24 | LY2-AC110/120 | LY2-DC24 |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| Series | LY | LY | LY | LY | LY |
| Packaging | Bulk | Bulk | Tray | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Socketable | Through Hole | Socketable | Socketable | Socketable |
| Coil Voltage | 12VDC | 24VDC | 24VDC | 120VAC | 24VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Rating (Current) | 10 A | 10 A | 10 A | 10 A | 10 A |
| Switching Voltage | 250VAC, 125VDC - Max | 250VAC, 125VDC - Max | 250VAC, 125VDC - Max | 250VAC, 125VDC - Max | 250VAC, 125VDC - Max |
| Load - Max Switching | 2500VA, 1250W | 2500VA, 1250W | 2500VA, 1250W | 2500VA, 1250W | 2500VA, 1250W |
| Coil Current | 75 mA | 36.9 mA | 36.9 mA | 9.2 mA | 36.9 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | Lighted Indicator | - | - |
| Termination Style | Plug In | PC Pin | Plug In | Plug In | Plug In |
| Seal Rating | - | - | - | - | - |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 9.6 VDC | 19.2 VDC | 19.2 VDC | 96 VAC | 19.2 VDC |
| Must Release Voltage | 1.2 VDC | 2.4 VDC | 2.4 VDC | 36 VAC | 2.4 VDC |
| Operate Time | 25 ms | 25 ms | 25 ms | 25 ms | 25 ms |
| Release Time | 25 ms | 25 ms | 25 ms | 25 ms | 25 ms |
| Operating Temperature | -25°C ~ 55°C | -25°C ~ 55°C | -25°C ~ 55°C | -25°C ~ 55°C | -25°C ~ 55°C |
| Contact Material | Silver Alloy | Silver Alloy | Silver Alloy | Silver Alloy | Silver Alloy |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
