Omron Automation and Safety LY1-DC24
- Part No.:
- LY1-DC24
- Manufacturer:
- Omron Automation and Safety
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
LY1-DC24.pdf
- Description:
- RELAY GEN PURPOSE SPDT 15A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LY1-DC24 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Automation and Safety
- Series:
- LY
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Socketable
- Coil Voltage:
- 24VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 15 A
- Switching Voltage:
- 250VAC, 125VDC - Max
- Load - Max Switching:
- 3750VA, 1875W
- Coil Current:
- 36.9 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Plug In
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- 19.2 VDC
- Must Release Voltage:
- 2.4 VDC
- Operate Time:
- 25 ms
- Release Time:
- 25 ms
- Operating Temperature:
- -25°C ~ 55°C
- Contact Material:
- Silver Alloy
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
|
|
 |

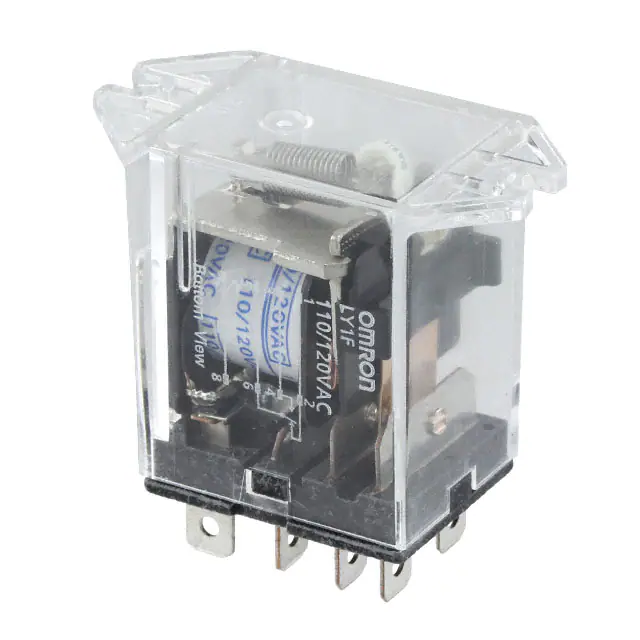

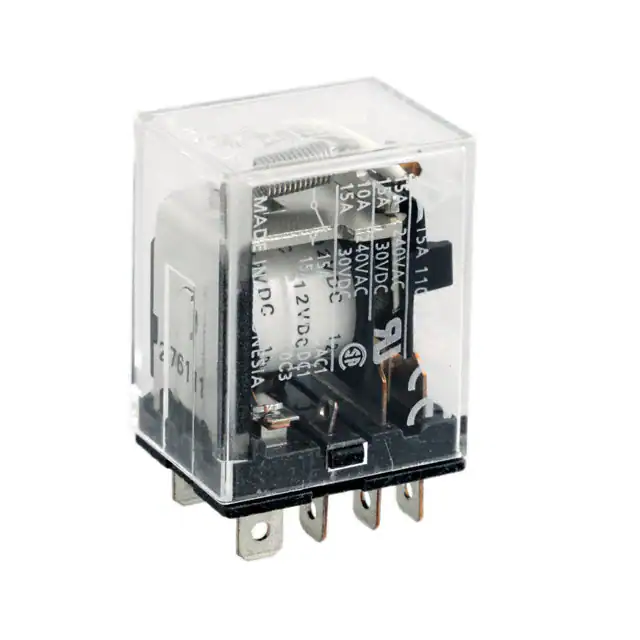

| Part Number | LY1-DC24 | LY1F-AC110/120 | LY1F-DC12 | LY1F-AC220/240 | LY1-DC12 |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| Series | LY | LY | LY | LY | LY |
| Packaging | Bulk | Bulk | Bulk | Tray | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Socketable | Chassis Mount | Chassis Mount | Chassis Mount | Socketable |
| Coil Voltage | 24VDC | 120VAC | 12VDC | 240VAC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 15 A | 15 A | 15 A | 15 A | 15 A |
| Switching Voltage | 250VAC, 125VDC - Max | 250VAC, 125VDC - Max | 250VAC, 125VDC - Max | 250VAC, 125VDC - Max | 250VAC, 125VDC - Max |
| Load - Max Switching | 3750VA, 1875W | 3750VA, 1875W | 3750VA, 1875W | 3750VA, 1875W | 3750VA, 1875W |
| Coil Current | 36.9 mA | 9.2 mA | 75 mA | 4.6 mA | 75 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | Plug In | Plug In | Plug In | Plug In | Plug In |
| Seal Rating | - | - | - | - | - |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 19.2 VDC | 96 VAC | 9.6 VDC | 192 VAC | 9.6 VDC |
| Must Release Voltage | 2.4 VDC | 36 VAC | 1.2 VDC | 72 VAC | 1.2 VDC |
| Operate Time | 25 ms | 25 ms | 25 ms | 25 ms | 25 ms |
| Release Time | 25 ms | 25 ms | 25 ms | 25 ms | 25 ms |
| Operating Temperature | -25°C ~ 55°C | -25°C ~ 55°C | -25°C ~ 55°C | -25°C ~ 55°C | -25°C ~ 55°C |
| Contact Material | Silver Alloy | Silver Alloy | Silver Alloy | Silver Alloy | Silver Alloy |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
