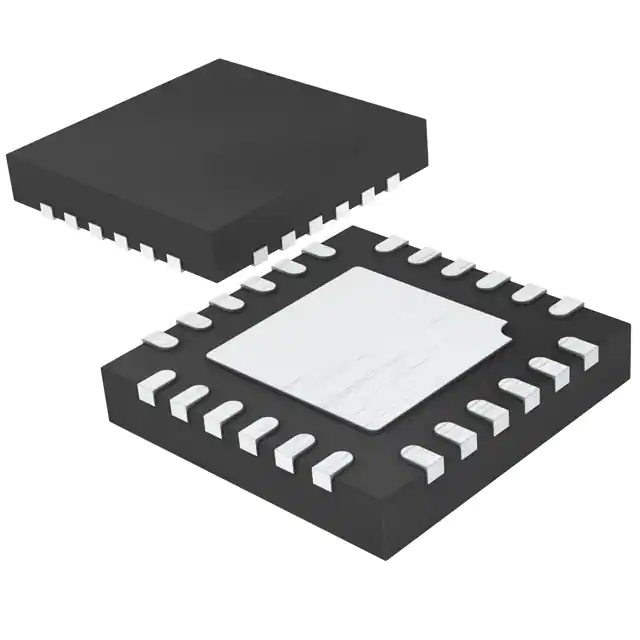

Analog Devices Inc. LTC5589IUF#PBF
- Part No.:
- LTC5589IUF#PBF
- Manufacturer:
- Analog Devices Inc.
- Category:
- RF Modulators
- Package:
- 24-WFQFN Exposed Pad
- Datasheet:
-
LTC5589IUF#PBF.pdf
- Description:
- RF MODULATOR 700MHZ-6GHZ 24WFQFN
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LTC5589IUF#PBF Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Analog Devices Inc.
- Series:
- -
- Package/Case:
- 24-WFQFN Exposed Pad
- Packaging:
- Tube
- Product Status:
- Active
- Function:
- Modulator
- LO Frequency:
- -
- RF Frequency:
- 700MHz ~ 6GHz
- P1dB:
- 4.6dBm
- Noise Floor:
- -160dBm/Hz
- Output Power:
- -6dBm
- Current - Supply:
- 29.35 mA
- Voltage - Supply:
- 2.7V ~ 3.6V
- Test Frequency:
- 6GHz
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 24-QFN (4x4)
| Image |  |
|
|
| Part Number | LTC5589IUF#PBF | LTC5589IUF#TRPBF | LTC5589IUF |
| Manufacturer | Analog Devices Inc. | Analog Devices Inc. | Analog Devices Inc. |
| Series | - | - | - |
| Package/Case | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad | 24-WFQFN Exposed Pad |
| Packaging | Tube | Tape & Reel (TR) | Tube |
| Product Status | Active | Active | Obsolete |
| Function | Modulator | Modulator | Modulator |
| LO Frequency | - | - | - |
| RF Frequency | 700MHz ~ 6GHz | 700MHz ~ 6GHz | 700MHz ~ 6GHz |
| P1dB | 4.6dBm | 4.6dBm | 4.6dBm |
| Noise Floor | -160dBm/Hz | -160dBm/Hz | -160dBm/Hz |
| Output Power | -6dBm | - | -6dBm |
| Current - Supply | 29.35 mA | 29.35 mA | 29.35 mA |
| Voltage - Supply | 2.7V ~ 3.6V | 2.7V ~ 3.6V | 2.7V ~ 3.6V |
| Test Frequency | 6GHz | 6GHz | 6GHz |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | 24-QFN (4x4) | 24-QFN (4x4) | 24-QFN (4x4) |
- Include Parts
- Popular Search
The following parts include "LTC5589IUF#PBF" in Silicon Labs LTC5589IUF#PBF.
- Part Number
- Manufacturer
- Package
- Description
- LTC5599IUF#TRPBF Analog Devices Inc. 24-WFQFN Exposed Pad RF MODULATOR 30MHZ-1.3GHZ 24QFN
- LTC5599IUF#PBF Analog Devices Inc. 24-WFQFN Exposed Pad RF MODULATOR 30MHZ-1.3GHZ 24QFN
- LTC5589IUF#PBF Analog Devices Inc. 24-WFQFN Exposed Pad RF MODULATOR 700MHZ-6GHZ 24WFQFN
- ADL5375-05ACPZ-R7 Analog Devices Inc. 24-WFQFN Exposed Pad, CSP RF MODULATOR 400MHZ-6GHZ 24WFQFN
- ADL5385ACPZ-R7 Analog Devices Inc. 24-WFQFN Exposed Pad, CSP RF MODULATOR 50MHZ-2.2GHZ 24QFN
- AD8346ARUZ-REEL7 Analog Devices Inc. 16-TSSOP (0.173", 4.40mm Width) RF MODULTR 800MHZ-2.5GHZ 16TSSOP
- LTC5588IPF-1#PBF Analog Devices Inc. 24-UFQFN Exposed Pad RF MODULATOR 200MHZ-6GHZ 24UFQFN
- ADRF6755ACPZ-R7 Analog Devices Inc. 56-VFQFN Exposed Pad, CSP RF MODULATOR 100MHZ-2.4GHZ 56QFN
- TRF370417IRGET Texas Instruments 24-VFQFN Exposed Pad RF MODULATOR 50MHZ-6GHZ 24VFQFN
- HMC631LP3ETR Analog Devices Inc. 16-VFQFN Exposed Pad RF MODULATOR 1.8GHZ-2.7GHZ 16QFN
