LTC4213ITS8#TRPBF - Industrial No-RSENSE Electronic Circuit Breaker
LTC4213ITS8#TRPBF from Analog Devices Inc. is an industrial-temperature fast electronic circuit-breaker controller for 0 V to 6 V loads using an external N-channel MOSFET without a sense resistor.
Specifications were checked against the manufacturer data sheet and current distributor listing.
Overview
LTC4213 detects external MOSFET drain-to-source voltage, trips overcurrent in about 1 microsecond and provides dual-level protection.
Key Advantages
No sense resistor reduces conduction loss and voltage drop.
Fast response, selectable thresholds, UVLO and READY simplify protected switching.
Available in an established surface-mount or through-hole ordering format.
Electrical and environmental limits are defined by the official data sheet.
Feature Summary
Low-voltage electronic circuit breaker
External MOSFET gate drive with READY, enable and threshold controls
0 V to 6 V load; 1 us trip; -40 C to +85 C industrial grade
SOT-23-8 Thin, TSOT-23-8
Package & Footprint

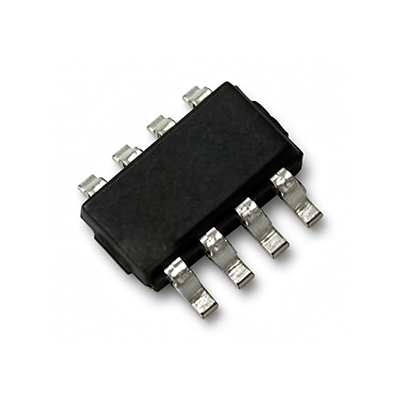

This ordering code uses the SOT-23-8 Thin, TSOT-23-8 package.
Pin Functions
Confirm exact numbering and the latest land pattern before PCB release.
Key Specifications
| Load voltage | 0 V to 6 V |
|---|---|
| Trip response | 1 us typical |
| Sense resistor | Not required |
| Thresholds | 3 selectable |
| Protection | Dual-level overcurrent |
| Switch | External N-channel MOSFET |
| Status | READY |
| Lockout | UVLO |
| Temperature | -40 C to +85 C |
| Package | SOT-23-8 Thin, TSOT-23-8 |
Replacement Considerations
LTC4213ITS8#TRMPBF is a related product in the library. Confirm electrical behavior, package, pinout, ordering media and configuration before substitution.
Similarity of family name or package does not establish drop-in compatibility.
Manufacturer Information
Exact industrial-temperature LTC4213 order code was checked.
Applications
Protects low-voltage modules during insertion and overload.
Disconnects shorted loads without a lossy shunt.
Quality & Authenticity
Match the complete ordering code, package marking and reel or lot label to authorized-channel records. Inspect moisture handling and solderability requirements before assembly.
FAQ
What is the main function?
Low-voltage electronic circuit breaker
What package is used?
SOT-23-8 Thin, TSOT-23-8
Can the related part be substituted directly?
No. Validate all electrical, mechanical and configuration differences first.
Is the package image ready?
No. The registered package JPG is currently missing.
Engineering Notice
Use the latest manufacturer documentation for schematic, PCB, thermal and production approval. Distributor attributes are useful for sourcing but do not replace the official data sheet.
LTC4213ITS8#TRPBF Information
