Allied Components International LS03-3R3J-RC
- Part No.:
- LS03-3R3J-RC
- Manufacturer:
- Allied Components International
- Category:
- Fixed Inductors
- Package:
- 0603 (1608 Metric)
- Description:
- 3.3uH +/-5% Ferrite Core Chip
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LS03-3R3J-RC Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Allied Components International
- Series:
- LS03
- Package/Case:
- 0603 (1608 Metric)
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Type:
- Wirewound
- Material - Core:
- Ferrite
- Inductance:
- 3.3 µH
- Tolerance:
- ±5%
- Current Rating (Amps):
- -
- Current - Saturation (Isat):
- 440mA
- Shielding:
- Unshielded
- DC Resistance (DCR):
- 1.5Ohm Max
- Q @ Freq:
- 17 @ 7.9MHz
- Frequency - Self Resonant:
- 84MHz
- Ratings:
- -
- Operating Temperature:
- -40°C ~ 125°C
- Inductance Frequency - Test:
- 7.9 MHz
- Features:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- 0603
- Size / Dimension:
- 0.071" L x 0.049" W (1.80mm x 1.25mm)
- Height - Seated (Max):
- 0.040" (1.02mm)

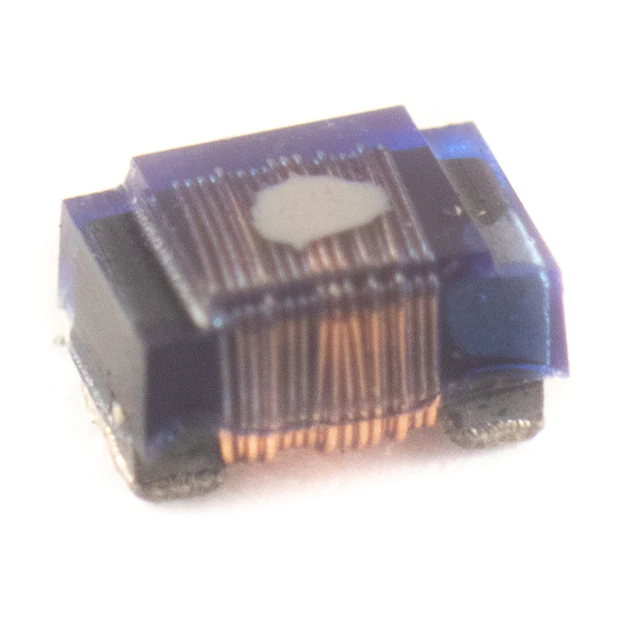

| Image |  |
 |
|
|
|
| Part Number | LS03-R47J-RC | LS03-R15J-RC | LS03-R10J-RC | LS03-R39J-RC | LS03-R27J-RC |
| Manufacturer | Allied Components International | Allied Components International | Allied Components International | Allied Components International | Allied Components International |
| Series | - | LS03 | LS03 | LS03 | LS03 |
| Package/Case | Nonstandard | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Type | Drum Core, Wirewound | Wirewound | Wirewound | Wirewound | Wirewound |
| Material - Core | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite |
| Inductance | 470 nH | 150 nH | 100 nH | 390 nH | 270 nH |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±5% |
| Current Rating (Amps) | 1.05 A | - | - | - | - |
| Current - Saturation (Isat) | - | 1.45A | 1.5A | 1.2A | 1.05A |
| Shielding | Unshielded | Unshielded | Unshielded | Unshielded | Unshielded |
| DC Resistance (DCR) | 620mOhm Max | 150mOhm Max | 130mOhm Max | 510mOhm Max | 300mOhm Max |
| Q @ Freq | 17 @ 7.9MHz | 17 @ 7.9MHz | 17 @ 7.9MHz | 17 @ 7.9MHz | 17 @ 7.9MHz |
| Frequency - Self Resonant | 720MHz | 1.35GHz | 1.65GHz | 810MHz | 1.05GHz |
| Ratings | - | - | - | - | - |
| Operating Temperature | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C | -40°C ~ 125°C |
| Inductance Frequency - Test | 7.9 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz | 7.9 MHz |
| Features | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | - | 0603 | 0603 | 0603 | 0603 |
| Size / Dimension | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.071" L x 0.049" W (1.80mm x 1.25mm) | 0.071" L x 0.049" W (1.80mm x 1.25mm) |
| Height - Seated (Max) | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.040" (1.02mm) | 0.040" (1.02mm) |
