Panasonic Electric Works LKT1AF-6V
- Part No.:
- LKT1AF-6V
- Manufacturer:
- Panasonic Electric Works
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- RELAY
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LKT1AF-6V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- LK-T
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Mounting Type:
- Through Hole
- Coil Voltage:
- 6VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 5 A
- Switching Voltage:
- 277VAC - Max
- Load - Max Switching:
- 1385VA
- Coil Current:
- -
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Flux Protection
- Coil Insulation:
- -
- Must Operate Voltage:
- -
- Must Release Voltage:
- -
- Operate Time:
- 15 ms
- Release Time:
- 5 ms
- Operating Temperature:
- -40°C ~ 70°C
- Contact Material:
- Silver Tin Oxide (AgSnO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

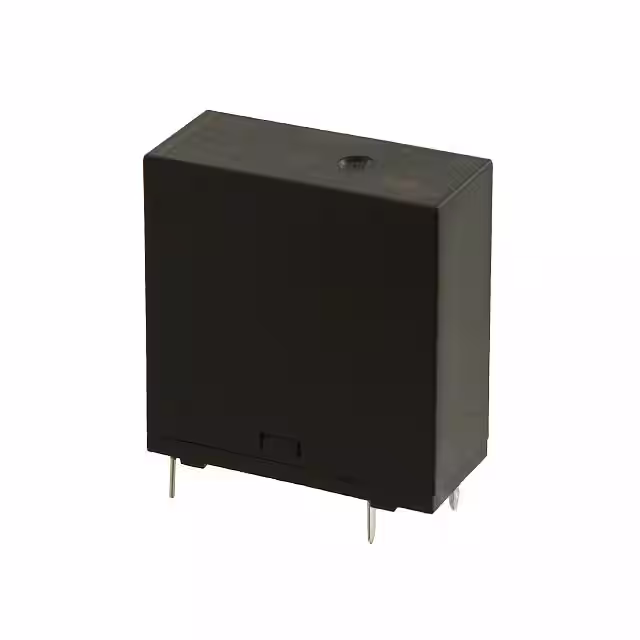

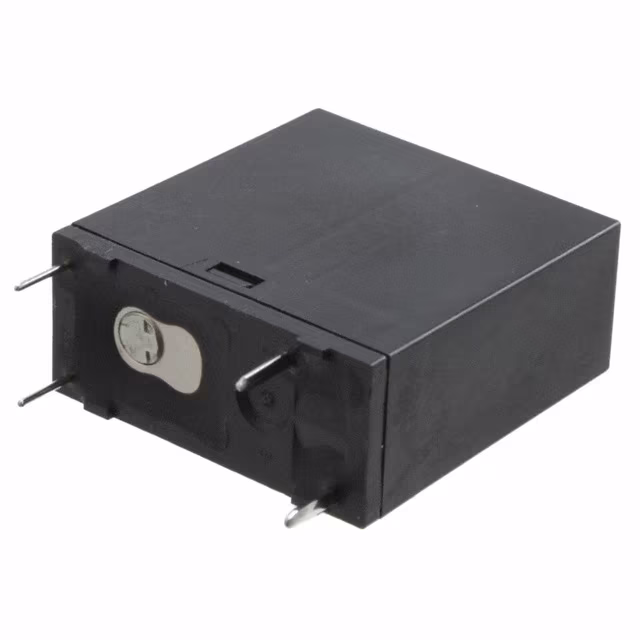

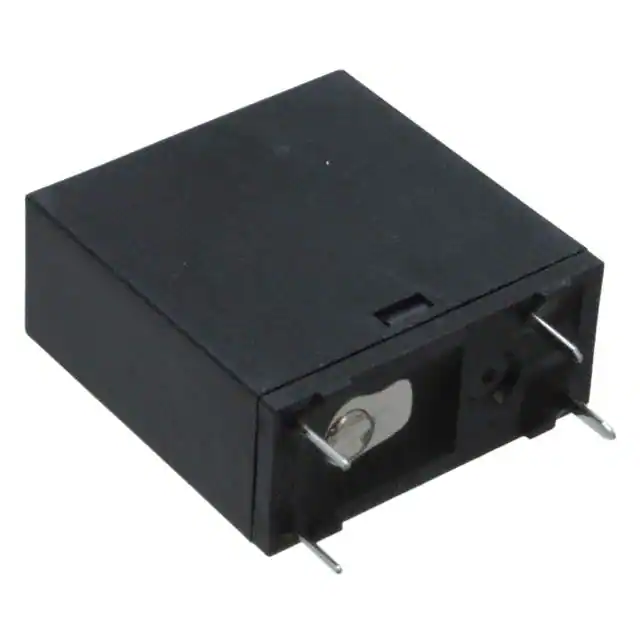

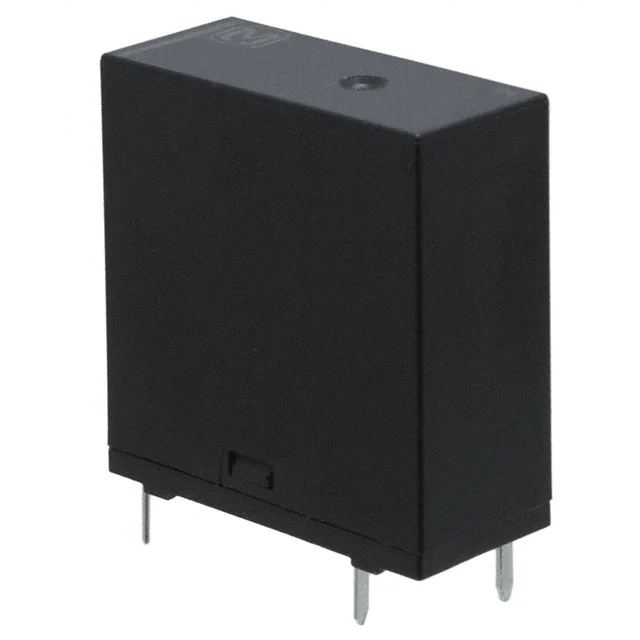

| Part Number | LKT1AF-5V | LKT1AF-12V | LKT1AF-9V | LKT1AF-24V | LKT1AF-18V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | LK-T | LK-T | LK-T | LK-T | LK-T |
| Packaging | Tray | Tray | Tray | Tray | Bulk |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 5VDC | 12VDC | 9VDC | 24VDC | 8VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 5 A | 5 A | 5 A | 5 A | 5 A |
| Switching Voltage | 277VAC - Max | 277VAC - Max | 277VAC - Max | 277VAC - Max | 277VAC - Max |
| Load - Max Switching | 1385VA | 1385VA | 1385VA | 1385VA | 1385VA |
| Coil Current | 50 mA | 20.8 mA | 27.8 mA | 10.4 mA | - |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Flux Protection | Sealed - Flux Protection | Sealed - Flux Protection | Sealed - Flux Protection | Sealed - Flux Protection |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 3.5 VDC | 8.4 VDC | 6.3 VDC | 16.8 VDC | - |
| Must Release Voltage | 0.5 VDC | 1.2 VDC | 0.9 VDC | 2.4 VDC | - |
| Operate Time | 15 ms | 15 ms | 15 ms | 15 ms | 15 ms |
| Release Time | 5 ms | 5 ms | 5 ms | 5 ms | 5 ms |
| Operating Temperature | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C | -40°C ~ 70°C |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
