Vishay Semiconductor Opto Division LH1546AAB
- Part No.:
- LH1546AAB
- Manufacturer:
- Vishay Semiconductor Opto Division
- Category:
- Solid State Relays (SSR)
- Package:
- 6-SMD (0.300", 7.62mm)
- Datasheet:
-
LH1546AAB.pdf
- Description:
- SSR RELAY SPST-NO 120MA 0-350V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LH1546AAB Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Vishay Semiconductor Opto Division
- Series:
- LH1546
- Packaging:
- Tube
- Product Status:
- Obsolete
- Mounting Type:
- Surface Mount
- Circuit:
- SPST-NO (1 Form A)
- Output Type:
- AC, DC
- Voltage - Input:
- 1.26VDC
- Voltage - Load:
- 0 V ~ 350 V
- Load Current:
- 120 mA
- On-State Resistance (Max):
- 28 Ohms
- Termination Style:
- Gull Wing
- Operating Temperature:
- -40°C ~ 85°C
- Supplier Device Package:
- 6-SMD
- Approval Agency:
- BSI, cUL, FIMKO, UL, VDE
- Grade:
- -
- Qualification:
- -

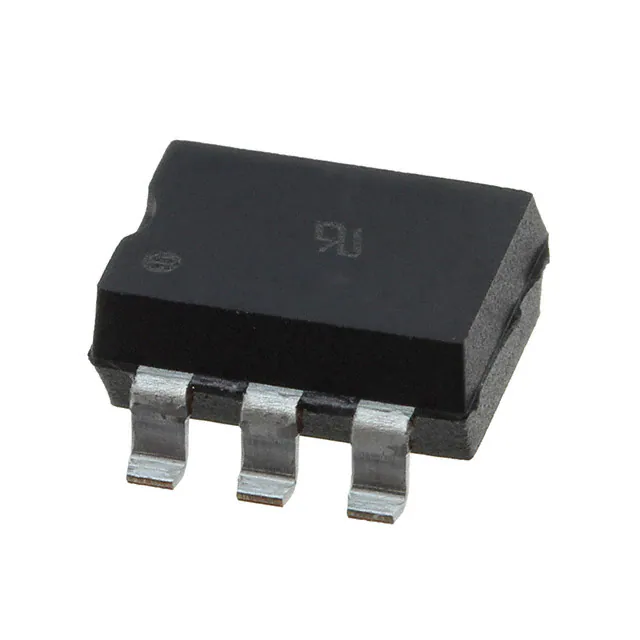

| Image |  |
 |
| Part Number | LH1546AABTR | LH1546AAB |
| Manufacturer | Vishay Semiconductor Opto Division | Vishay Semiconductor Opto Division |
| Series | LH1546 | LH1546 |
| Packaging | Tape & Reel (TR) | Tube |
| Product Status | Active | Obsolete |
| Mounting Type | Surface Mount | Surface Mount |
| Circuit | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Output Type | AC, DC | AC, DC |
| Voltage - Input | 1.26VDC | 1.26VDC |
| Voltage - Load | 0 V ~ 350 V | 0 V ~ 350 V |
| Load Current | 120 mA | 120 mA |
| On-State Resistance (Max) | 28 Ohms | 28 Ohms |
| Termination Style | Gull Wing | Gull Wing |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Supplier Device Package | 6-SMD | 6-SMD |
| Approval Agency | BSI, cUL, FIMKO, UL, VDE | BSI, cUL, FIMKO, UL, VDE |
| Grade | - | - |
| Qualification | - | - |
