ams-OSRAM USA INC. LE B P2W-GY-24-0-F00-T01-XX
- Part No.:
- LE B P2W-GY-24-0-F00-T01-XX
- Manufacturer:
- ams-OSRAM USA INC.
- Category:
- LED COBs, Engines, Modules, Strips
- Package:
- Description:
- LED OSTAR 470NM BLUE 2X2
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LE B P2W-GY-24-0-F00-T01-XX Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ams-OSRAM USA INC.
- Series:
- OSRAM OSTAR® Projection Power
- Packaging:
- Tray
- Product Status:
- Obsolete
- Type:
- LED Module
- Color:
- Blue
- CCT (K):
- -
- Wavelength:
- 459nm (452nm ~ 465nm)
- Configuration:
- Rectangle
- Luminous Flux @ Current/Temperature:
- 22500mW (21000mW ~ 24000mW)
- Current - Test:
- 24A
- Temperature - Test:
- 25°C
- Voltage - Forward (Vf) (Typ):
- 3.35V
- Lumens/Watt @ Current - Test:
- -
- Current - Max:
- 20A
- CRI (Color Rendering Index):
- -
- Viewing Angle:
- 120°
- Features:
- With Connector
- Size / Dimension:
- 27.00mm L x 15.50mm W
- Height:
- 2.10mm
- Light Emitting Surface (LES):
- -
- Lens Type:
- Flat
| Image |  |
 |
 |
|
|

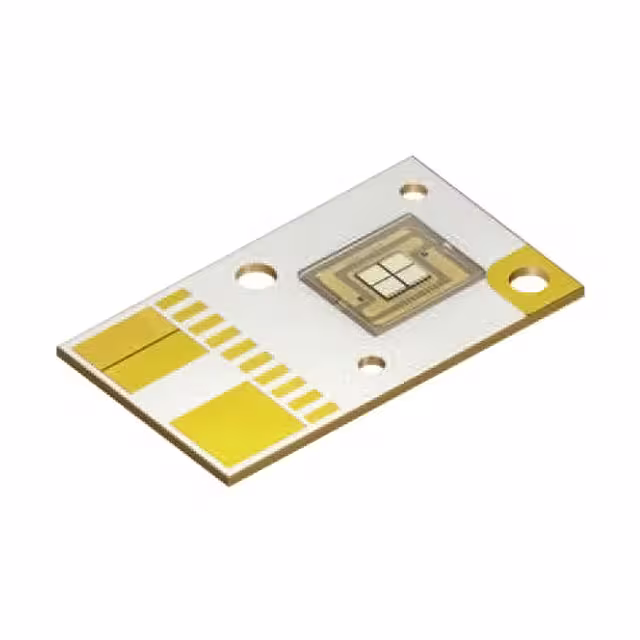

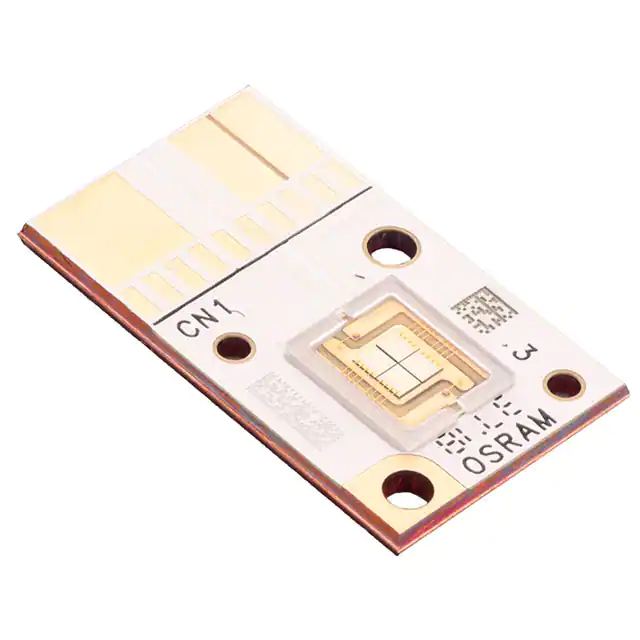

| Part Number | LE B P2W-FZGZ-24-0-F00-T01 | LE B P2W-FZGY-W4-0-F00-T01 | LE B P2W-GXHX-24-0-F00-T01 | LE B P2W 01-FZGZ-24-0-F00-T01 | LE B P2W-FZGY-23-0-F00-T01 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Series | OSRAM OSTAR | OSRAM OSTAR | OSRAM OSTAR® Projection Power | OSRAM OSTAR® Projection Power | OSRAM OSTAR® Projection Power |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | LED Module | LED Module | LED Module | LED Module | LED Module |
| Color | Blue | Blue | Blue | Blue | Blue |
| CCT (K) | - | - | - | - | - |
| Wavelength | 459nm (452nm ~ 465nm) | 459nm (452nm ~ 465nm) | 459nm (444nm ~ 465nm) | - | 456nm (452nm ~ 460nm) |
| Configuration | Rectangle | Rectangle | Rectangle | Rectangle | Rectangle |
| Luminous Flux @ Current/Temperature | 21500mW (15000mW ~ 28000mW) | - | 25500mW (18000mW ~ 33000mW) | 1000lm (Typ) | - |
| Current - Test | 24A | 24A | 24A | - | 24A |
| Temperature - Test | 25°C | 25°C | 25°C | - | 25°C |
| Voltage - Forward (Vf) (Typ) | 3.55V | 3.55V | 3.35V | - | 3.35V |
| Lumens/Watt @ Current - Test | - | - | - | - | - |
| Current - Max | - | - | 20A | - | 20A |
| CRI (Color Rendering Index) | - | - | - | - | - |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Features | - | - | With Connector | - | With Connector |
| Size / Dimension | 27.00mm L x 15.50mm W | 27.00mm L x 15.50mm W | 27.00mm L x 15.50mm W | 27.00mm L x 16.00mm W | 27.00mm L x 15.50mm W |
| Height | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm |
| Light Emitting Surface (LES) | - | - | - | - | - |
| Lens Type | Flat | Flat | Flat | Flat | Flat |
