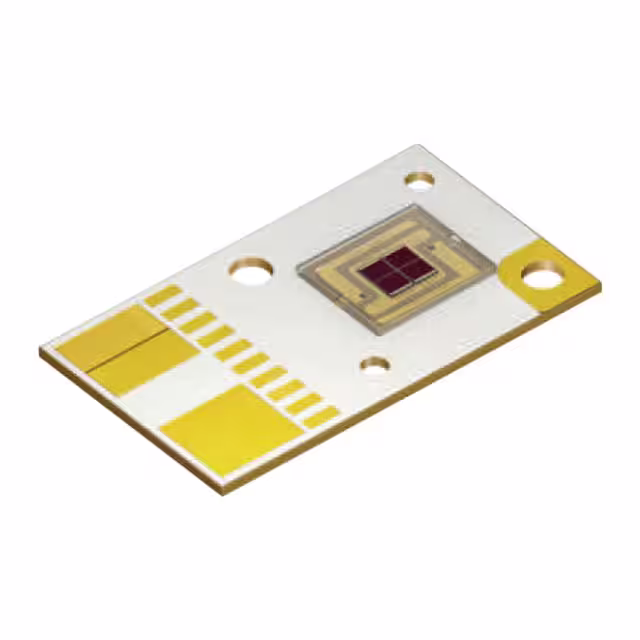

ams-OSRAM USA INC. LE A P2W-SUTR-23-0-F00-T01
- Part No.:
- LE A P2W-SUTR-23-0-F00-T01
- Manufacturer:
- ams-OSRAM USA INC.
- Category:
- LED COBs, Engines, Modules, Strips
- Package:
- Description:
- LED OSTAR 617NM AMBER 2X2
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LE A P2W-SUTR-23-0-F00-T01 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- ams-OSRAM USA INC.
- Series:
- OSRAM OSTAR® Projection Power
- Packaging:
- Tray
- Product Status:
- Obsolete
- Type:
- LED Module
- Color:
- Amber
- CCT (K):
- -
- Wavelength:
- 617nm (612nm ~ 624nm)
- Configuration:
- Rectangle
- Luminous Flux @ Current/Temperature:
- 3090lm (2590lm ~ 3590lm)
- Current - Test:
- 24A
- Temperature - Test:
- 25°C
- Voltage - Forward (Vf) (Typ):
- 3V
- Lumens/Watt @ Current - Test:
- 43 lm/W
- Current - Max:
- 20A
- CRI (Color Rendering Index):
- -
- Viewing Angle:
- 120°
- Features:
- With Connector
- Size / Dimension:
- 27.00mm L x 15.50mm W
- Height:
- 2.10mm
- Light Emitting Surface (LES):
- -
- Lens Type:
- Flat
| Image |  |
 |
|
|
|
| Part Number | LE A P2W-SYTX-23-0-F00-T01 | LE A P2W 01-SYTX-23 | LE A P2W 01-SXTX-1-0-F00-T01 | LE A P2W-SUTQ-2-0-F00-T01-XX | LE A P2W 01-SUTQ-23-0-F00-T01 |
| Manufacturer | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. | ams-OSRAM USA INC. |
| Series | OSRAM OSTAR | OSRAM OSTAR | OSRAM OSTAR | OSRAM OSTAR | OSRAM OSTAR |
| Packaging | Tray | Tray | Tray | Bulk | Tray |
| Product Status | Obsolete | Obsolete | Obsolete | Obsolete | Obsolete |
| Type | LED Module | LED Module | LED Module | LED Module | LED Module |
| Color | Amber | Amber | Amber | Amber | Amber |
| CCT (K) | - | - | - | - | - |
| Wavelength | 617nm (612nm ~ 624nm) | 617nm (612nm ~ 624nm) | 617nm (612nm ~ 624nm) | 617nm (612nm ~ 624nm) | 617nm |
| Configuration | Rectangle | Rectangle | Rectangle | Rectangle | Rectangle |
| Luminous Flux @ Current/Temperature | 2600lm (Typ) | 2700lm (Typ) | 2700lm (Typ) | - | 2945lm (2590lm ~ 3300lm) |
| Current - Test | 24A | 12A | 12A | 24A | 24A |
| Temperature - Test | 25°C | 25°C | 25°C | 25°C | 25°C |
| Voltage - Forward (Vf) (Typ) | 3.35V | 3.35V | 3.35V | 3.35V | 3V |
| Lumens/Watt @ Current - Test | 32 lm/W | 67 lm/W | 67 lm/W | - | 41 lm/W |
| Current - Max | - | - | - | 20A | 20A |
| CRI (Color Rendering Index) | - | - | - | - | - |
| Viewing Angle | 120° | 120° | 120° | 120° | 120° |
| Features | - | - | - | - | - |
| Size / Dimension | 27.00mm L x 15.50mm W | 27.00mm L x 15.50mm W | 27.00mm L x 15.50mm W | 27.00mm L x 15.50mm W | 27.00mm L x 15.50mm W |
| Height | 2.10mm | 2.10mm | 2.10mm | 2.10mm | 2.10mm |
| Light Emitting Surface (LES) | - | - | - | - | 3.20mm L x 2.60mm W |
| Lens Type | Flat | Flat | Flat | Flat | Flat |
