Lumex Opto/Components Inc. LCR-U02004DSF-WH

Name: LCR-U02004DSF-WH
Brand: Lumex Opto/Components Inc.
SKU: LCR-U02004DSF-WH
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: LCR-U02004DSF-WH

Manufacturer:: Lumex Opto/Components Inc.

Category:: LCD, OLED Character and Numeric

Package:

Datasheet:: LCR-U02004DSF-WH.pdf

Description:: LCD MOD 80DIG 20X4 TRANSFLCT WHT

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

LCR-U02004DSF-WH Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: Lumex Opto/Components Inc.

Series:: -

Packaging:: Box

Product Status:: Active

Number of Characters:: 80.0

Display Format:: 20 x 4

Character Format:: 5 x 8 Dots

Display Type:: STN - Super-Twisted Nematic

Display Mode:: Transflective

Character Size:: 4.75mm H x 2.95mm W

Outline L x W x H:: 98.00mm x 60.00mm x 11.60mm

Viewing Area:: 76.30mm L x 25.00mm W

Backlight:: LED - White

Voltage - Supply:: 4.7V ~ 5.3V

Dot Size:: 0.55mm W x 0.55mm H

Interface:: Parallel

Controller Type:: -

Operating Temperature:: -40°C ~ 85°C

Text Color:: Black

Background Color:: Gray

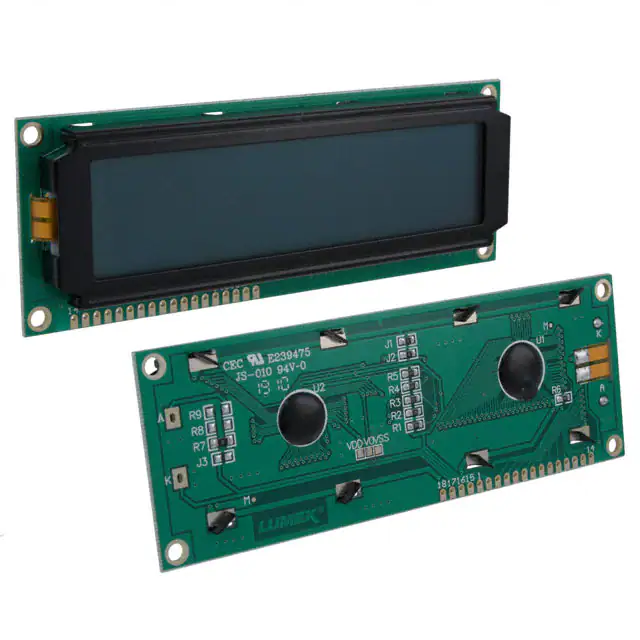

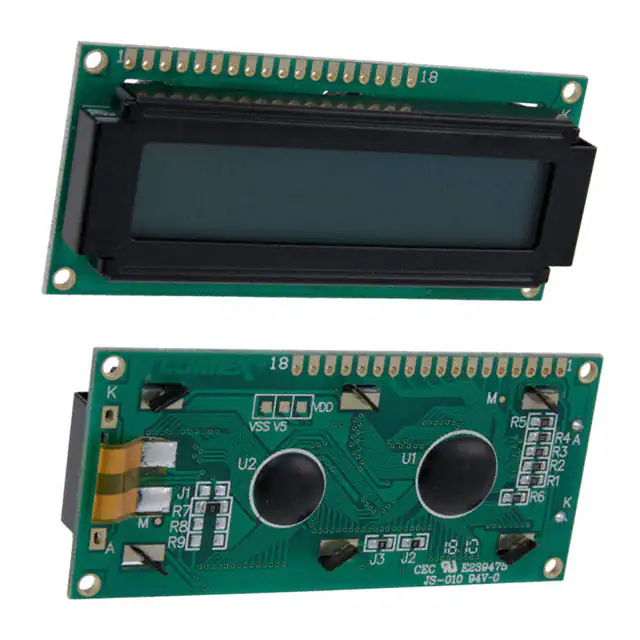

Part Number	LCR-U01602DSF/AWH	LCR-U02004DSF-WH	LCR-U01602DSF/DWH	LCR-U02002DSF-WH
Manufacturer	Lumex Opto/Components Inc.	Lumex Opto/Components Inc.	Lumex Opto/Components Inc.	Lumex Opto/Components Inc.
Series	-	-	-	-
Packaging	Box	Box	Box	Box
Product Status	Active	Active	Active	Active
Number of Characters	32.0	80.0	32.0	40.0
Display Format	16 x 2	20 x 4	16 x 2	20 x 2
Character Format	5 x 8 Dots	5 x 8 Dots	5 x 7 Dots w/Cursor	5 x 8 Dots
Display Type	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic	STN - Super-Twisted Nematic
Display Mode	Transflective	Transflective	Transflective	Transflective
Character Size	4.35mm H x 2.80mm W	4.75mm H x 2.95mm W	9.66mm H x 4.84mm W	5.88mm H x 3.70mm W
Outline L x W x H	80.00mm x 36.00mm x 9.90mm	98.00mm x 60.00mm x 11.60mm	122.00mm x 44.00mm x 10.60mm	116.00mm x 37.00mm x 9.80mm
Viewing Area	64.00mm L x 14.00mm W	76.30mm L x 25.00mm W	99.00mm L x 24.00mm W	83.00mm L x 18.60mm W
Backlight	LED - White	LED - White	LED - White	LED - White
Voltage - Supply	4.7V ~ 5.3V	4.7V ~ 5.3V	4.7V ~ 5.3V	4.7V ~ 5.3V
Dot Size	0.52mm W x 0.52mm H	0.55mm W x 0.55mm H	0.92mm W x 1.10mm H	0.60mm W x 0.65mm H
Interface	Parallel	Parallel	Parallel	Parallel
Controller Type	-	-	-	-
Operating Temperature	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C	-40°C ~ 85°C
Text Color	-	Black	-	-
Background Color	Green	Gray	Green	Green
