NKK Switches LB03KW01-28-JB
- Part No.:
- LB03KW01-28-JB
- Manufacturer:
- NKK Switches
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Description:
- STD SIZE PUSHBUTTON/ILLUMINATED/
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LB03KW01-28-JB Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NKK Switches
- Series:
- LB
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Type:
- Incandescent
- Lamp Color:
- -
- Lens Color:
- White
- Lens Transparency:
- Clear
- Ratings:
- -
- Voltage:
- 28V
- Current:
- -
- Panel Cutout Shape:
- Rectangle
- Panel Cutout Dimensions:
- 0.88" x 0.64" (22.40mm x 16.20mm)
- Lens Size:
- 22.00mm x 15.80mm
- Lens Style:
- Rectangle with Flat Top
- Millicandela Rating:
- -
- Wavelength - Peak:
- -
- Viewing Angle:
- -
- Termination Style:
- Quick Connect - 0.110" (2.8mm)
- Ingress Protection:
- -
- Features:
- -
| Image |  |
 |
 |
|
|

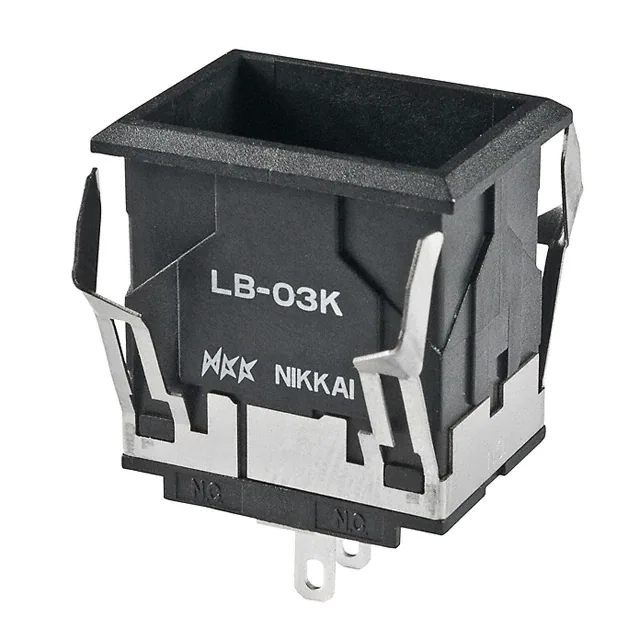

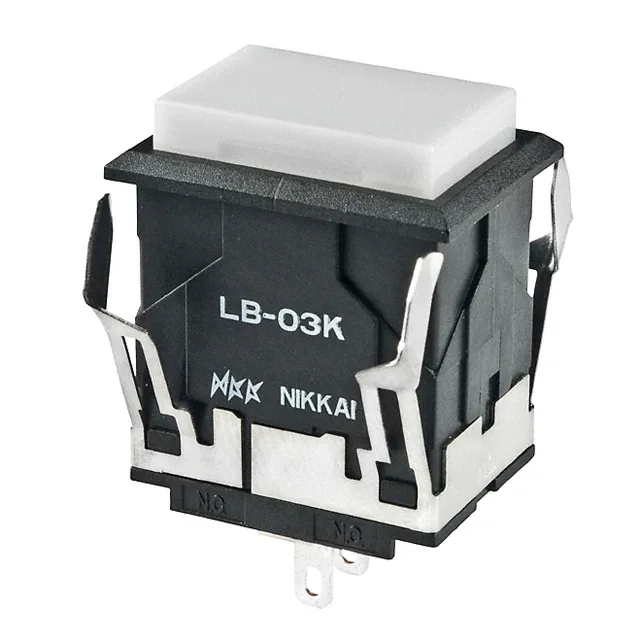

| Part Number | LB03KW01 | LB03KW01-05-BJ | LB03KW01-5F-JF | LB03KW01-5D-JD | LB03KW01-05-JC |
| Manufacturer | NKK Switches | NKK Switches | NKK Switches | NKK Switches | NKK Switches |
| Series | LB | LB | LB | LB | LB |
| Packaging | Box | Box | Bulk | Bulk | Bulk |
| Product Status | Active | Obsolete | Active | Active | Obsolete |
| Type | - | Incandescent | LED | LED | Incandescent |
| Lamp Color | - | White | Green | Amber | Red |
| Lens Color | - | White | Green | Amber | Red |
| Lens Transparency | - | Clear | Diffused | Diffused | Diffused |
| Ratings | - | AC | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) |
| Voltage | - | 5V | 2.1V | 2V | 5V |
| Current | - | 115mA | 30mA | 30mA | 115mA |
| Panel Cutout Shape | Rectangle | Rectangle | Rectangle | Rectangle | Rectangle |
| Panel Cutout Dimensions | 0.88" x 0.64" (22.35mm x 16.26mm) | 0.88" x 0.64" (22.35mm x 16.26mm) | 0.88" x 0.64" (22.35mm x 16.26mm) | 0.88" x 0.64" (22.35mm x 16.26mm) | 0.88" x 0.64" (22.35mm x 16.26mm) |
| Lens Size | 19.40mm x 13.20mm | 19.40mm x 13.20mm | 19.40mm x 13.20mm | 19.40mm x 13.20mm | 19.40mm x 13.20mm |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top |
| Millicandela Rating | - | - | - | - | - |
| Wavelength - Peak | - | - | - | - | - |
| Viewing Angle | - | - | - | - | - |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | - | - | - | - | - |
| Features | - | - | - | - | - |
