NKK Switches LB01KW01-12-JE
- Part No.:
- LB01KW01-12-JE
- Manufacturer:
- NKK Switches
- Category:
- Panel Indicators, Pilot Lights
- Package:
- Description:
- INDICATOR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
LB01KW01-12-JE Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- NKK Switches
- Series:
- LB
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Type:
- Incandescent
- Lamp Color:
- Yellow
- Lens Color:
- Yellow
- Lens Transparency:
- Clear
- Ratings:
- AC
- Voltage:
- 12V
- Current:
- 60mA
- Panel Cutout Shape:
- Square
- Panel Cutout Dimensions:
- 0.64" x 0.64" (16.20mm x 16.20mm)
- Lens Size:
- 15.80mm
- Lens Style:
- Square with Flat Top
- Millicandela Rating:
- -
- Wavelength - Peak:
- -
- Viewing Angle:
- -
- Termination Style:
- Quick Connect - 0.110" (2.8mm)
- Ingress Protection:
- -
- Features:
- -
| Image |  |
 |
 |
|
|

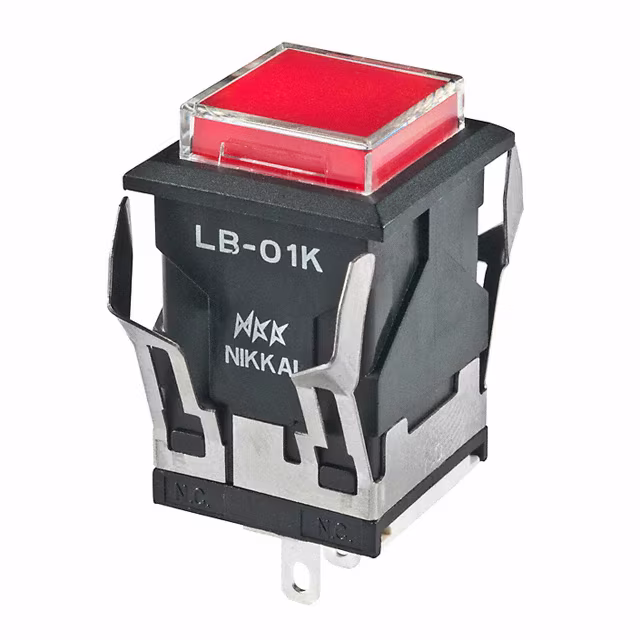

| Part Number | LB01KW01-5F24-JF | LB01KW01-5C24-JC | LB01KW01-5F12-JF | LB01KW01-5D-JD | LB01KW01-05-GJ |
| Manufacturer | NKK Switches | NKK Switches | NKK Switches | NKK Switches | NKK Switches |
| Series | LB | LB | LB | LB | LB |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Obsolete |
| Type | LED | LED | LED | LED | Incandescent |
| Lamp Color | Green | Red | Green | Amber | Blue |
| Lens Color | Green | Red | Green | Amber | Blue |
| Lens Transparency | Clear | Clear | Clear | Diffused | Diffused |
| Ratings | AC | AC | Vf (Typ), If (Max) | Vf (Typ), If (Max) | Vf (Typ), If (Max) |
| Voltage | 24V | 24V | 12V | 2V | 5V |
| Current | 13mA | 13mA | 26mA | 30mA | 115mA |
| Panel Cutout Shape | Round | Round | Square | Square | Square |
| Panel Cutout Dimensions | 0.64" (16.26mm) | 0.64" (16.26mm) | 0.64" x 0.64" (16.20mm x 16.20mm) | 0.64" x 0.64" (16.20mm x 16.20mm) | 0.64" x 0.64" (16.20mm x 16.20mm) |
| Lens Size | 13.20mm | 13.20mm | 15.80mm | 13.20mm | 13.20mm |
| Lens Style | Square with Flat Top | Square with Flat Top | Square with Flat Top | Square with Flat Top | Square with Flat Top |
| Millicandela Rating | - | - | - | - | - |
| Wavelength - Peak | - | - | - | - | - |
| Viewing Angle | - | - | - | - | - |
| Termination Style | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) | Quick Connect - 0.110" (2.8mm) |
| Ingress Protection | - | - | - | - | - |
| Features | - | - | - | - | - |
