TE Connectivity Potter & Brumfield Relays KUHP-11A51-120

Name: KUHP-11A51-120
Brand: TE Connectivity Potter & Brumfield Relays
SKU: KUHP-11A51-120
Price: 2.40 USD
Availability: InStock
Rating: 5 (2 reviews)

Compare

Part No.:: KUHP-11A51-120

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Category:: Power Relays, Over 2 Amps

Package:

Description:: RELAY GEN PURPOSE DPDT 20A 120V

Quantity:: Add To Cart Add To RFQ list

Unit Price:$0

Ext Price:$0

Payment:

Shipping:

KUHP-11A51-120 Information

Specifications
Comparison
Tags

Product attributes: Attribute value

Manufacturer:: TE Connectivity Potter & Brumfield Relays

Series:: KUHP

Packaging:: Bulk

Product Status:: Active

Mounting Type:: Chassis Mount

Coil Voltage:: 120VAC

Contact Form:: DPDT (2 Form C)

Contact Rating (Current):: 20 A

Switching Voltage:: 240VAC - Max

Load - Max Switching:: 4800VA

Coil Current:: 24 mA

Coil Type:: Non Latching

Features:: -

Termination Style:: Quick Connect - 0.250" (6.3mm)

Seal Rating:: -

Coil Insulation:: Class B

Must Operate Voltage:: 102 VAC

Must Release Voltage:: -

Operate Time:: 20 ms

Release Time:: 20 ms

Operating Temperature:: -45°C ~ 45°C

Contact Material:: Silver Cadmium Oxide (AgCdO)

Relay Type:: General Purpose

Grade:: -

Qualification:: -

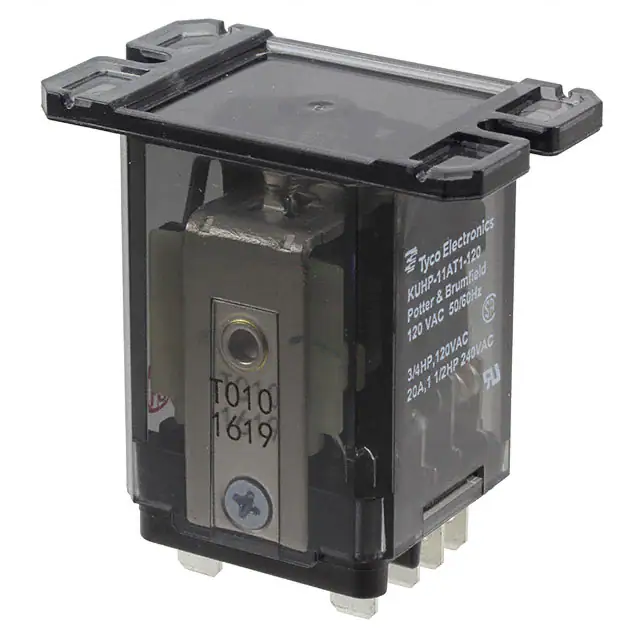

Part Number	KUHP-11D51-12	KUHP-11A51-120	KUHP-11D51-24	KUHP-11DT1-12	KUHP-11AT1-120
Manufacturer	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays	TE Connectivity Potter & Brumfield Relays
Series	KUHP	KUHP	KUHP	KUHP	KUHP
Packaging	Bulk	Bulk	Bulk	Bulk	Bulk
Product Status	Active	Active	Active	Active	Active
Mounting Type	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount	Chassis Mount
Coil Voltage	12VDC	120VAC	24VDC	12VDC	120VAC
Contact Form	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)	DPDT (2 Form C)
Contact Rating (Current)	20 A	20 A	20 A	20 A	20 A
Switching Voltage	240VAC - Max	240VAC - Max	240VAC - Max	240VAC - Max	240VAC - Max
Load - Max Switching	4800VA	4800VA	4800VA	4800VA	4800VA
Coil Current	100 mA	24 mA	51 mA	100 mA	24 mA
Coil Type	Non Latching	Non Latching	Non Latching	Non Latching	Non Latching
Features	-	-	-	-	-
Termination Style	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)	Quick Connect - 0.250" (6.3mm)
Seal Rating	-	-	-	-	-
Coil Insulation	Class B	Class B	Class B	Class B	Class B
Must Operate Voltage	9 VDC	102 VAC	18 VDC	9 VDC	102 VAC
Must Release Voltage	-	-	-	-	-
Operate Time	20 ms	20 ms	20 ms	20 ms	20 ms
Release Time	20 ms	20 ms	20 ms	20 ms	20 ms
Operating Temperature	-45°C ~ 70°C	-45°C ~ 45°C	-45°C ~ 70°C	-45°C ~ 70°C	-45°C ~ 45°C
Contact Material	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)	Silver Cadmium Oxide (AgCdO)
Relay Type	General Purpose	General Purpose	General Purpose	General Purpose	General Purpose
Grade	-	-	-	-	-
Qualification	-	-	-	-	-
