TE Connectivity Aerospace, Defense and Marine JMGACDD-26MW
- Part No.:
- JMGACDD-26MW
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Category:
- Signal Relays, Up to 2 Amps
- Package:
- Datasheet:
-
JMGACDD-26MW.pdf
- Description:
- RELAY GEN PURPOSE DPDT 1A 26.5V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
JMGACDD-26MW Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Series:
- MGA, CII
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 26.5VDC
- Contact Form:
- DPDT (2 Form C)
- Contact Rating (Current):
- 1 A
- Switching Voltage:
- 28VDC - Nom
- Load - Max Switching:
- -
- Coil Current:
- 17 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Hermetically
- Coil Insulation:
- -
- Must Operate Voltage:
- 14.8 VDC
- Must Release Voltage:
- 1.8 VDC
- Operate Time:
- 2 ms
- Release Time:
- 4 ms
- Operating Temperature:
- -65°C ~ 125°C
- Contact Material:
- Silver Palladium (AgPd), Gold (Au)
- Relay Type:
- General Purpose
- Grade:
- Military
- Qualification:
- MIL-R-39016/19
| Image |  |
 |
 |
 |
|

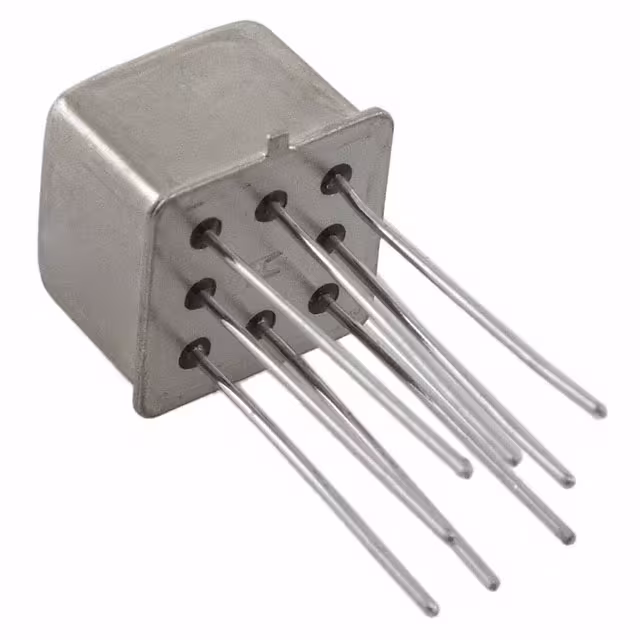

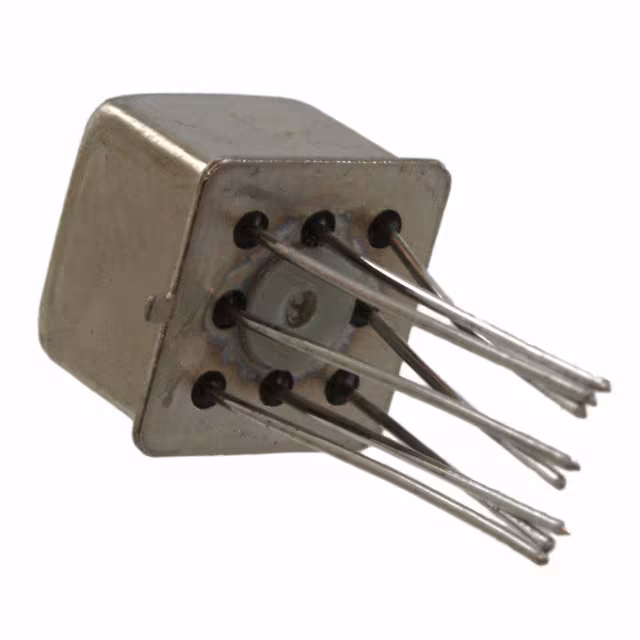

| Part Number | JMGACDD-26MW | JMGACDD-26L | JMGACDD-12P | JMGACDD-26LW | JMGACDD-5LW |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Series | MGA, CII | MGA, CII | MGADD, CII | MGA, CII | MGADD, CII |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 26.5VDC | 26.5VDC | 12VDC | 26.5VDC | 5VDC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Rating (Current) | 1 A | 1 A | 1 A | 1 A | 1 A |
| Switching Voltage | 28VDC - Nom | 28VDC - Nom | 115VAC, 28VDC - Max | 28VDC - Nom | 115VAC, 28VDC - Max |
| Load - Max Switching | - | - | 115VA, 28W | - | 115VA, 28W |
| Coil Current | 17 mA | 17 mA | 32.8 mA | 17 mA | 128.2 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | Diode | - | Diode |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically | Sealed - Hermetically |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 14.8 VDC | 15.2 VDC | 8 VDC | 15.2 VDC | 3.2 VDC |
| Must Release Voltage | 1.8 VDC | 1.4 VDC | 1.1 VDC | 1.4 VDC | 0.6 VDC |
| Operate Time | 2 ms | 2 ms | 2 ms | 2 ms | 2 ms |
| Release Time | 4 ms | 4 ms | 4 ms | 4 ms | 4 ms |
| Operating Temperature | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C | -65°C ~ 125°C |
| Contact Material | Silver Palladium (AgPd), Gold (Au) | Silver Palladium (AgPd), Gold (Au) | Silver Palladium (AgPd), Gold (Au) | Silver Palladium (AgPd), Gold (Au) | Silver Palladium (AgPd), Gold (Au) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | Military | Military | Military | Military | Military |
| Qualification | MIL-R-39016/19 | MIL-R-39016/19 | MIL-R-39016/19 | MIL-R-39016/19 | MIL-R-39016/19 |
