Microchip Technology JANTX1N4467
- Part No.:
- JANTX1N4467
- Manufacturer:
- Microchip Technology
- Category:
- Single Zener Diodes
- Package:
- DO-204AL, DO-41, Axial
- Description:
- DIODE ZENER 12V 1.5W DO204AL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
JANTX1N4467 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Microchip Technology
- Series:
- -
- Package/Case:
- DO-204AL, DO-41, Axial
- Packaging:
- Bulk
- Product Status:
- Active
- Voltage - Zener (Nom) (Vz):
- 12 V
- Tolerance:
- ±5%
- Power - Max:
- 1.5 W
- Impedance (Max) (Zzt):
- 7 Ohms
- Current - Reverse Leakage @ Vr:
- 200 nA @ 9.6 V
- Voltage - Forward (Vf) (Max) @ If:
- 1 V @ 200 mA
- Operating Temperature:
- -65°C ~ 175°C
- Grade:
- Military
- Qualification:
- MIL-PRF-19500/406
- Mounting Type:
- Through Hole
- Supplier Device Package:
- DO-204AL (DO-41)
| Image |  |
 |
 |
 |
|

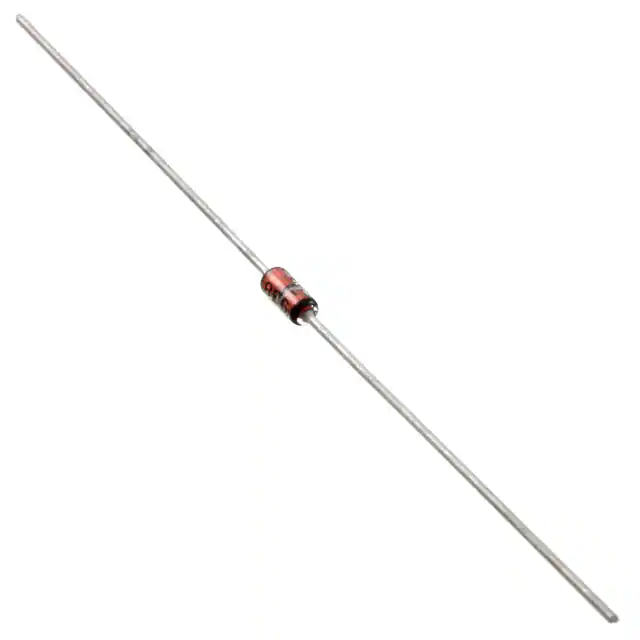

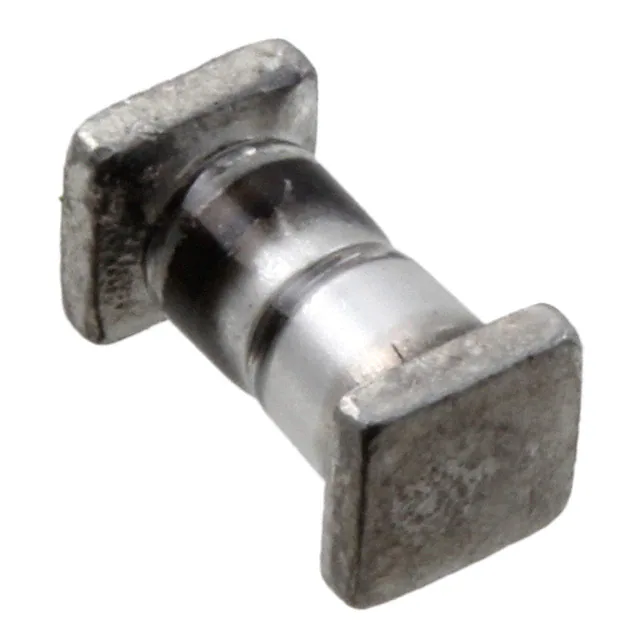

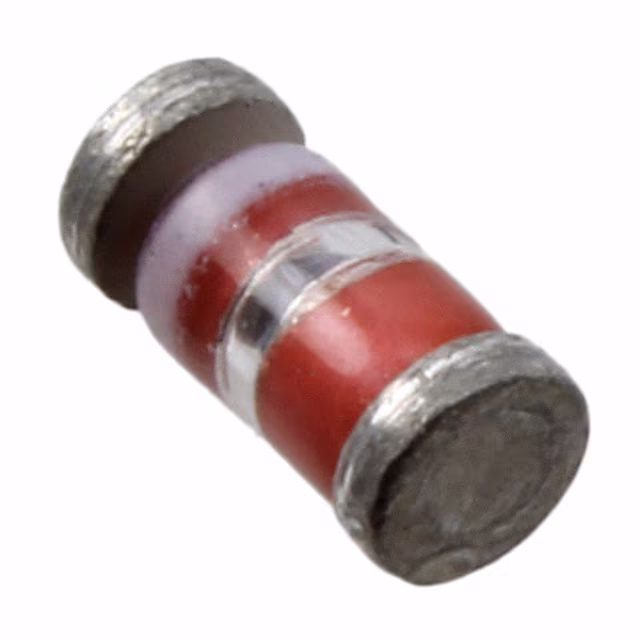

| Part Number | JANTX1N4467 | JANTX1N4467US | JANTX1N4467/TR | JANTX1N4467US/TR | JANTX1N4467D |
| Manufacturer | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology | Microchip Technology |
| Series | - | - | - | - | - |
| Package/Case | DO-204AL, DO-41, Axial | DO-213AB, MELF (Glass) | DO-204AL, DO-41, Axial | DO-213AB, MELF (Glass) | DO-204AL, DO-41, Axial |
| Packaging | Bulk | Bulk | Tape & Reel (TR) | Tape & Reel (TR) | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 12 V | 12 V | 12 V | 12 V | 12 V |
| Tolerance | ±5% | ±5% | ±5% | ±5% | ±1% |
| Power - Max | 1.5 W | 1.5 W | 1.5 W | 1.5 W | 1.5 W |
| Impedance (Max) (Zzt) | 7 Ohms | 7 Ohms | 7 Ohms | 7 Ohms | 7 Ohms |
| Current - Reverse Leakage @ Vr | 200 nA @ 9.6 V | 200 nA @ 9.6 V | 200 nA @ 9.6 V | 200 nA @ 9.6 V | 200 nA @ 9.6 V |
| Voltage - Forward (Vf) (Max) @ If | 1 V @ 200 mA | 1.5 V @ 1 A | 1 V @ 200 mA | 1.5 V @ 1 A | 1 V @ 200 mA |
| Operating Temperature | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C | -65°C ~ 175°C |
| Grade | Military | Military | Military | Military | Military |
| Qualification | MIL-PRF-19500/406 | MIL-PRF-19500/406 | MIL-PRF-19500/406 | MIL-PRF-19500/406 | MIL-PRF-19500/406 |
| Mounting Type | Through Hole | Surface Mount | Through Hole | Surface Mount | Through Hole |
| Supplier Device Package | DO-204AL (DO-41) | MELF, D5A | DO-204AL (DO-41) | MELF, D5A | DO-204AL (DO-41) |
