Diodes Incorporated BZT52C15-7-F
- Part No.:
- BZT52C15-7-F
- Manufacturer:
- Diodes Incorporated
- Category:
- Single Zener Diodes
- Package:
- SOD-123
- Description:
- DIODE ZENER 15V 500MW SOD123
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
BZT52C15-7-F Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Diodes Incorporated
- Series:
- -
- Package/Case:
- SOD-123
- Packaging:
- Tape & Reel (TR)
- Product Status:
- Active
- Voltage - Zener (Nom) (Vz):
- 15 V
- Tolerance:
- ±6%
- Power - Max:
- 500 mW
- Impedance (Max) (Zzt):
- 30 Ohms
- Current - Reverse Leakage @ Vr:
- 100 nA @ 10.5 V
- Voltage - Forward (Vf) (Max) @ If:
- 900 mV @ 10 mA
- Operating Temperature:
- -65°C ~ 150°C
- Grade:
- -
- Qualification:
- -
- Mounting Type:
- Surface Mount
- Supplier Device Package:
- SOD-123
| Image |  |
 |
|
 |
 |

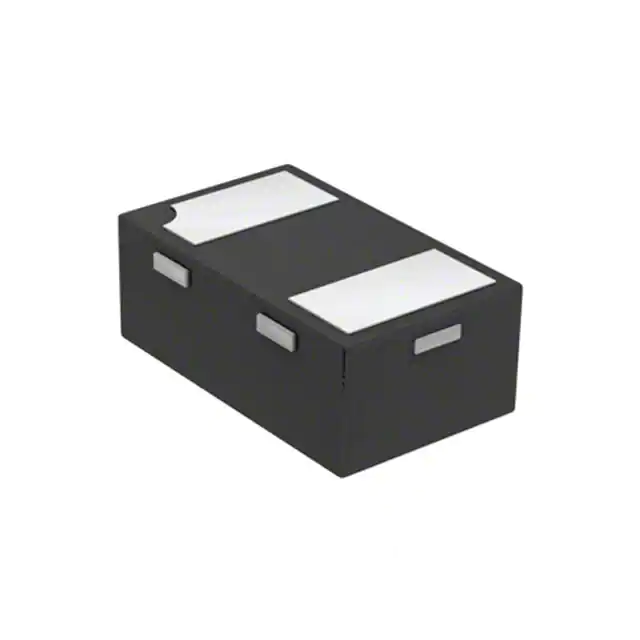

| Part Number | BZT52C15-7-F | BZT52C15S-7-F | BZT52C15-13-F | BZT52C15T-7 | BZT52C15LP-7 |
| Manufacturer | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated | Diodes Incorporated |
| Series | - | - | - | - | - |
| Package/Case | SOD-123 | SC-76, SOD-323 | SOD-123 | SC-79, SOD-523 | 0402 (1006 Metric) |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Voltage - Zener (Nom) (Vz) | 15 V | 15 V | 15 V | 15 V | 15 V |
| Tolerance | ±6% | ±6% | ±6% | ±6% | ±6% |
| Power - Max | 500 mW | 200 mW | 500 mW | 300 mW | 250 mW |
| Impedance (Max) (Zzt) | 30 Ohms | 30 Ohms | 30 Ohms | 30 Ohms | 30 Ohms |
| Current - Reverse Leakage @ Vr | 100 nA @ 10.5 V | 100 nA @ 10.5 V | 100 nA @ 10.5 V | 100 nA @ 10.5 V | 100 nA @ 10.5 V |
| Voltage - Forward (Vf) (Max) @ If | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA | 900 mV @ 10 mA |
| Operating Temperature | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C | -65°C ~ 150°C |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Supplier Device Package | SOD-123 | SOD-323 | SOD-123 | SOD-523 | X1-DFN1006-2 |
