CIT Relay and Switch J1512CP120VAC1.2
- Part No.:
- J1512CP120VAC1.2
- Manufacturer:
- CIT Relay and Switch
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
J1512CP120VAC1.2.pdf
- Description:
- RELAY GEN PURPOSE DPDT 20A 120V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
J1512CP120VAC1.2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CIT Relay and Switch
- Series:
- J151
- Packaging:
- Tray
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 120VAC
- Contact Form:
- DPDT (2 Form C)
- Contact Rating (Current):
- 12 A
- Switching Voltage:
- 300VAC - Max
- Load - Max Switching:
- 6000VA
- Coil Current:
- 26.4 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- 96 VAC
- Must Release Voltage:
- 36 VAC
- Operate Time:
- 25 ms
- Release Time:
- 25 ms
- Operating Temperature:
- -40°C ~ 85°C
- Contact Material:
- Silver Cadmium Oxide (AgCdO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |

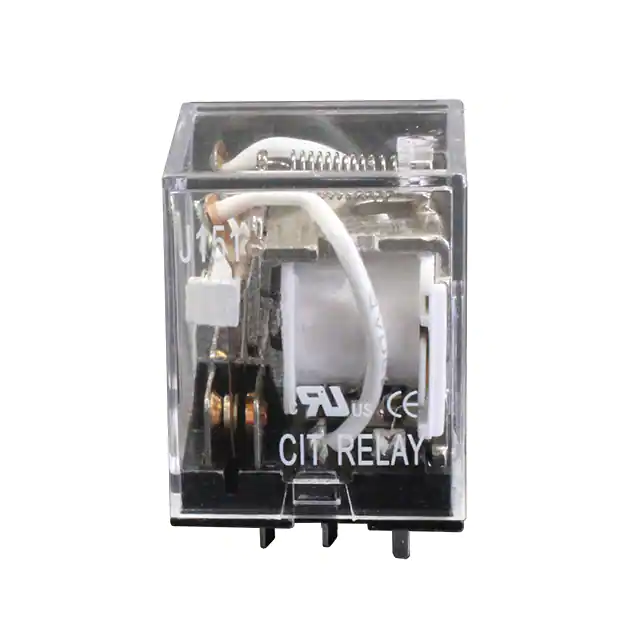

| Part Number | J1512CP120VAC1.2 | J1512CP120VAC1.2D |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch |
| Series | J151 | J151 |
| Packaging | Tray | Tray |
| Product Status | Active | Active |
| Mounting Type | Through Hole | Through Hole |
| Coil Voltage | 120VAC | 120VAC |
| Contact Form | DPDT (2 Form C) | DPDT (2 Form C) |
| Contact Rating (Current) | 12 A | 12 A |
| Switching Voltage | 300VAC - Max | 300VAC - Max |
| Load - Max Switching | 6000VA | 6000VA |
| Coil Current | 26.4 mA | 26.4 mA |
| Coil Type | Non Latching | Non Latching |
| Features | - | Lighted Indicator |
| Termination Style | PC Pin | PC Pin |
| Seal Rating | - | - |
| Coil Insulation | - | - |
| Must Operate Voltage | 96 VAC | 96 VAC |
| Must Release Voltage | 36 VAC | 36 VAC |
| Operate Time | 25 ms | 25 ms |
| Release Time | 25 ms | 25 ms |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C |
| Contact Material | Silver Cadmium Oxide (AgCdO) | Silver Cadmium Oxide (AgCdO) |
| Relay Type | General Purpose | General Purpose |
| Grade | - | - |
| Qualification | - | - |
