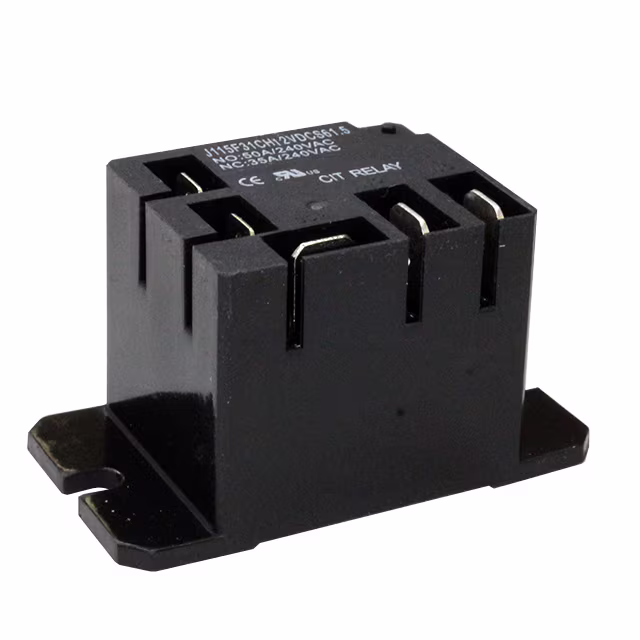

CIT Relay and Switch J115F31CH12VDCS61.5U
- Part No.:
- J115F31CH12VDCS61.5U
- Manufacturer:
- CIT Relay and Switch
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
J115F31CH12VDCS61.5U.pdf
- Description:
- RELAY GEN PURPOSE SPDT 50A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
J115F31CH12VDCS61.5U Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CIT Relay and Switch
- Series:
- J115F
- Packaging:
- Tray
- Product Status:
- Active
- Mounting Type:
- Chassis Mount
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 50 A
- Switching Voltage:
- 277VAC, 110VDC - Max
- Load - Max Switching:
- 13850VA, 5500W
- Coil Current:
- 125 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Quick Connect - 0.187"/0.250"
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- Class F
- Must Operate Voltage:
- 9 VDC
- Must Release Voltage:
- 1.2 VDC
- Operate Time:
- 15 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -55°C ~ 125°C
- Contact Material:
- Silver Tin Oxide Indium Oxide (AgSnOInO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
| Part Number | J115F31CH12VDCS61.5U | J115F31CH12VDCS61.5 |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch |
| Series | J115F | J115F |
| Packaging | Tray | Tray |
| Product Status | Active | Active |
| Mounting Type | Chassis Mount | Chassis Mount |
| Coil Voltage | 12VDC | 12VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 50 A | 50 A |
| Switching Voltage | 277VAC, 110VDC - Max | 277VAC, 110VDC - Max |
| Load - Max Switching | 13850VA, 5500W | 13850VA, 5500W |
| Coil Current | 125 mA | 125 mA |
| Coil Type | Non Latching | Non Latching |
| Features | - | - |
| Termination Style | Quick Connect - 0.187"/0.250" | Quick Connect - 0.187"/0.250" |
| Seal Rating | Sealed - Fully | Sealed - Fully |
| Coil Insulation | Class F | Class F |
| Must Operate Voltage | 9 VDC | 9 VDC |
| Must Release Voltage | 1.2 VDC | 1.2 VDC |
| Operate Time | 15 ms | 15 ms |
| Release Time | 10 ms | 10 ms |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C |
| Contact Material | Silver Tin Oxide Indium Oxide (AgSnOInO) | Silver Tin Oxide (AgSnO) |
| Relay Type | General Purpose | General Purpose |
| Grade | - | - |
| Qualification | - | - |
