CIT Relay and Switch J115F11A24VDCS6.9
- Part No.:
- J115F11A24VDCS6.9
- Manufacturer:
- CIT Relay and Switch
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
J115F11A24VDCS6.9.pdf
- Description:
- RELAY GEN PURPOSE SPST 40A 24V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
J115F11A24VDCS6.9 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- CIT Relay and Switch
- Series:
- J115F1
- Packaging:
- Tube
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 24VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 40 A
- Switching Voltage:
- 277VAC, 110VDC - Max
- Load - Max Switching:
- 9600VA, 1120W
- Coil Current:
- 37.5 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Fully
- Coil Insulation:
- Class F
- Must Operate Voltage:
- 18 VDC
- Must Release Voltage:
- 2.4 VDC
- Operate Time:
- 15 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -55°C ~ 125°C
- Contact Material:
- Silver Tin Oxide (AgSnO)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -

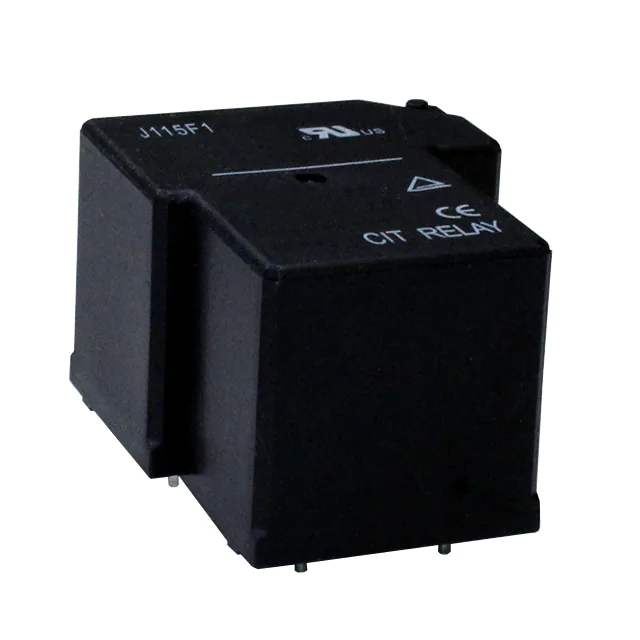

| Image |  |
 |
 |
| Part Number | J115F11A24VDCS6.9 | J115F11A24VDCS6.6 | J115F11A24VDCS6.9U |
| Manufacturer | CIT Relay and Switch | CIT Relay and Switch | CIT Relay and Switch |
| Series | J115F1 | J115F1 | J115F1 |
| Packaging | Tube | Tube | Tube |
| Product Status | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 24VDC | 24VDC | 24VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 40 A | 40 A | 40 A |
| Switching Voltage | 277VAC, 110VDC - Max | 277VAC, 110VDC - Max | 277VAC, 110VDC - Max |
| Load - Max Switching | 9600VA, 1120W | 9600VA, 1120W | 9600VA, 1120W |
| Coil Current | 37.5 mA | 25 mA | 37.5 mA |
| Coil Type | Non Latching | Non Latching | Non Latching |
| Features | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Fully | Sealed - Fully | Sealed - Fully |
| Coil Insulation | Class F | Class F | Class F |
| Must Operate Voltage | 18 VDC | 18 VDC | 18 VDC |
| Must Release Voltage | 2.4 VDC | 2.4 VDC | 2.4 VDC |
| Operate Time | 15 ms | 15 ms | 15 ms |
| Release Time | 10 ms | 10 ms | 10 ms |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Contact Material | Silver Tin Oxide (AgSnO) | Silver Tin Oxide (AgSnO) | Silver Tin Oxide Indium Oxide (AgSnOInO) |
| Relay Type | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - |
| Qualification | - | - | - |
