Renesas Electronics Corporation ISL12022MIBZ
- Part No.:
- ISL12022MIBZ
- Manufacturer:
- Renesas Electronics Corporation
- Category:
- Real Time Clocks
- Package:
- 20-SOIC (0.295", 7.50mm Width)
- Description:
- IC RTC CLK/CALENDAR I2C 20SOIC
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
ISL12022MIBZ Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Renesas Electronics Corporation
- Series:
- -
- Package/Case:
- 20-SOIC (0.295", 7.50mm Width)
- Packaging:
- Tube
- Product Status:
- Active
- Programmable:
- Not Verified
- Type:
- Clock/Calendar
- Features:
- Alarm, Daylight Savings, Leap Year, SRAM
- Memory Size:
- 128B
- Time Format:
- HH:MM:SS (12/24 hr)
- Date Format:
- YY-MM-DD-dd
- Interface:
- I2C, 2-Wire Serial
- Voltage - Supply:
- 2.7V ~ 5.5V
- Voltage - Supply, Battery:
- 1.8V ~ 5.5V
- Current - Timekeeping (Max):
- 14µA ~ 15µA @ 3V ~ 5V
- Operating Temperature:
- -40°C ~ 85°C
- Mounting Type:
- Surface Mount
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 20-SOIC

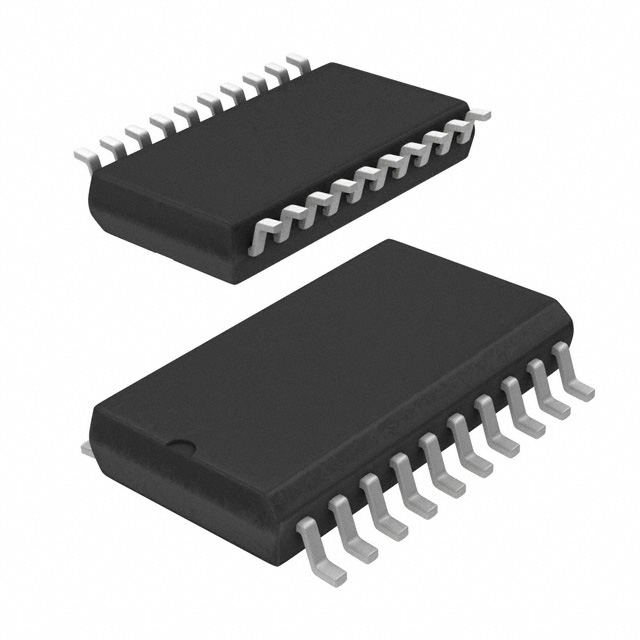

| Image |  |
|
|
|
 |
| Part Number | ISL12022MIBZ | ISL12022MIBZ-T | ISL12022MIBZ-TR5421 | ISL12022MIBZ-T7A | ISL12022MIBZR5421 |
| Manufacturer | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation | Renesas Electronics Corporation |
| Series | - | - | - | - | - |
| Package/Case | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) | 20-SOIC (0.295", 7.50mm Width) |
| Packaging | Tube | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tube |
| Product Status | Active | Active | Active | Obsolete | Active |
| Programmable | Not Verified | Not Verified | Not Verified | Not Verified | Not Verified |
| Type | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar | Clock/Calendar |
| Features | Alarm, Daylight Savings, Leap Year, SRAM | Alarm, Daylight Savings, Leap Year, SRAM | Alarm, Daylight Savings, Leap Year, SRAM | Alarm, Daylight Savings, Leap Year, SRAM | Alarm, Daylight Savings, Leap Year, SRAM |
| Memory Size | 128B | 128B | 128B | 128B | 128B |
| Time Format | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) | HH:MM:SS (12/24 hr) |
| Date Format | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd | YY-MM-DD-dd |
| Interface | I2C, 2-Wire Serial | I2C, 2-Wire Serial | I2C, 2-Wire Serial | I2C, 2-Wire Serial | I2C, 2-Wire Serial |
| Voltage - Supply | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V | 2.7V ~ 5.5V |
| Voltage - Supply, Battery | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V | 1.8V ~ 5.5V |
| Current - Timekeeping (Max) | 14µA ~ 15µA @ 3V ~ 5V | 14µA ~ 15µA @ 3V ~ 5V | 14µA ~ 15µA @ 3V ~ 5V | 14µA ~ 15µA @ 3V ~ 5V | 14µA ~ 15µA @ 3V ~ 5V |
| Operating Temperature | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C | -40°C ~ 85°C |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | 20-SOIC | 20-SOIC | 20-SOIC | 20-SOIC | 20-SOIC |
