Broadcom Limited HSMF-C180-000A2
- Part No.:
- HSMF-C180-000A2
- Manufacturer:
- Broadcom Limited
- Category:
- LED Indication - Discrete
- Package:
- 0606 (1616 Metric)
- Description:
- LED YLW/YLW-GRN 0606 SMD
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HSMF-C180-000A2 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- HSMF-C180
- Package/Case:
- 0606 (1616 Metric)
- Packaging:
- Bulk
- Product Status:
- Obsolete
- Color:
- Yellow, Yellow-Green
- Configuration:
- Independent
- Lens Color:
- -
- Lens Transparency:
- -
- Millicandela Rating:
- 10.4mcd Yellow, 16.5mcd Yellow-Green
- Lens Style:
- Rectangle with Flat Top
- Lens Size:
- 1.50mm x 1.10mm
- Voltage - Forward (Vf) (Typ):
- 2.1V Yellow, 2.1V Yellow-Green
- Current - Test:
- 20mA Yellow, 20mA Yellow-Green
- Viewing Angle:
- 160°
- Mounting Type:
- Surface Mount
- Wavelength - Dominant:
- 588nm Yellow, 572nm Yellow-Green
- Wavelength - Peak:
- 586nm Yellow, 566nm Yellow-Green
- Features:
- -
- Grade:
- -
- Qualification:
- -
- Supplier Device Package:
- 0606
- Size / Dimension:
- 1.60mm L x 1.50mm W
| Image |  |
 |
|
|
 |

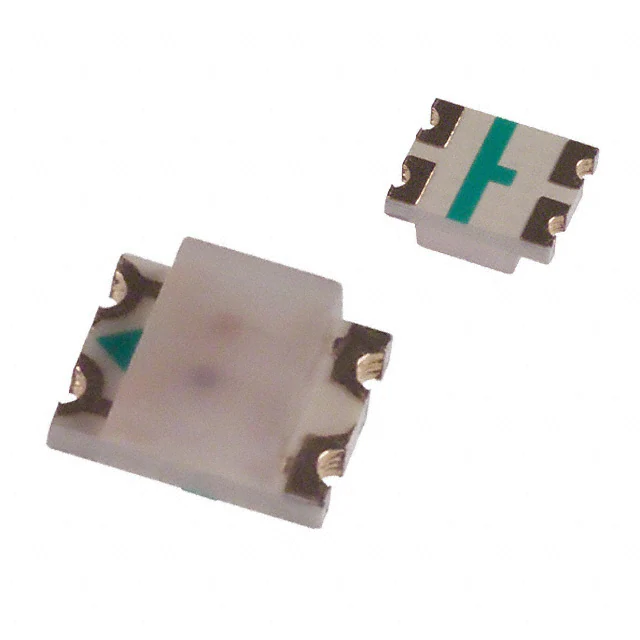

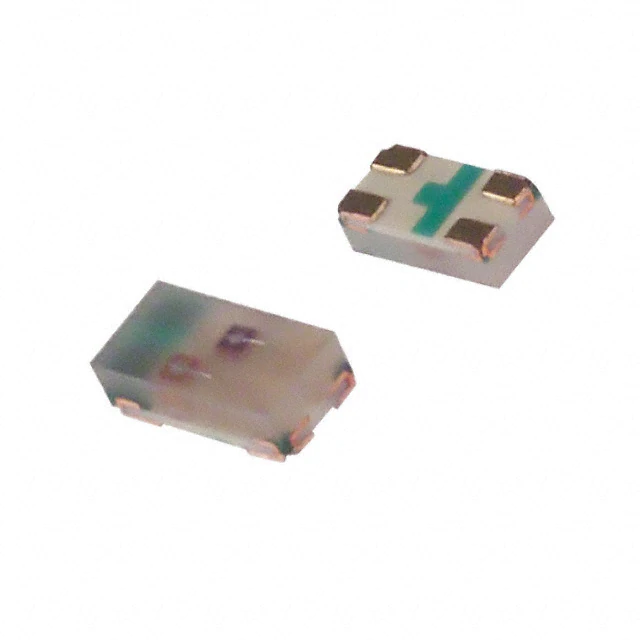

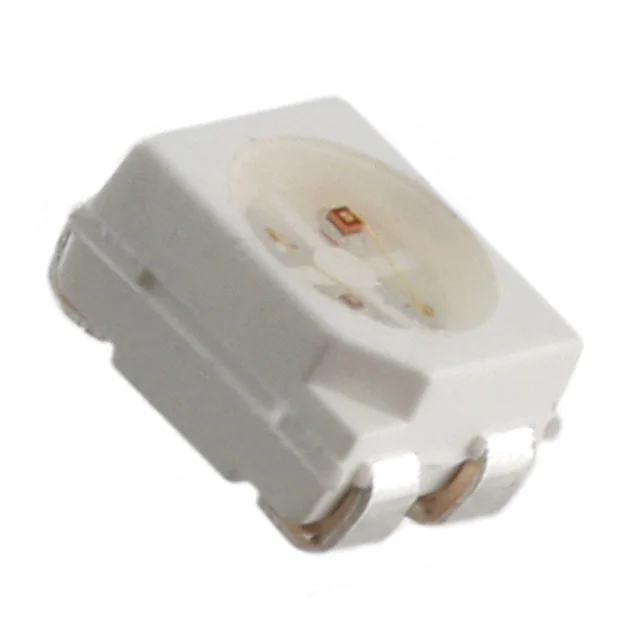

| Part Number | HSMF-C155 | HSMF-C166 | HSMF-C165 | HSMF-C167 | HSMF-A211-A00J1 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | - | - | - | - | - |
| Package/Case | 1210 (3225 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 0603 (1608 Metric) | 4-PLCC |
| Packaging | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) | Tape & Reel (TR) |
| Product Status | Active | Active | Active | Active | Active |
| Color | Green, Red | Green, Yellow | Green, Red | Green, Orange | Green, Red |
| Configuration | Independent | Independent | Independent | Independent | Independent |
| Lens Color | White | White | White | White | Colorless |
| Lens Transparency | Diffused | Diffused | Diffused | Diffused | Clear |
| Millicandela Rating | 15mcd Green, 10mcd Red | 15mcd Green, 8mcd Yellow | 15mcd Green, 10mcd Red | 15mcd Green, 8mcd Orange | 20mcd Green, 25mcd Red |
| Lens Style | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Rectangle with Flat Top | Round with Flat Top |
| Lens Size | 2.06mm x 2.70mm | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 1.60mm x 0.80mm | 2.20mm Dia |
| Voltage - Forward (Vf) (Typ) | 2.2V Green, 2.1V Red | 2.2V Green, 2.1V Yellow | 2.2V Green, 1.95V Red | 2.2V Green, 2.2V Orange | 2.2V Green, 1.9V Red |
| Current - Test | 20mA Green, 20mA Red | 20mA Green, 20mA Yellow | 20mA Green, 20mA Red | 20mA Green, 20mA Orange | 20mA Green, 20mA Red |
| Viewing Angle | 170° | 120° | 120° | 120° | 120° |
| Mounting Type | Surface Mount | Surface Mount | Surface Mount | Surface Mount | Surface Mount |
| Wavelength - Dominant | 572nm Green, 626nm Red | 572nm Green, 586nm Yellow | 572nm Green, 621nm Red | 572nm Green, 604nm Orange | 569nm Green, 637nm Red |
| Wavelength - Peak | 570nm Green, 630nm Red | 570nm Green, 589nm Yellow | 570nm Green, 636nm Red | 570nm Green, 605nm Orange | 565nm Green, 645nm Red |
| Features | - | - | - | - | - |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
| Supplier Device Package | Chip LED | 0603 | 0603 | 0603 | 4-PLCC |
| Size / Dimension | 3.20mm L x 2.70mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 1.60mm L x 0.80mm W | 3.20mm L x 2.80mm W |
