Panasonic Electric Works HEV2AN-P-DC12V
- Part No.:
- HEV2AN-P-DC12V
- Manufacturer:
- Panasonic Electric Works
- Category:
- Power Relays, Over 2 Amps
- Package:
- Datasheet:
-
HEV2AN-P-DC12V.pdf
- Description:
- RELAY GEN PURPOSE DPST 20A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HEV2AN-P-DC12V Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Panasonic Electric Works
- Series:
- HE-V
- Packaging:
- Tray
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 12VDC
- Contact Form:
- DPST-NO (2 Form A)
- Contact Rating (Current):
- 20 A
- Switching Voltage:
- 1000VDC - Max
- Load - Max Switching:
- 20000W
- Coil Current:
- 160 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- Sealed - Flux Protection
- Coil Insulation:
- Class F
- Must Operate Voltage:
- 8.4 VDC
- Must Release Voltage:
- 0.6 VDC
- Operate Time:
- 30 ms
- Release Time:
- 10 ms
- Operating Temperature:
- -40°C ~ 55°C
- Contact Material:
- Silver Nickel (AgNi)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
|
|

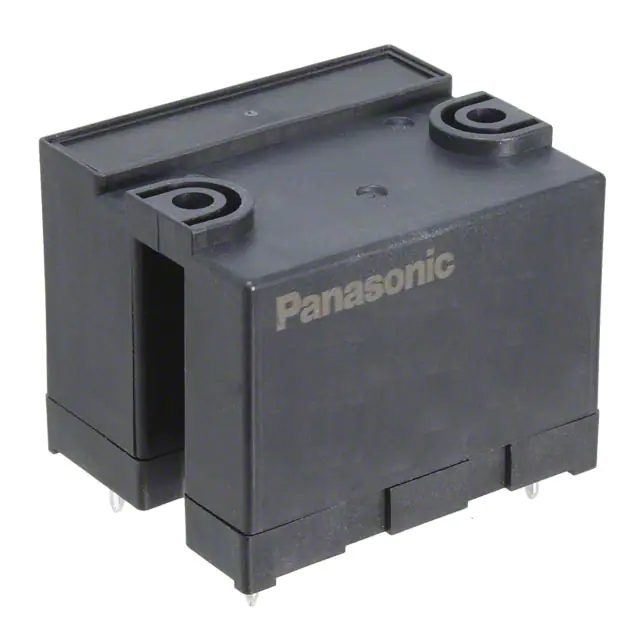

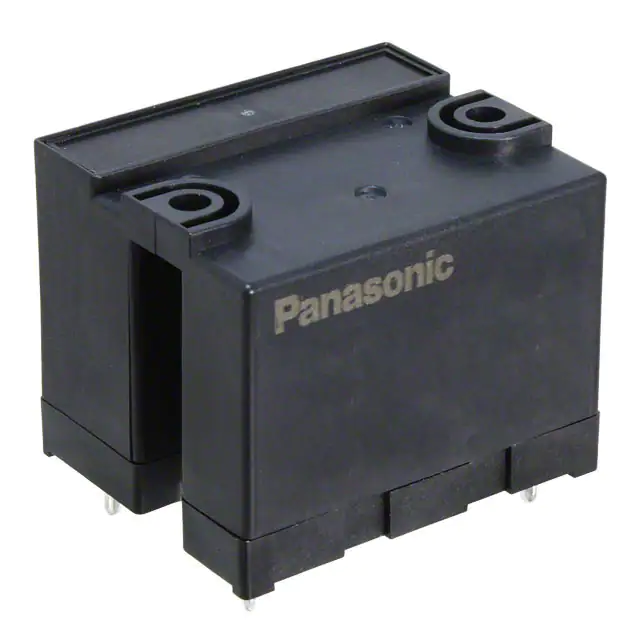

| Part Number | HEV2AN-P-DC12V | HEV2AN-P-DC6V | HEV2AN-P-DC24V | HEV2AN-P-DC15V | HEV2AN-P-DC9V |
| Manufacturer | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works | Panasonic Electric Works |
| Series | HE-V | HE-V | HE-V | HE-V | HE-V |
| Packaging | Tray | Tray | Tray | Tray | Tray |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 6VDC | 24VDC | 15VDC | 9VDC |
| Contact Form | DPST-NO (2 Form A) | DPST-NO (2 Form A) | DPST-NO (2 Form A) | DPST-NO (2 Form A) | DPST-NO (2 Form A) |
| Contact Rating (Current) | 20 A | 20 A | 20 A | 20 A | 20 A |
| Switching Voltage | 1000VDC - Max | 1000VDC - Max | 1000VDC - Max | 1000VDC - Max | 1000VDC - Max |
| Load - Max Switching | 20000W | 20000W | 20000W | 20000W | 20000W |
| Coil Current | 160 mA | 320 mA | 80 mA | 128 mA | 213 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | Sealed - Flux Protection | Sealed - Flux Protection | Sealed - Flux Protection | Sealed - Flux Protection | Sealed - Flux Protection |
| Coil Insulation | Class F | Class F | Class F | Class F | Class F |
| Must Operate Voltage | 8.4 VDC | 4.2 VDC | 16.8 VDC | 10.5 VDC | 6.3 VDC |
| Must Release Voltage | 0.6 VDC | 0.3 VDC | 1.2 VDC | 0.75 VDC | 0.45 VDC |
| Operate Time | 30 ms | 30 ms | 30 ms | 30 ms | 30 ms |
| Release Time | 10 ms | 10 ms | 10 ms | 10 ms | 10 ms |
| Operating Temperature | -40°C ~ 55°C | -40°C ~ 55°C | -40°C ~ 55°C | -40°C ~ 55°C | -40°C ~ 55°C |
| Contact Material | Silver Nickel (AgNi) | Silver Nickel (AgNi) | Silver Nickel (AgNi) | Silver Nickel (AgNi) | Silver Nickel (AgNi) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
