Standex-Meder Electronics HE12-1A69-02
- Part No.:
- HE12-1A69-02
- Manufacturer:
- Standex-Meder Electronics
- Category:
- Reed Relays
- Package:
- Datasheet:
-
HE12-1A69-02.pdf
- Description:
- RELAY REED SPST 3A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HE12-1A69-02 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Standex-Meder Electronics
- Series:
- HE
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Through Hole
- Coil Voltage:
- 12VDC
- Contact Form:
- SPST-NO (1 Form A)
- Contact Rating (Current):
- 3 A
- Switching Voltage:
- 10000VAC, 10000VDC - Max
- Coil Current:
- 46.2 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- PC Pin
- Seal Rating:
- -
- Must Operate Voltage:
- 9 VDC
- Must Release Voltage:
- 1 VDC
- Operate Time:
- 3 ms
- Release Time:
- 1.5 ms
- Operating Temperature:
- -20°C ~ 70°C
- Contact Material:
- -

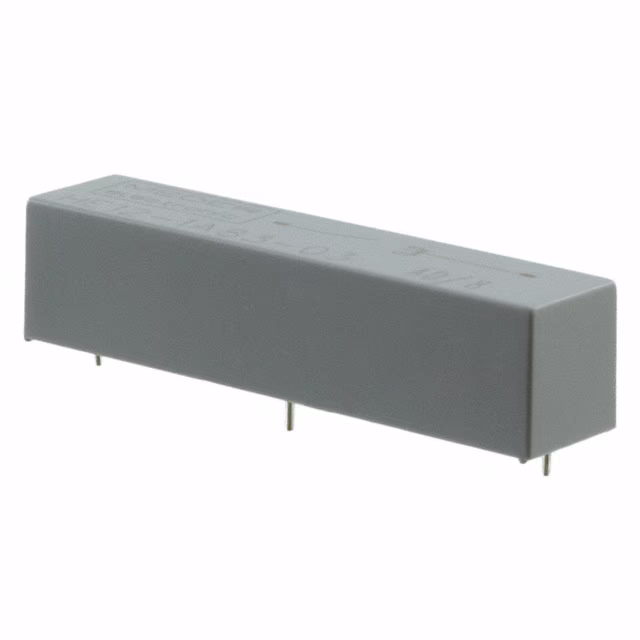

| Image |  |
 |
|
 |
| Part Number | HE12-1A69-02 | HE12-1A83-02 | HE12-1B83 | HE12-1A83-03 |
| Manufacturer | Standex-Meder Electronics | Standex-Meder Electronics | Standex-Meder Electronics | Standex-Meder Electronics |
| Series | HE | HE | HE | HE |
| Packaging | Bulk | Bulk | Bulk | Tube |
| Product Status | Active | Active | Active | Active |
| Mounting Type | Through Hole | Through Hole | Through Hole | Through Hole |
| Coil Voltage | 12VDC | 12VDC | 12VDC | 12VDC |
| Contact Form | SPST-NO (1 Form A) | SPST-NO (1 Form A) | SPST-NC (1 Form B) | SPST-NO (1 Form A) |
| Contact Rating (Current) | 3 A | 3 A | 3 A | 3 A |
| Switching Voltage | 10000VAC, 10000VDC - Max | 7500VAC, 7500VDC - Max | 7500VAC, 7500VDC - Max | 7500VAC, 7500VDC - Max |
| Coil Current | 46.2 mA | 46.2 mA | 30 mA | 46.2 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - |
| Termination Style | PC Pin | PC Pin | PC Pin | PC Pin |
| Seal Rating | - | - | - | - |
| Must Operate Voltage | 9 VDC | 9 VDC | 9 VDC | 9 VDC |
| Must Release Voltage | 1 VDC | 2 VDC | 1 VDC | 1 VDC |
| Operate Time | 3 ms | 3 ms | 3 ms | 3 ms |
| Release Time | 1.5 ms | 1.5 ms | 1.5 ms | 1.5 ms |
| Operating Temperature | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C | -20°C ~ 70°C |
| Contact Material | - | - | - | - |
