TE Connectivity Aerospace, Defense and Marine HC-3/12VDC
- Part No.:
- HC-3/12VDC
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Category:
- Power Relays, Over 2 Amps
- Package:
- Description:
- RELAY GEN PURPOSE SPDT 18A 12V
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
HC-3/12VDC Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- TE Connectivity Aerospace, Defense and Marine
- Series:
- HC, KILOVAC
- Packaging:
- Bulk
- Product Status:
- Active
- Mounting Type:
- Panel Mount
- Coil Voltage:
- 12VDC
- Contact Form:
- SPDT (1 Form C)
- Contact Rating (Current):
- 18 A
- Switching Voltage:
- 3500VDC - Max
- Load - Max Switching:
- -
- Coil Current:
- 150 mA
- Coil Type:
- Non Latching
- Features:
- -
- Termination Style:
- Solder Turret
- Seal Rating:
- -
- Coil Insulation:
- -
- Must Operate Voltage:
- 8 VDC
- Must Release Voltage:
- 0.5 VDC
- Operate Time:
- 6 ms
- Release Time:
- 6 ms
- Operating Temperature:
- -55°C ~ 125°C
- Contact Material:
- Tungsten (W)
- Relay Type:
- General Purpose
- Grade:
- -
- Qualification:
- -
| Image |  |
 |
 |
 |
 |

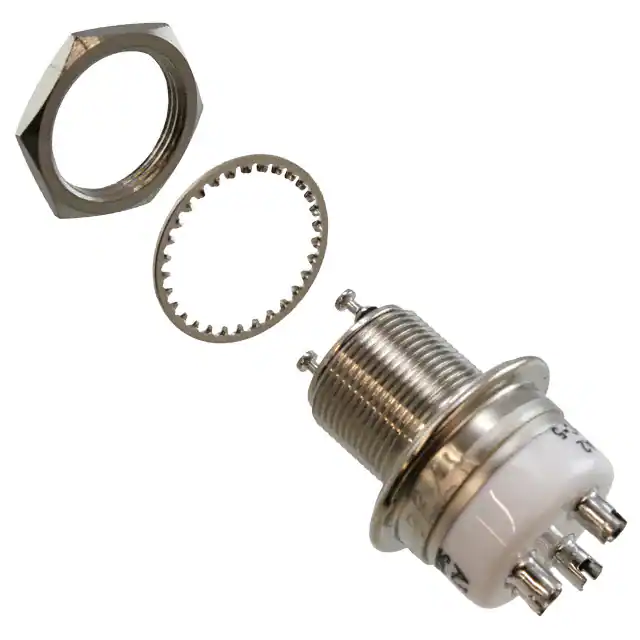

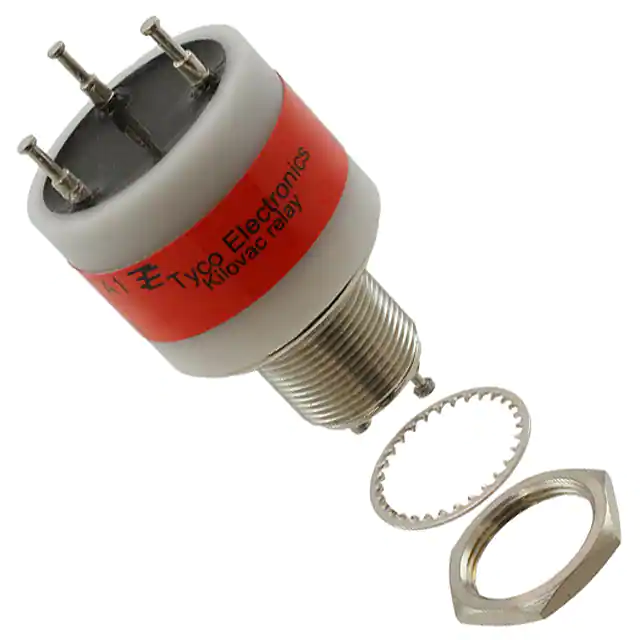

| Part Number | HC-3 | HC-3/12VDC | HC-5 | HC-2 | HC-4 |
| Manufacturer | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine | TE Connectivity Aerospace, Defense and Marine |
| Series | HC, KILOVAC | HC, KILOVAC | HC-5, KILOVAC | HC, KILOVAC | HC, KILOVAC |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Coil Voltage | 26.5VDC | 12VDC | 26.5VDC | 26.5VDC | 26.5VDC |
| Contact Form | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) | SPDT (1 Form C) |
| Contact Rating (Current) | 18 A | 18 A | 8 A | 25 A | 15 A |
| Switching Voltage | 3500VDC - Max | 3500VDC - Max | - | - | - |
| Load - Max Switching | - | - | - | - | - |
| Coil Current | 79.1 mA | 150 mA | 79.1 mA | 79.1 mA | 79.1 mA |
| Coil Type | Non Latching | Non Latching | Non Latching | Non Latching | Non Latching |
| Features | - | - | - | - | - |
| Termination Style | Solder Turret | Solder Turret | Solder Turret | Solder Turret | Solder Turret |
| Seal Rating | - | - | - | Sealed - Vacuum | - |
| Coil Insulation | - | - | - | - | - |
| Must Operate Voltage | 16 VDC | 8 VDC | 16 VDC | 16 VDC | 16 VDC |
| Must Release Voltage | 1 VDC | 0.5 VDC | 1 VDC | 1 VDC | 1 VDC |
| Operate Time | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms |
| Release Time | 6 ms | 6 ms | 6 ms | 6 ms | 6 ms |
| Operating Temperature | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C | -55°C ~ 125°C |
| Contact Material | Tungsten (W) | Tungsten (W) | - | - | Tungsten (W) |
| Relay Type | General Purpose | General Purpose | General Purpose | General Purpose | General Purpose |
| Grade | - | - | - | - | - |
| Qualification | - | - | - | - | - |
