Phoenix America H9-0100-0375-05-A-N-A-F-A-X
- Part No.:
- H9-0100-0375-05-A-N-A-F-A-X
- Manufacturer:
- Phoenix America
- Category:
- Encoders - Industrial
- Package:
- Datasheet:
-
H9-0100-0375-05-A-N-A-F-A-X.pdf
- Description:
- NON-UNIVERSAL HUB ENCODER KIT
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
H9-0100-0375-05-A-N-A-F-A-X Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Phoenix America
- Series:
- H9
- Packaging:
- Bulk
- Product Status:
- Active
- Encoder Type:
- Incremental
- Output Type:
- Quadrature (Incremental)
- Pulses per Revolution:
- 100
- Voltage - Supply:
- 4.75V ~ 5.5V
- Actuator Type:
- 3/8" Open Center
- Detent:
- No
- Built in Switch:
- No
- Mounting Type:
- Chassis Mount, Motors
- Orientation:
- Vertical
- Termination Style:
- Wire Leads
- Rotational Life (Cycles Min):
- -
| Image |  |
 |
|
 |
|

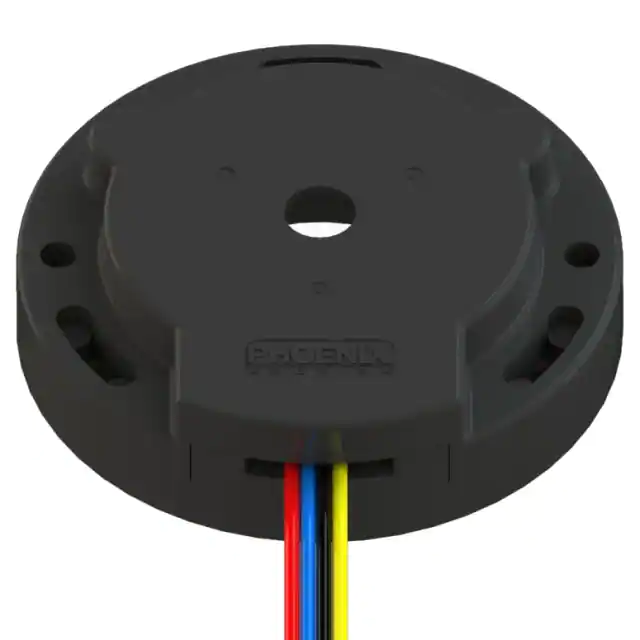

| Part Number | H9-0100-0375-05-A-N-A-F-A-X | H9-0256-0000-05-A-N-U-F-B-X | H9-0512-0000-05-A-N-U-F-B-X | H9-0512-0500-05-A-N-A-F-A-X | H9-1024-0000-05-A-N-U-F-B-X |
| Manufacturer | Phoenix America | Phoenix America | Phoenix America | Phoenix America | Phoenix America |
| Series | H9 | H9 | H9 | H9 | H9 |
| Packaging | Bulk | Bulk | Bulk | Bag | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Encoder Type | Incremental | Incremental | Incremental | Incremental | Incremental |
| Output Type | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) | Quadrature (Incremental) |
| Pulses per Revolution | 100 | 256 | 512 | 512 | 1024 |
| Voltage - Supply | 4.75V ~ 5.5V | 4.75V ~ 5.5V | 4.75V ~ 5.5V | 4.75V ~ 5.5V | 4.75V ~ 5.5V |
| Actuator Type | 3/8" Open Center | Open Center | Open Center | 1/2" Open Center | Open Center |
| Detent | No | No | No | No | No |
| Built in Switch | No | No | No | No | No |
| Mounting Type | Chassis Mount, Motors | Chassis Mount, Motors | Chassis Mount, Motors | Chassis Mount | Chassis Mount, Motors |
| Orientation | Vertical | Vertical | Vertical | Vertical | Vertical |
| Termination Style | Wire Leads | Wire Leads | Wire Leads | Wire Leads | Wire Leads |
| Rotational Life (Cycles Min) | - | - | - | - | - |
