Broadcom Limited AS22-M570-4U12
- Part No.:
- AS22-M570-4U12
- Manufacturer:
- Broadcom Limited
- Category:
- Encoders - Industrial
- Package:
- Description:
- ROTARY ENCODR INCREMENT 2048PPR
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
AS22-M570-4U12 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Broadcom Limited
- Series:
- AS22
- Packaging:
- Bulk
- Product Status:
- Active
- Encoder Type:
- Incremental
- Output Type:
- Differential Voltage
- Pulses per Revolution:
- 2048
- Voltage - Supply:
- 4.5V ~ 5.5V
- Actuator Type:
- Hole for Shaft
- Detent:
- No
- Built in Switch:
- No
- Mounting Type:
- Chassis Mount
- Orientation:
- User Selectable
- Termination Style:
- Connector
- Rotational Life (Cycles Min):
- -
| Image |  |
 |
|
|
|

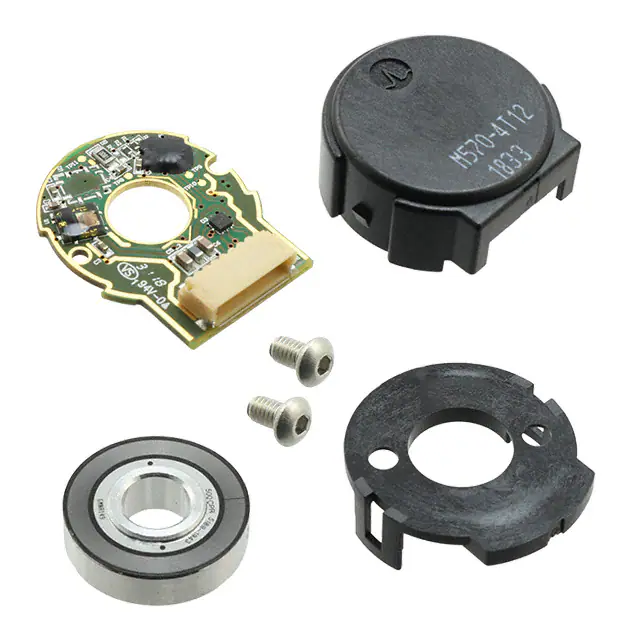

| Part Number | AS22-M570-4U12 | AS22-M570-4T12 | AS22-M530-5B12 | AS22-M570-4A12 | AS22-M560-4G12 |
| Manufacturer | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited | Broadcom Limited |
| Series | AS22 | AS22 | AS22 | AS22 | AS22 |
| Packaging | Bulk | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active | Active |
| Encoder Type | Incremental | Incremental | Incremental | Incremental | Incremental |
| Output Type | Differential Voltage | Differential Voltage | Differential Voltage | Differential Voltage | Voltage |
| Pulses per Revolution | 2048 | 2000 | 1000 | 500 | 360 |
| Voltage - Supply | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V | 4.5V ~ 5.5V |
| Actuator Type | Hole for Shaft | Hole for Shaft | Hole for Shaft | Hole for Shaft | Hole for Shaft |
| Detent | No | No | No | No | No |
| Built in Switch | No | No | No | No | No |
| Mounting Type | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount | Chassis Mount |
| Orientation | User Selectable | User Selectable | User Selectable | User Selectable | User Selectable |
| Termination Style | Connector | Connector | Connector | Connector | Connector |
| Rotational Life (Cycles Min) | - | - | - | - | - |
