Omron Automation and Safety H7BX-A AC100-240
- Part No.:
- H7BX-A AC100-240
- Manufacturer:
- Omron Automation and Safety
- Category:
- Counters, Hour Meters
- Package:
- Description:
- COUNTER LCD 6 CHAR 100-240V PNL
- Quantity:
Unit Price:$0
Ext Price:$0
- Payment:
- Shipping:
H7BX-A AC100-240 Information
- Specifications
- Comparison
- Tags
- Product attributes
- Attribute value
- Manufacturer:
- Omron Automation and Safety
- Series:
- H7BX
- Packaging:
- Bulk
- Product Status:
- Active
- Type:
- Preset, Totalizer
- Operating Mode:
- Up, Down, Command, Individual, Quadrature
- Count Rate:
- 30Hz, 5kHz
- Time Format:
- -
- Number of Characters Per Row:
- 6, 6
- Display Type:
- LCD - Dual Color Characters, Backlight
- Display Characters - Height:
- 0.531" (13.50mm), 0.354" (9.00mm)
- Input Type:
- No Voltage, Voltage
- Output Type:
- Relay, Solid State
- Voltage - Supply:
- 100 ~ 240VAC
- Reset:
- External, Front Panel, Programmable
- Panel Cutout Dimensions:
- Square - 68.00mm x 68.00mm
- Mounting Type:
- Panel Mount
- Termination Style:
- Screw Terminal
- Ingress Protection:
- IP54 - Dust Protected, Water Resistant
| Image |  |
 |
 |
|

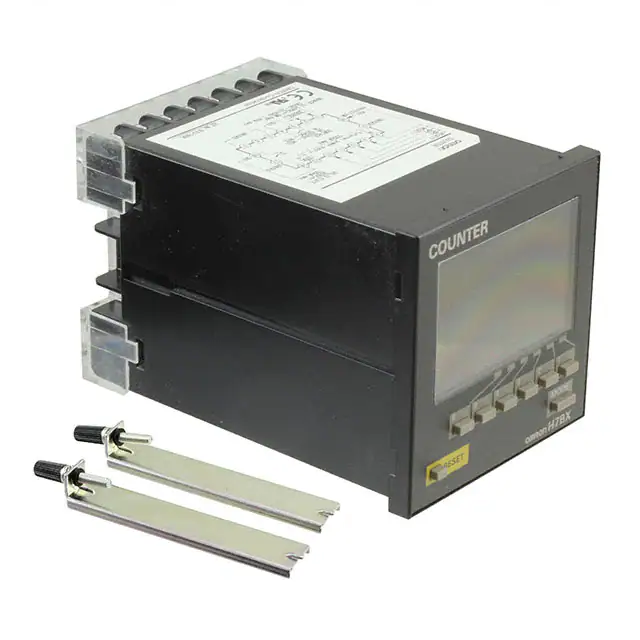

| Part Number | H7BX-A AC100-240 | H7BX-AWD1 AC24/DC12-24 | H7BX-AD1 AC24DC1224 | H7BX-AW AC100-240 |
| Manufacturer | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety | Omron Automation and Safety |
| Series | H7BX | H7BX | H7BX | H7BX |
| Packaging | Bulk | Bulk | Bulk | Bulk |
| Product Status | Active | Active | Active | Active |
| Type | Preset, Totalizer | Preset, Tachometer, Totalizer | Preset, Totalizer | Preset, Tachometer, Totalizer |
| Operating Mode | Up, Down, Command, Individual, Quadrature | Up, Down, Command, Individual, Quadrature | Up, Down, Command, Individual, Quadrature | Up, Down, Command, Individual, Quadrature |
| Count Rate | 30Hz, 5kHz | 30Hz, 10kHz | 30Hz, 5kHz | 30Hz, 10kHz |
| Time Format | - | - | - | - |
| Number of Characters Per Row | 6, 6 | 6, 6 | 6, 6 | 6, 6 |
| Display Type | LCD - Dual Color Characters, Backlight | LCD - Dual Color Characters, Backlight | LCD - Dual Color Characters, Backlight | LCD - Dual Color Characters, Backlight |
| Display Characters - Height | 0.531" (13.50mm), 0.354" (9.00mm) | 0.531" (13.50mm), 0.354" (9.00mm) | 0.531" (13.50mm), 0.354" (9.00mm) | 0.531" (13.50mm), 0.354" (9.00mm) |
| Input Type | No Voltage, Voltage | No Voltage, Voltage | No Voltage, Voltage | No Voltage, Voltage |
| Output Type | Relay, Solid State | Relay, Solid State | Relay, Solid State | Relay, Solid State |
| Voltage - Supply | 100 ~ 240VAC | 24VAC, 12 ~ 24VDC | 24VAC, 12 ~ 24VDC | 100 ~ 240VAC |
| Reset | External, Front Panel, Programmable | External, Front Panel, Programmable | External, Front Panel, Programmable | External, Front Panel, Programmable |
| Panel Cutout Dimensions | Square - 68.00mm x 68.00mm | Square - 68.00mm x 68.00mm | Square - 68.00mm x 68.00mm | Square - 68.00mm x 68.00mm |
| Mounting Type | Panel Mount | Panel Mount | Panel Mount | Panel Mount |
| Termination Style | Screw Terminal | Screw Terminal | Screw Terminal | Screw Terminal |
| Ingress Protection | IP54 - Dust Protected, Water Resistant | IP54 - Dust Protected, Water Resistant | IP54 - Dust Protected, Water Resistant | IP54 - Dust Protected, Water Resistant |
